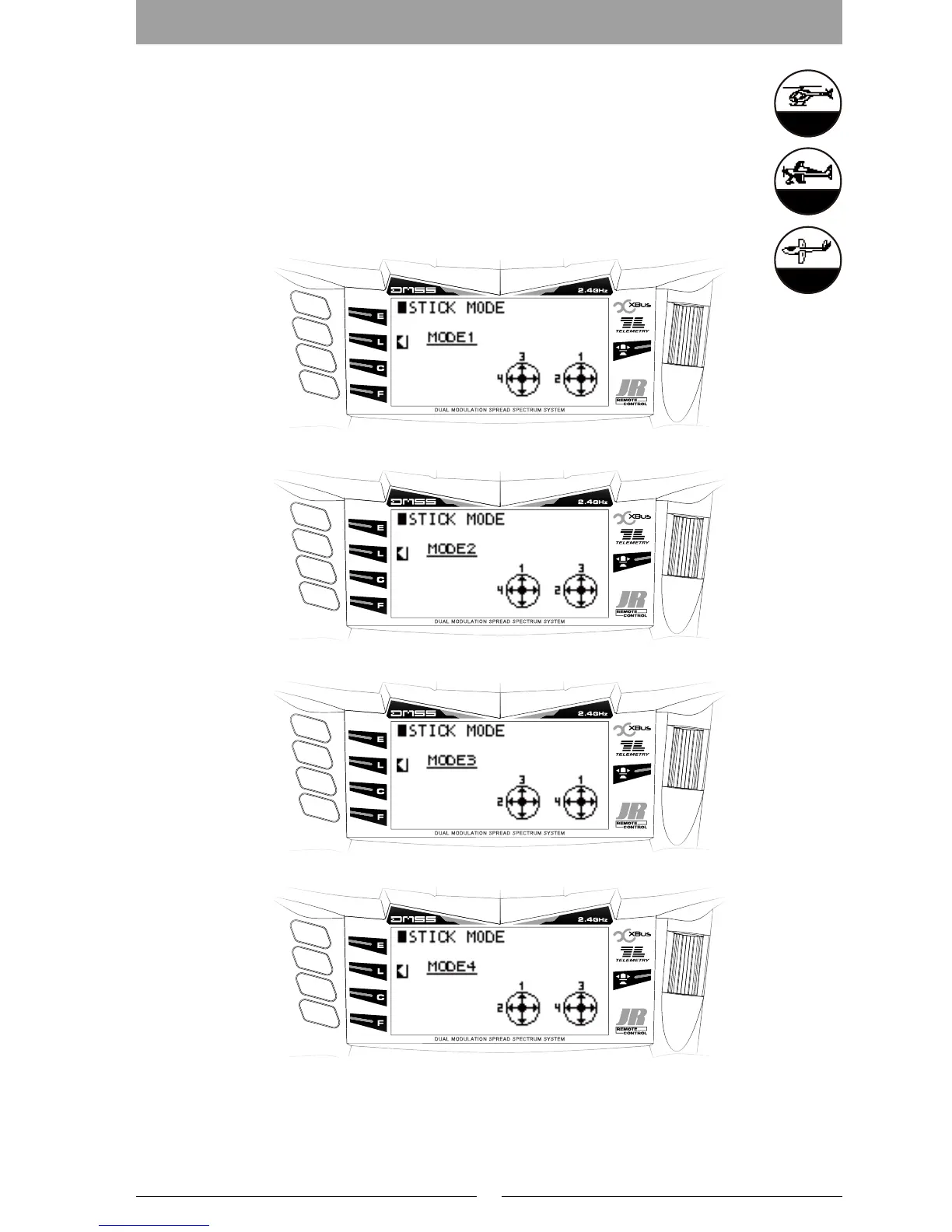

▋Stick▋Mode【STICK▋MODE】

▋▋Function▋Explanation

This function changes the stick mode between Mode 1, Mode 2, Mode 3 & Mode 4. In the USA,

Mode-2 is commonly used. In Japan, Mode 1 is the most common conguration.

▋▋Setting▋Method

The initial setting is determined by the mode the radio was in when purchased. This function

can be used to change this mode.

▋▋Caution▋Note

⿟ If the throttle stick position to be changed (between Mode 1 & Mode 2 or between Mode 3 & Mode 4), the

throttle stick and elevator stick Spring location requires changing.

⿟ Be sure to Calibrate both stick gimbals after changing the Stick Mode.

RefertothePage76"StickCalibration(STICKCALIBRATION)"
