Sub▋Trim【SUB▋TRIM
Function▋Explanation
This allows ne trimming of the servos attached to each channel. This trim should be used as
a ne adjustment when the servo horn mounting angle is not 90 degrees with regard to the
linkage.
Note that if large amounts of sub trim is used, it will affect the maximum deflection of the
servo. It is therefore recommended to use only small values here.
Setting▋Method
Rotate the dial to move to and select the channel that you wish to set (inverse display). Then
press the dial to display the setting box, and carry out the numerical value setting.
The channel names on the screen will di󱐯er according to the model type.
Caution▋Note
Operate the servos carefully to conrm the control surfaces move as expected before ying.
Function▋List
Helicopter
Airplane
DANGER
WARNING
CAUTION
Glider

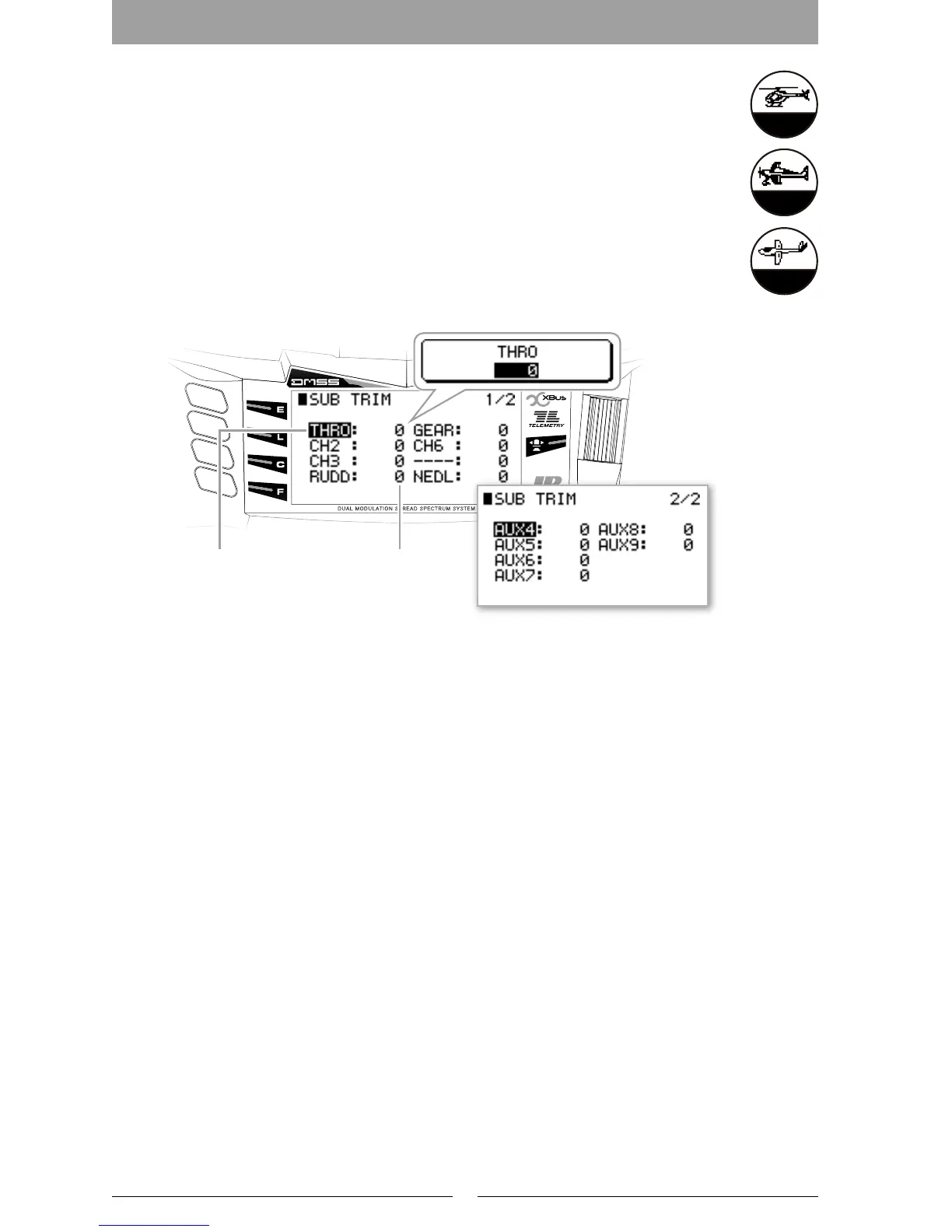

Sub Trim amount
This screen is for Helicopter type.
Select the channel.
