72

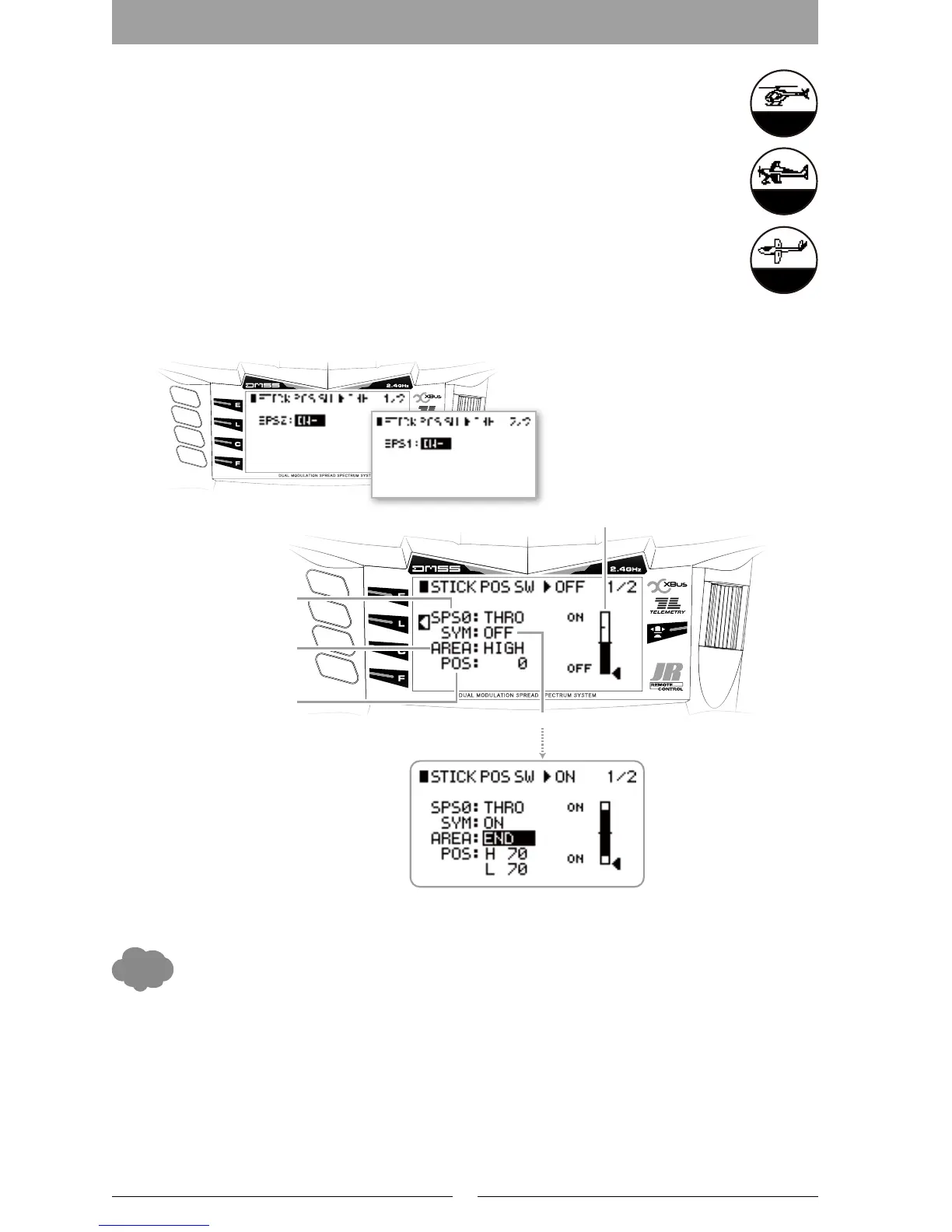

▋▋Stick▋Position▋Switch▋【STICK▋POSITION▋SW】
▋▋Function▋Explanation
This is a convenient function that allows switching (ON/OFF) of virtual switches using stick
operation. Virtual switches can be programmed to any stick position, and then used to switch
various functions On and O.
This function can be used as a virtual switch for Programmable Mixers, turning the mix on or
o. Additionally, a stick position switch can be used start or stop a timer.
▋▋Setting▋Method
Two virtual switch systems are available. All of the switches are initially set to “INH” Once
activated, the ON/OFF boundary line can be set to any desired position.
It is also possible to select the Virtual Switch to turn ON/OFF or OFF/ON, Further, it is possible
to allocate the stick so each side of center turns ON/OFF or OFF/ON. It is also possible to set a
position in between to turn the virtual switch ON/OFF or OFF /ON, with a variable dead Zone in
the middle.
In various functions, by choosing “SW SEL”, and selecting SPS0 〜 SPS 5, it is possible to Turn functions ON/
OFF using stick control.
▋▋Caution▋Note
Actually operate the servos and carefully conrm the settings before ying.
Helicopter
Airplane
Center Range
Range Specification
for Switching “ON”
Domain Width Setting
Switch Name
and Used Stick
White is the “ON” range, and black
is the “OFF” range. Depending on
the switch that is used, the Monitor
screen direction will change.
If SYM is set to ON, the range will appear in
the neighborhood of the neutral position.
