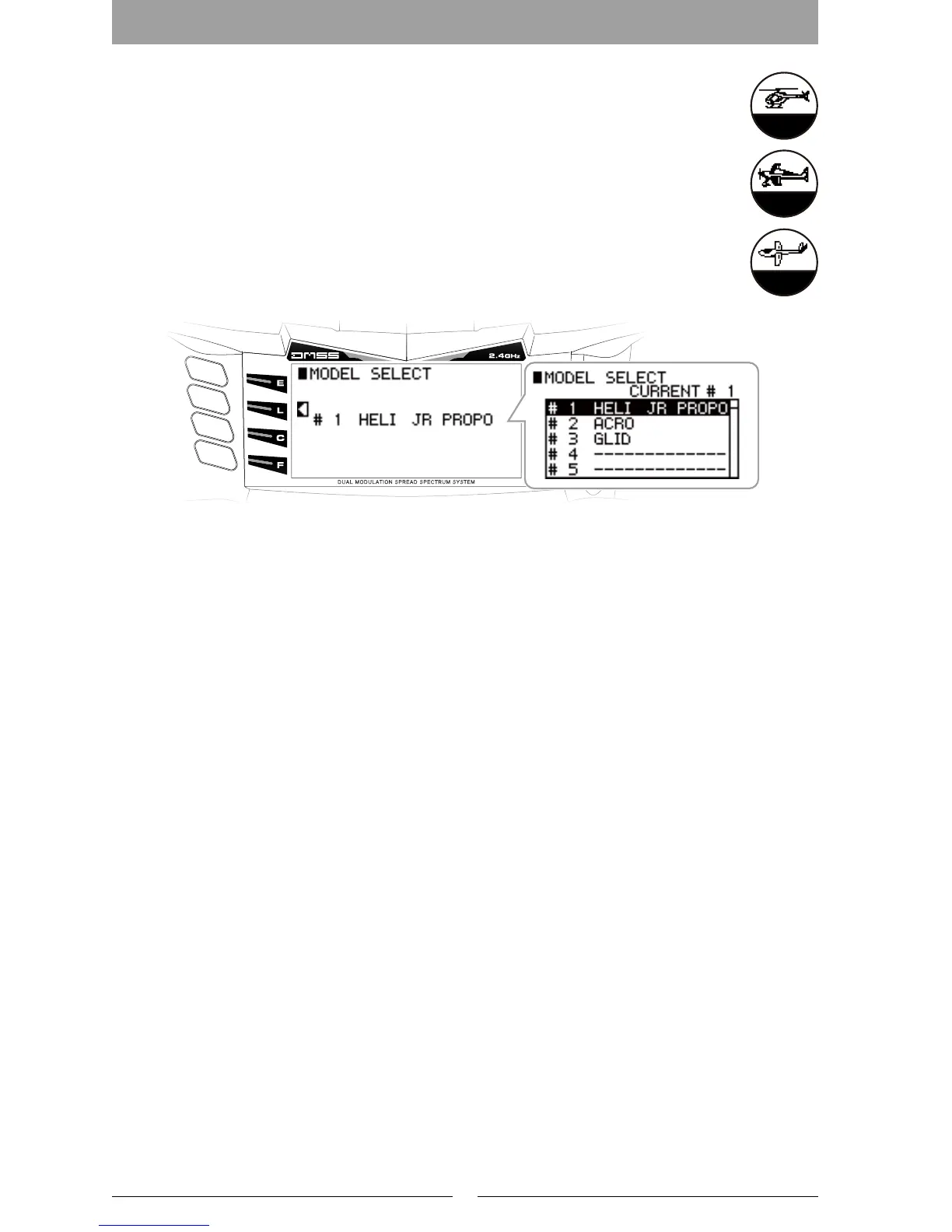

▋MODEL▋SELECT【MODEL▋SELECT】

▋▋Function▋Explanation

Here it is possible to start setting up a new model and switch between existing models.

Up to 30 unique models can be stored in this transmitter.

▋▋Setting▋Method

For safety reasons, a screen initially appears confirming that you wish to stop radio wave

transmission. Select “YES” to continue to this function screen.

Next, the current Model No. and Model Name will be displayed. Select this item and press the

dial.

Now rotate the dial to nd the model you wish to switch to and press the dial to select it.

When creating a new model, selecting a name containing “----” will start initial parameter

navigation allowing a new model to be created.
