▋Flaperon▋Mixing【FLAPERON▋MIX】
▋▋Function▋Explanation

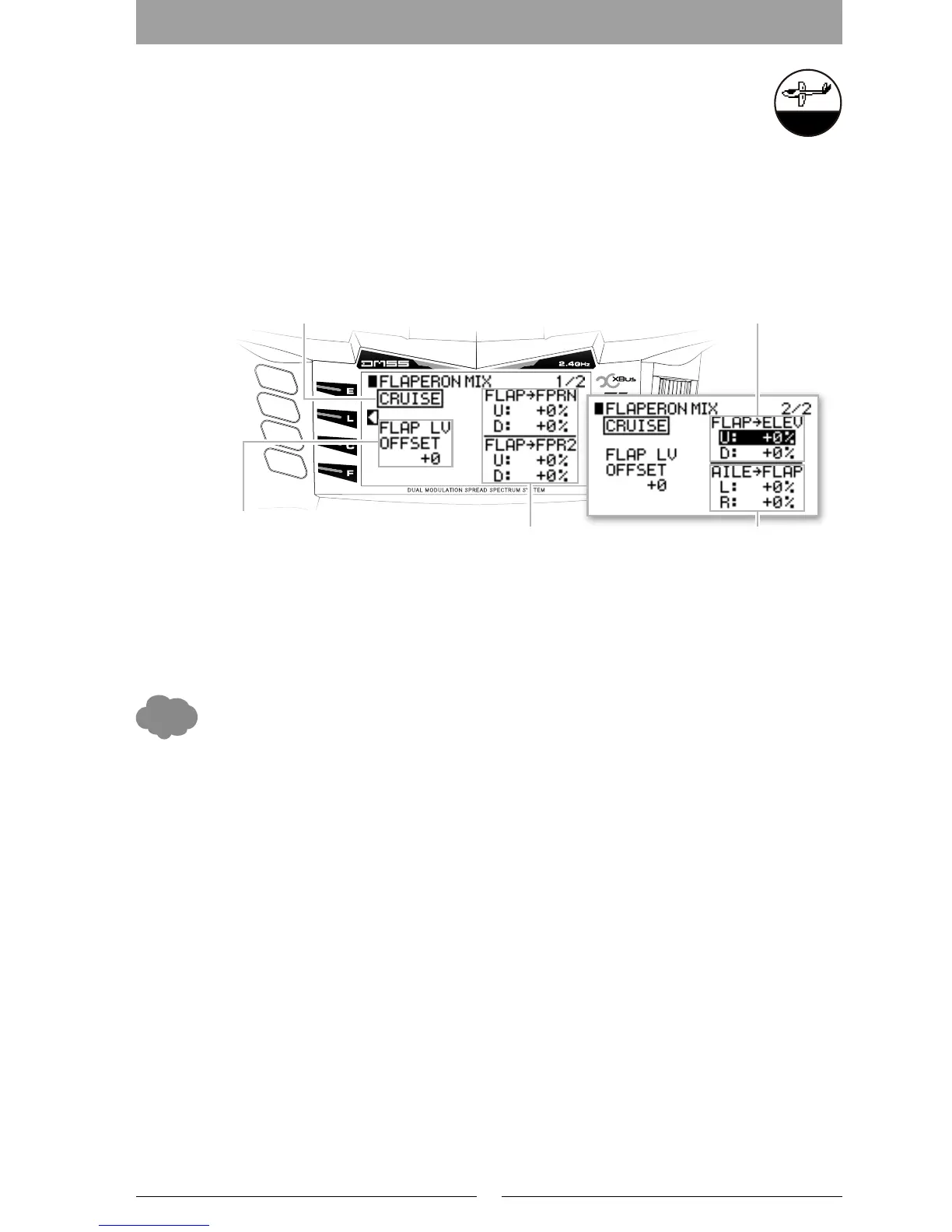

This function allows the setting of Flaperon mixing.
"Aileron -> Flap Mixing" ・・・・・・・・ This mixes from Aileron to flap, to use the flaps as Ailerons -
therefore the roll rate can be increased.
"Flap -> Flaperon Mixing" ・・・・・・・ This mixes from Flap to Aileron, to use the Ailerons as Flaps.
"Flap -> Elevator Mixing" ・・・・・・・・ This mixes from Flap to Elevator, to correct Pitch variation caused
by ap extension.
▋▋Setting▋Method
⿟ "Aileron -> Flap Mixing"
It is possible to set right and left control surfaces independently for each ight mode.
⿟ "Flap -> Flaperon Mixing", "Flap -> Elevator Mixing"
It is possible to set right and left control surfaces independently on each ight mode.
⿟ Flap Lever O󱐯set (FLAP LV OFFSET)
If a “LEVER” is set as the Input Device for the Flap channel, the Lever’s center (neutral position) can be o󱐯set if
necessary.
ダイヤル
TIPS
調整ポイント表示
ポイント接続を曲線に変更 スティック入力位置と出力位置の数値表示
現在の
フライトモード位置
各調整ポイントの
入力位置と出力位置
ポイントの
追加と削除
注意：
グラフはホバリン
グスロットルやス
ロットルトリムで
変化する場合もあ
ります。
カーブをコピー
⿟ Regarding this Mixing function from Flap, since the amount of travel is based on the Flap channel mixing from
a Slide lever or switch, an o󱐯set amount for the Flap trim or Camber is not included.
⿟ The Initial setting for the Flap rate is set to 0%. When mixing from Flaps, Set the Flap travel amount using the
Flap Rate rst, before setting this mix.
▋▋Caution▋Note
⿟ Actually operate the servos and carefully conrm the settings before ying.
Helicopter
Airplane
DANGER
WARNING
CAUTION
Glider
Function▋List
Flap Movement Amount
Correction Amount set to the ElevatorsCurrent Flight Mode
Aileron Movement Amount
In the situation where the flap
operation is being carried out
using a lever, it will be possible to
offset the mixing reference point.
