▋Tail▋Curve【TAIL▋CURVE】
▋▋Function▋Explanation
This is the mixing between the pitch and the tail servo. It is also known as revolution mixing. It
allows setting of the mixing amounts separately up and down from the hovering point. Intermediate points can
also be established in each direction, so that setting can be freely carried out. In addition, Mixing Rate setting,
which is convenient for detailed adjustment of stunt positions, will also be possible. A maximum of 5 types of
setting curves can be set in each Flight Mode.
▋▋Setting▋Method
The numerical values of each point can be set. The initial input setting points are three points set to the slow,
center, and high sides. To add a point, set the stick to the desired position and press the “ADD” key. In the
situation where the point is to be deleted, this should be carried out using the “DEL” key. For the adjustment,
Set the point by stick and change the value by scrolling the dial for “IN” or “OUT”.
▋▋In▋Put▋Pitch▋(PITCH)
The pitch information that is input to the mixer can be selected from the following two types.
① “NORM”: This is the stick position referenced to the curve set using the Pitch Curve function.
② “ORIG”: This is the stick position itself not considering the pitch curve.
MIXING RATE ON STUNT MODE (RATE)
This display will be shown when the Flight Mode is set to a stunt position. Even though the graph and output
gures will remain the same, an action will be implemented that reduces the actual mixing amount by the
multiplier described below. This is the stunt mode common multiplier.
"1/1": × 1
"1/2": × 0.5
"1/4": × 0.25
"1/10": × 0.1
▋▋Caution▋Note
When using a Tail Lock Gyro (Heading Lock), this function will not be required since the tail will be
automatically corrected. Each of the setting values must be set to zero.

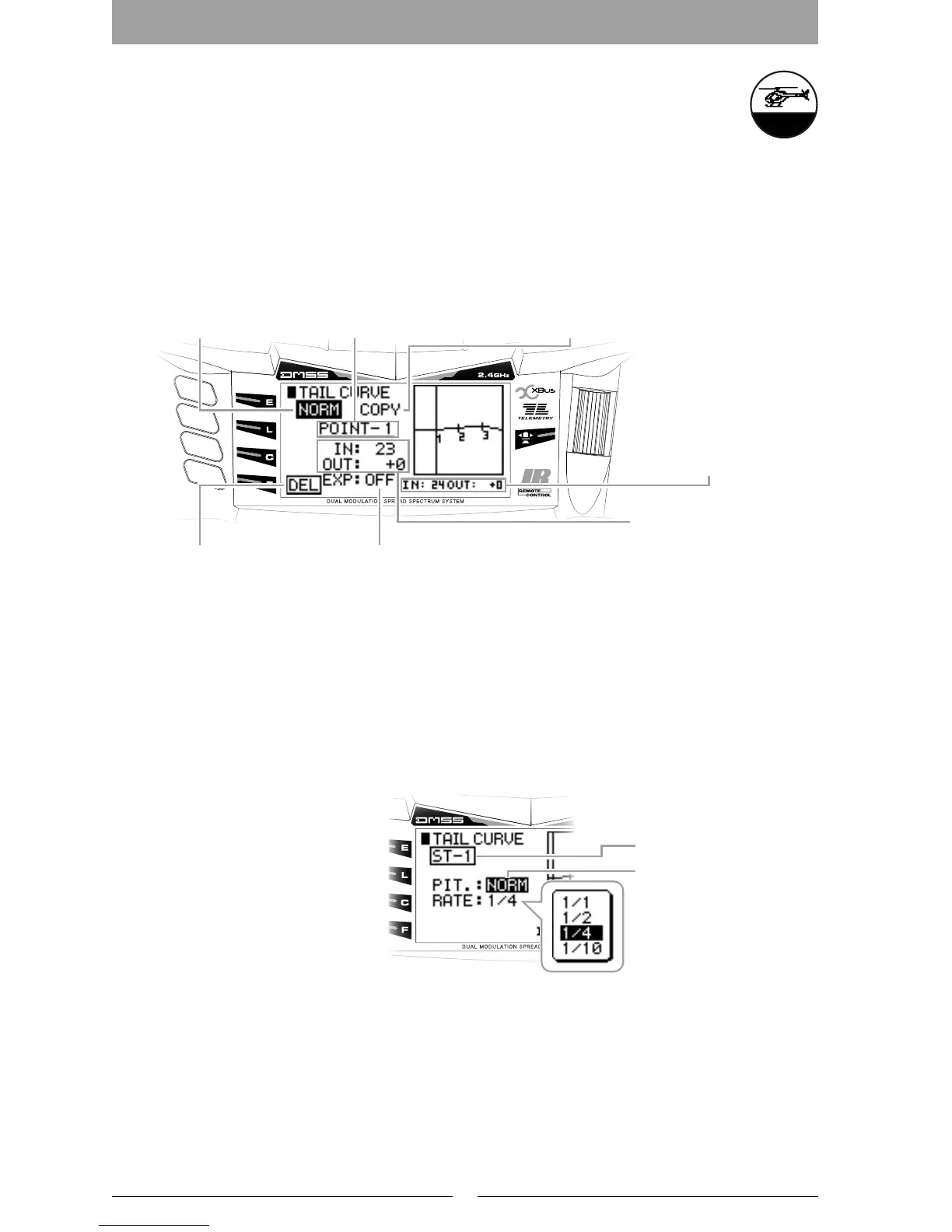

Adjusting point DisplayCurrent Flight Mode position
Point addition and deletion This changes the point connections to a Curve.
Numerical Display of the
Stick input Position and
output position
Each Adjusting point input
Position and output position
Copy function
Current Flight Mode Position
Pitch Input Correction
Mixing Rate
Adjusting point DisplayCurrent Flight Mode position
Point addition and deletion This changes the point connections to a Curve.
Numerical Display of the
Stick input Position and
output position
Each Adjusting point input
Position and output position
Copy function
