35
Swash▋Mixing【SWASH▋MIX
Function▋Explanation
This function sets the mixing relating to the swash plate and swash plate servos (1-4) to allow
coordinated control of the helicopter. This swash mixing is essential for helicopters that incorporate CCPM
systems. CCPM is a type of pitch mixing in which the servos are directly linked to the swash plate. In this
transmitter, 7 types of swash plates can be selected. Match the SWASH TYPE” in the System List with your
helicopters servo conguration. An E-ring function is also incorporated that easily limits the swash maximum
angle.
Setting▋Method
Set the “SWASH TYPE” according to the helicopter’s swash plate conguration. The “SWASH TYPE” selection is
in the System List, and should be chosen before proceeding to set the swash mix.

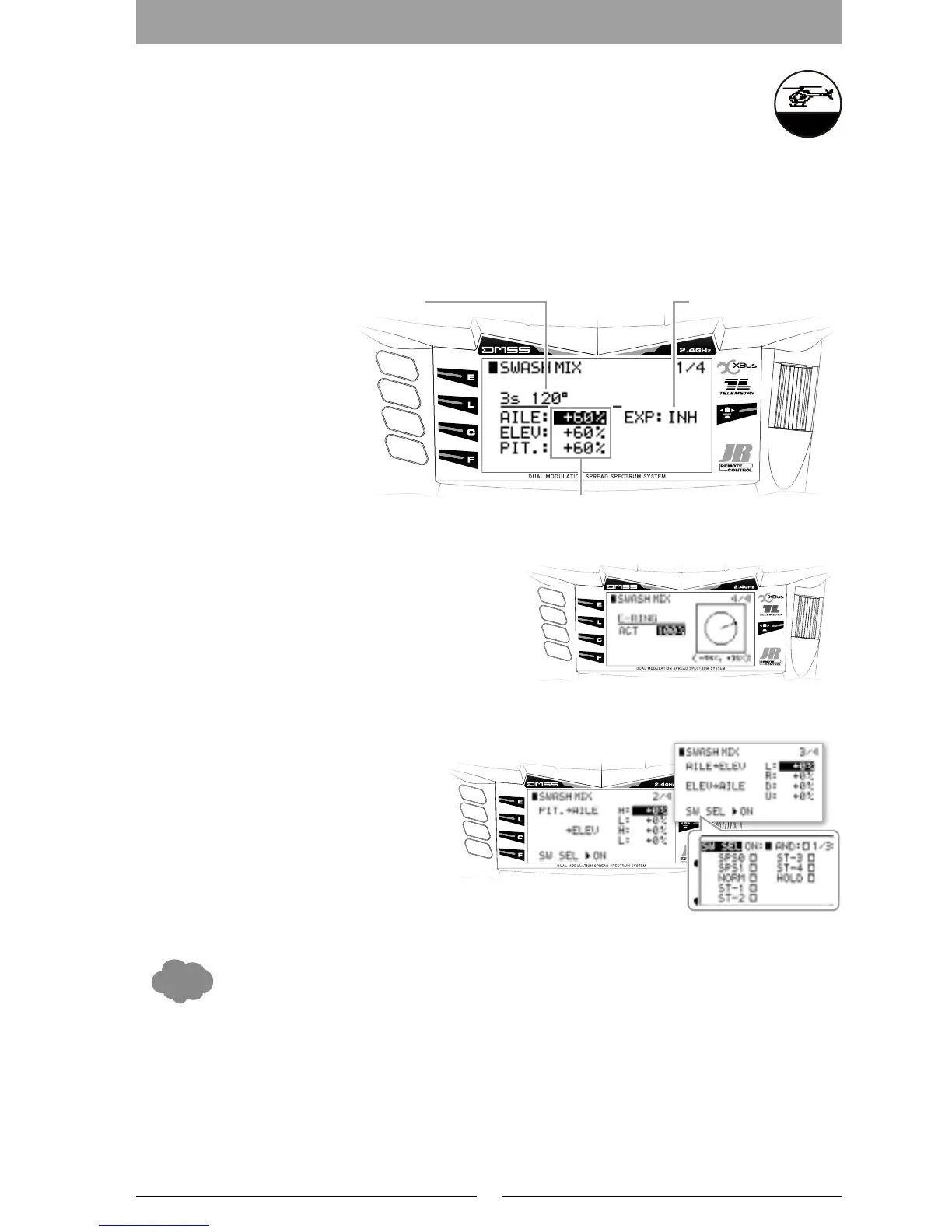

The default settings for the
Swash Mix are +60% on
Aileron, Elevator and Pitch.
If necessary, adjust the
mixing amount according to
the type of helicopter and
servo setup. Press the dial
to display the setting box,
and then set the direction
and the numerical value
adjustment.
Exponential Function (EXP)
By activating this function, the servo’s non-linear output is modied to be more linear in motion.
E-Ring Function (E-RING)
By activating this function, the e-ring electronically
corrects the swash to move in the same angle in all
directions. The operation of the stick and e-ring can be
confirmed on the graph. The diameter of the circle is
the swash tilt angle, which can be set as desired.
Correction mixing
PIT->AILE,->ELEV
This mix corrects tilt of the swashplate in the aileron
and elevator axis when the pitch stick is moved up and down. Adjustment of the mixing amount can be carried
out separately to the front and rear and to the left and right. The mix can be switched ON and OFF of using a
switch or ight modes as desired.
AILE->ELEV、ELEV->AILE
This is used to correct interactions where
aileron and elevator movement influence
each other. The aileron and elevator mutual
mixing amount can be separately adjusted.
The switching ON/OFF of the mixing on
this screen can be set using a switch or
ight modes as desired. It is also possible
to use TRIM INPUT to adjust the mix
during ight using a trim lever.
Trim Input Function (TRIM IN)
By using the Trim Input, it is possible to change the mix values using the Trim Lever. Therefore, it is possible to
easily adjust the mix during ight.
If the servo direction is incorrect, it is possible to set the mixing amount in a negative direction to achieve an
appropriate setting.
The setting value in this function should be between 0 to ± 125. If the mixing amount is too much and you are
not able to achieve the desire servo throw, adjust the servo horn hole position (with a practical range of 40-
70%) outwards to have more throw.
Caution▋Note
Actually operate the servos and carefully conrm the settings before ying.
Function▋List
Helicopter
Airplane
DANGER
WARNING
CAUTION
Glider
Correction mixing
E-Ring Function
Exponential FunctionSwash type
Mixing amount
ダイヤ
TIPS
調整ポイント表示
ポイント接続を曲線に変更 スティック入力位置と出力位置の数値表示
現在の
フライトモード位置
各調整ポイントの
入力位置と出力位置
ポイントの
追加と削除
注意:
グラフはホバリン
グスロットルやス
ロットルトリムで
変化する場合もあ
ります。
カーブをコピー
Function▋List
Correction mixing
E-Ring Function
Exponential FunctionSwash type
Mixing amount
Correction mixing
E-Ring Function
Exponential FunctionSwash type
Mixing amount
