▋TIMER【TIMER】
▋▋Function▋Explanation
This transmitter incorporates two Independent Timer systems as well as an Integrated Timer.
Each system has two types of timer . a count down timer and a stop watch timer. The timer can
be operated in Flight Modes and through free switch selection.
▋▋Setting▋Method
⿟ DOWN TIMER
Initially, the timer function is inhibited - “INH”. Select (INH) and press the dial and select the
“Down Timer”. The default value for the DOWN timer is 10:00 - 10minutes and 00 seconds. The
Down Timer can be set to a maximum of 59 minutes 59 seconds. As the timer counts down,
an alert signal will sound every 10 seconds for times of 1 minute or less, and every second
for times of 10 seconds or less. From zero, the timer will start counting up and “+” will be
displayed.
⿟ Stop Watch Timer (UP TIMER)
Initially, the “STOP” watch up timer function is inhibited - “INH”. To activate, select (INH) and press the dial to
select the “STOP” timer. The default settings for the STOP timer is 00:00 – 0 minutes and 0 seconds. The STOP
Timer can run to a maximum of 59 minutes 59 seconds and then returns to 0 minutes, 0 seconds. While the
timer is running, a signal will sound every minute.
⿟ Starting and Stopping the timer (START/STOP)
Function can be allocated to di󱐯erent switches to start or stop the timer. For example, the start switch could be
allocated to the SPS switch on the throttle then the O󱐯 switch to the trainer switch. Alternatively, it is possible
not to switch o󱐯 the timer by not allocating the timer switch. the SPS switch could be used to turn the timer “ON”
and “OFF” o󱐯 the timer switches are described below.
If on selection is made for START SW or STOP SW then the Timer Function can be started and stopped by
using the F(function) button when either TIMER function is highlight by rotating the dial.
"T" will appear next to the F(function) button.
⿟ Integrated Timer (INTEGRATE TIMER) time reset
The Integrated Time is recorded individually for each model. When this time exceeds 100 hours, the time will
return to zero. This can be used as a reference for maintenance of each aircraft. This time can also be reset to
zero - set the cursor on the Integrated timer and press the dial to reset.
ダイヤル
TIPS
調整ポイント表示
ポイント接続を曲線に変更 スティック入力位置と出力位置の数値表示
現在の
フライトモード位置
各調整ポイントの
入力位置と出力位置
ポイントの
追加と削除
注意：
グラフはホバリン
グスロットルやス
ロットルトリムで
変化する場合もあ
ります。
カーブをコピー
⿟ It is possible to move from the Information and Timer screen to each timer function directly.
⿟ It is possible to reset the timer by pressing the CLR key after moving the cursor to the Timer display on the
Information and Timer screen.
Helicopter
Airplane
DANGER
WARNING
CAUTION
Glider

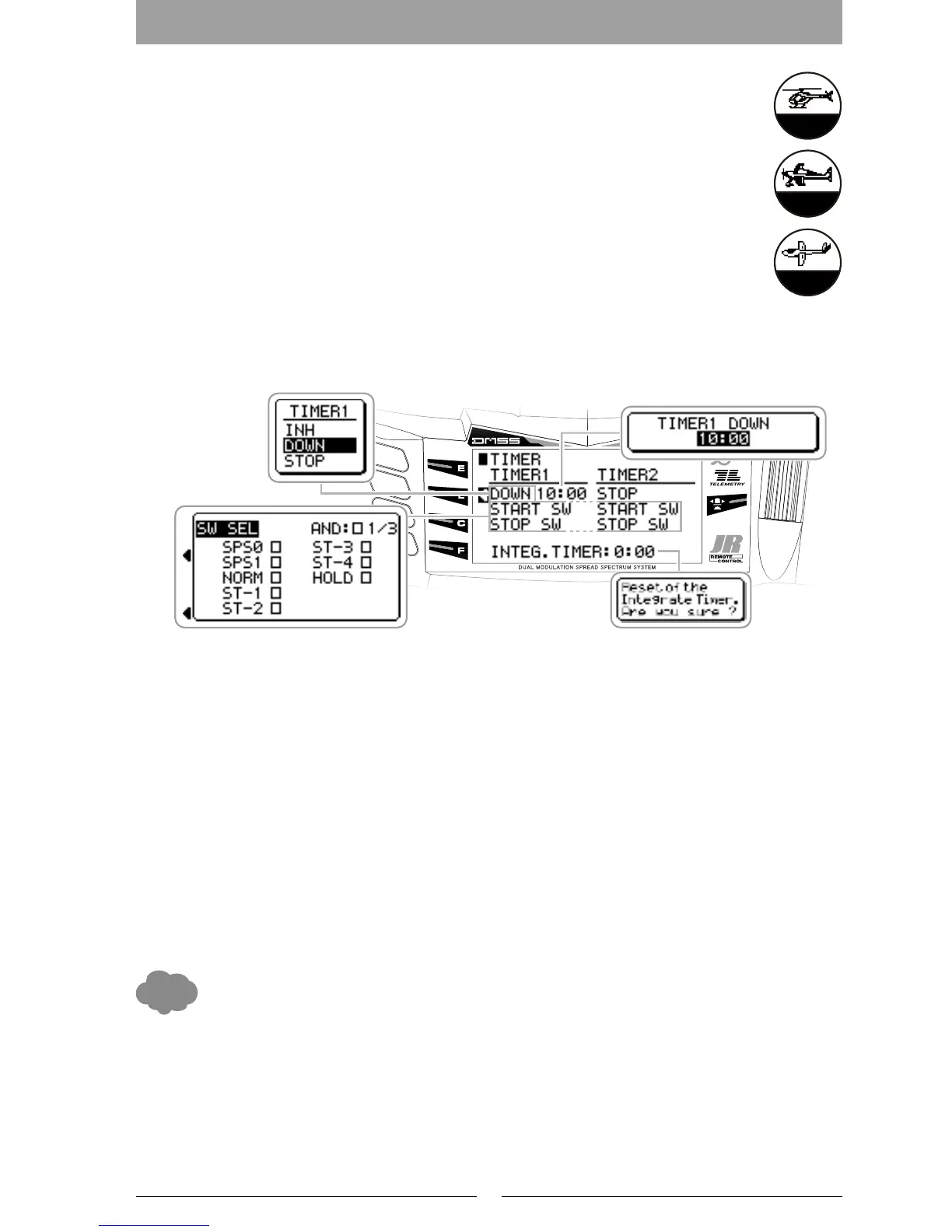

Function▋List
This selects the
Timer operation.
Integrated Timer time reset
Switch selection screen
Switch selection screen
This sets the Down Timer time.
※As an example, Set the Timer #1 as Down Timer, Set the Timer #2 as Stop watch
