JR XG 14 User Manual

43

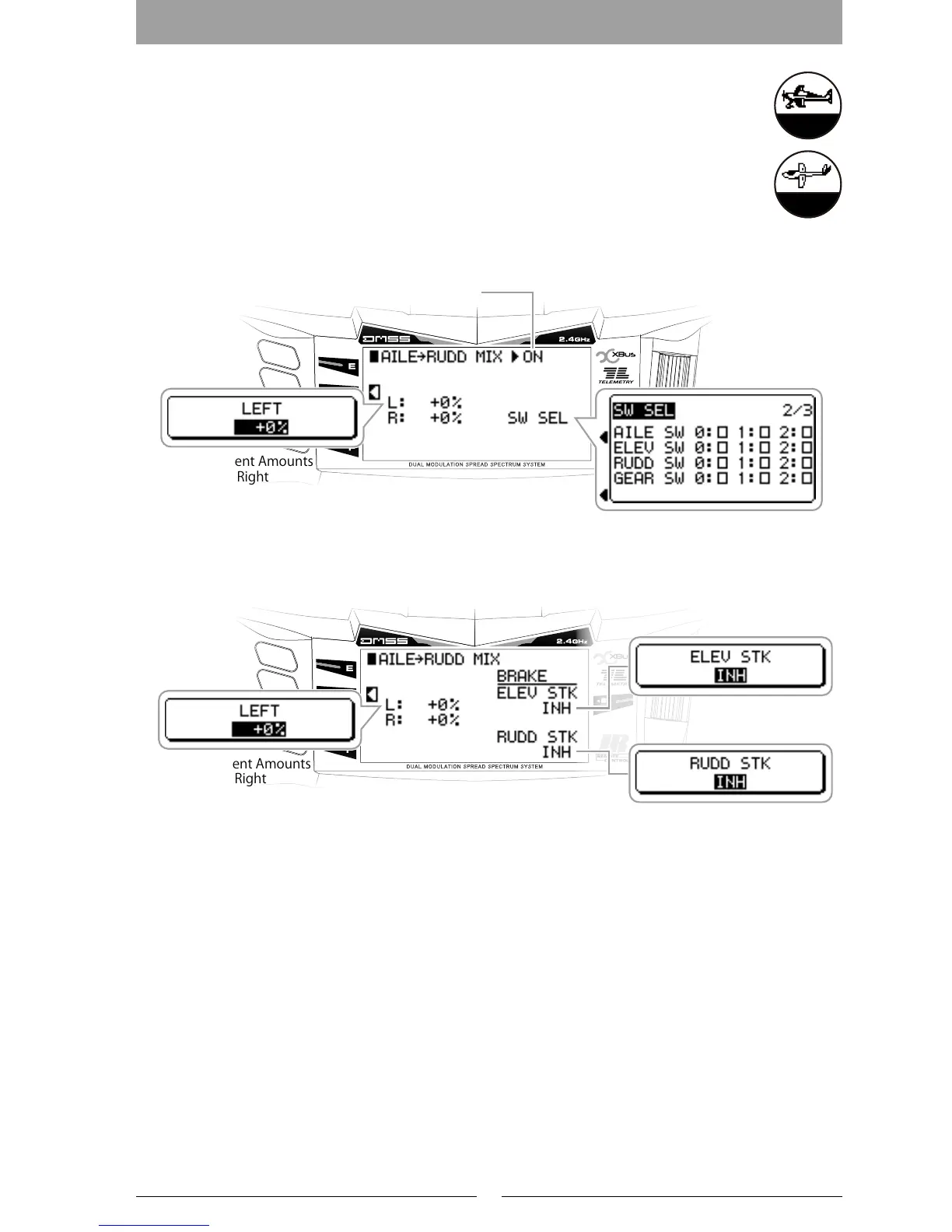

▋Aileron▋to▋Rudder▋Mixing【AILE → RUDD▋MIX】
▋▋Function▋Explanation
This function allows smooth coordinated turns for scale model aircraft. In addition, in glider
models, the Break function automatically releases this mixing when rudder or elevator
operation is sensed.
▋▋Setting▋Method
▋▋For▋Airplane
Aileron to Rudder mixing can be set independently on Right and Left. It is possible to activate with any desired
switch. Or you can use the ight mode switch to turn On or O󱐯.
▋▋For▋Glider
It is possible to set independent Mixing for right and left Aileron to Rudder in each flight mode. Input the
desired mixing amount for each ight mode.
⿟ Break Function (BREAK)
The “BREAK” setting on the elevator and rudder stick releases the mixing.
▋▋Caution▋Note
⿟ Actually operate the servos and carefully conrm the settings before ying.
Helicopter
Airplane
DANGER
WARNING
CAUTION
Glider
Function▋List
Linked Movement Amounts
to the Left and Right
Linked Movement Amounts
to the Left and Right
This sets the range of
the Brake Movement.
Operation Condition
Linked Movement Amounts
to the Left and Right
Linked Movement Amounts
to the Left and Right
This sets the range of
the Brake Movement.
Operation Condition
