JR XG 14 User Manual

78

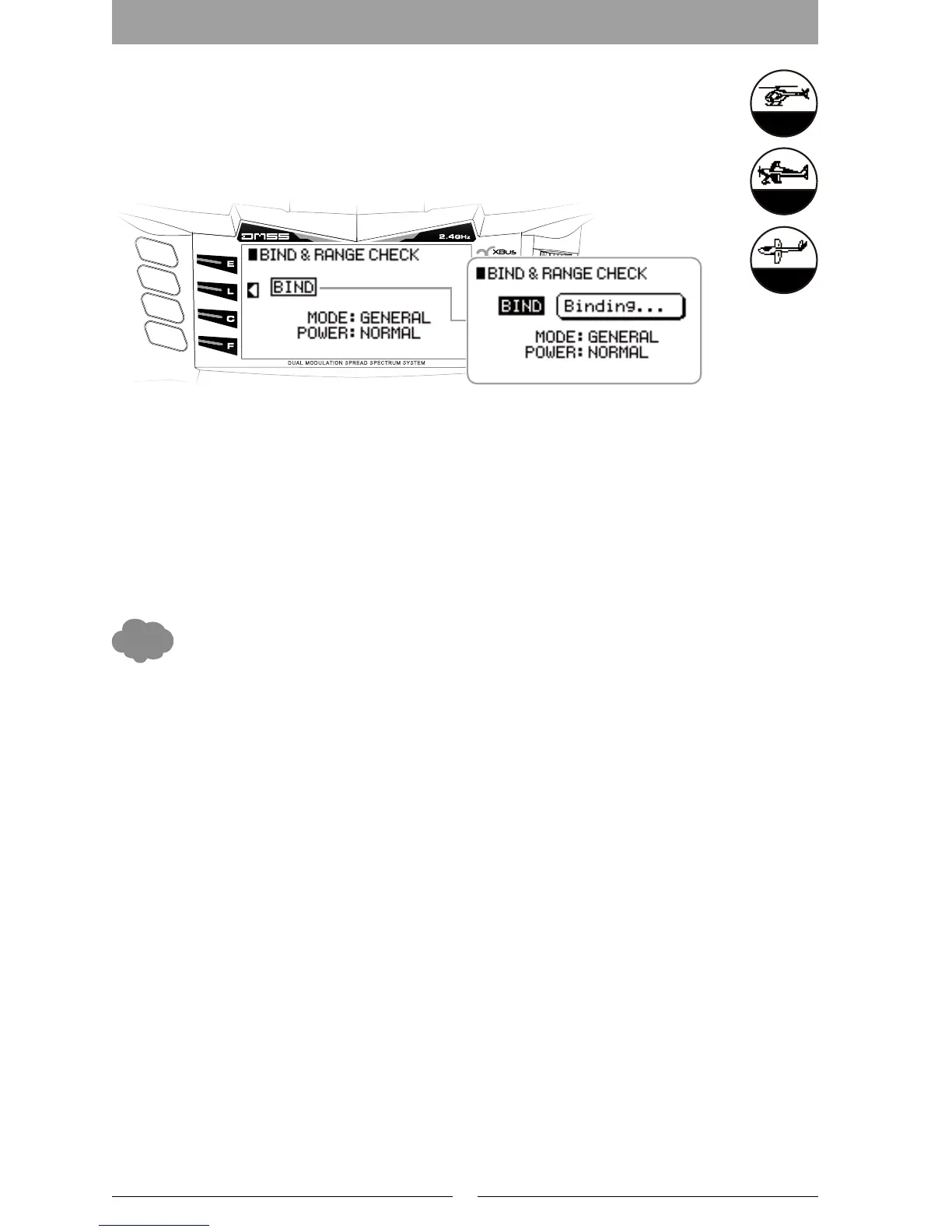

▋Bind▋and▋Range▋Check【BIND&RANGE】
▋▋Function▋Explanation
This function allows binding (pairing) with the receiver. In addition, transmitter power output
can be reduced for carrying out a range check.
▋▋Setting▋Method
⿟ Binding (BIND)
Set the receiver to the Bind Standby condition. Then rotate the dial to select “BIND” (inverse display) and press
the dial. If the display shows “SUCCESS”, binding has been successfully completed. If the display shows “TIMEOUT
PLEASE TRY AGAIN”, the bind process failed, and you must try again.
⿟ POWER (RF POWER) Range Check
If POWER is changed from “NORMAL” to “LOW”, the transmitter RF power is reduced and the LED will ash,
allowing a range check to be carried out. Place the Aircraft 40 meters (approx 131 feet) away from the
transmitter, and ensure all the controls function normally.
⿟ Regional Settings Mode (DMSS 2.4GHz Band width for France)
When using the transmitter in France and its overseas territories, this should be set to “FRANCE”. In all other
regions this should be set to “GENERAL”. In France mode, the 2.4GHz bandwidth that is used will be legally
restricted compared to the bandwidth in other regions. Initially it is set to “GENERAL”.
ダイヤル
TIPS
調整ポイント表示
ポイント接続を曲線に変更 スティック入力位置と出力位置の数値表示
現在の
フライトモード位置
各調整ポイントの
入力位置と出力位置
ポイントの
追加と削除
注意：
グラフはホバリン
グスロットルやス
ロットルトリムで
変化する場合もあ
ります。
カーブをコピー
⿟ If there is a di󱐰culty in binding a receiver, please conrm the following:
፧
Are the transmitter and receiver batteries fully charged? Please fully charge the batteries.
፧
Are the transmitter and receiver too close to each other? If they are set too close each other, RF swamping
may interrupt the binding process. Please try binding again with the transmitter and receiver further
separated.
፧
If the transmitter and receiver are on a metal table or desk, binding may be di󱐰cult. Please try binding on
a di󱐯erent surface.
⿟ Each receiver recognizes the transmitter’s model ID. If the Model ID does not match the with particular model,
it may not be able to complete binding. This is to avoid matching the wrong model’s ID to the transmitter.
RefertothePage76"TransmitterSetting【TXSETTING】"
⿟ Only matching DMSS receivers may be bound to the transmitter.
▋▋Caution▋Note
⿟ Be sure to set the “FAIL SAFE” (under System List) after the binding procedure is complete. It is essential to use
the Fail safe to minimize the risks of RF signal loss. Be conscious about safety all the time. Check the actual
Fail safe settings by turning o󱐯 the transmitter, and monitoring the response of the servos.
⿟ When the model or type is changed in the transmitter, it will be necessary to re-bind the receiver.
⿟ NEVER y the aircraft in Range Check mode.
Helicopter
Airplane
DANGER
WARNING
CAUTION
Glider
System▋List
Bind Mode
