JR XG 14 - ▋Throttle Stick Direction【THRO (SPOI) STICK DIRECTION】

88
⿟ Tail (TAIL)
፧
Normal （NORMAL）
Standard tail wing setting
፧
V-Tail (V-TAIL)
To perform mixing for a V-Tail airplane.
The following channel outputs are used:
Channel 3 (ELEV) : Left Tail (LTAL)
Channel 4 (RUDD) : Right Tail (RTAL)
፧
4 Elevator (4ELEV)
For models with 4 Elevators
The Following channel outputs are used.
Channel 3 (ELEV) : Right Elevator 1 (REL1） Channel 12 (AUX7) : Right Elevator 2（REL2）
Channel 11 (AUX6) : Left Elevator 1 (LEL1) Channel 13 (AUX8) : Left Elevator 2（LEL2）
⿟ Dual Channel (DUAL) / Mate Trim (TRIM)
A Dual channel can be chosen for the following functions. Select the Channel to use for the Dual output. It
is also possible to activate trim for the Dual channel, so that operation of trimming on the main function is
reected on the dual channel.
፧
Aileron (AILE)
፧
Elevator (ELEV)
፧
Rudder (RUDD)
፧
Flap (FLAP)
▋▋For▋Glider

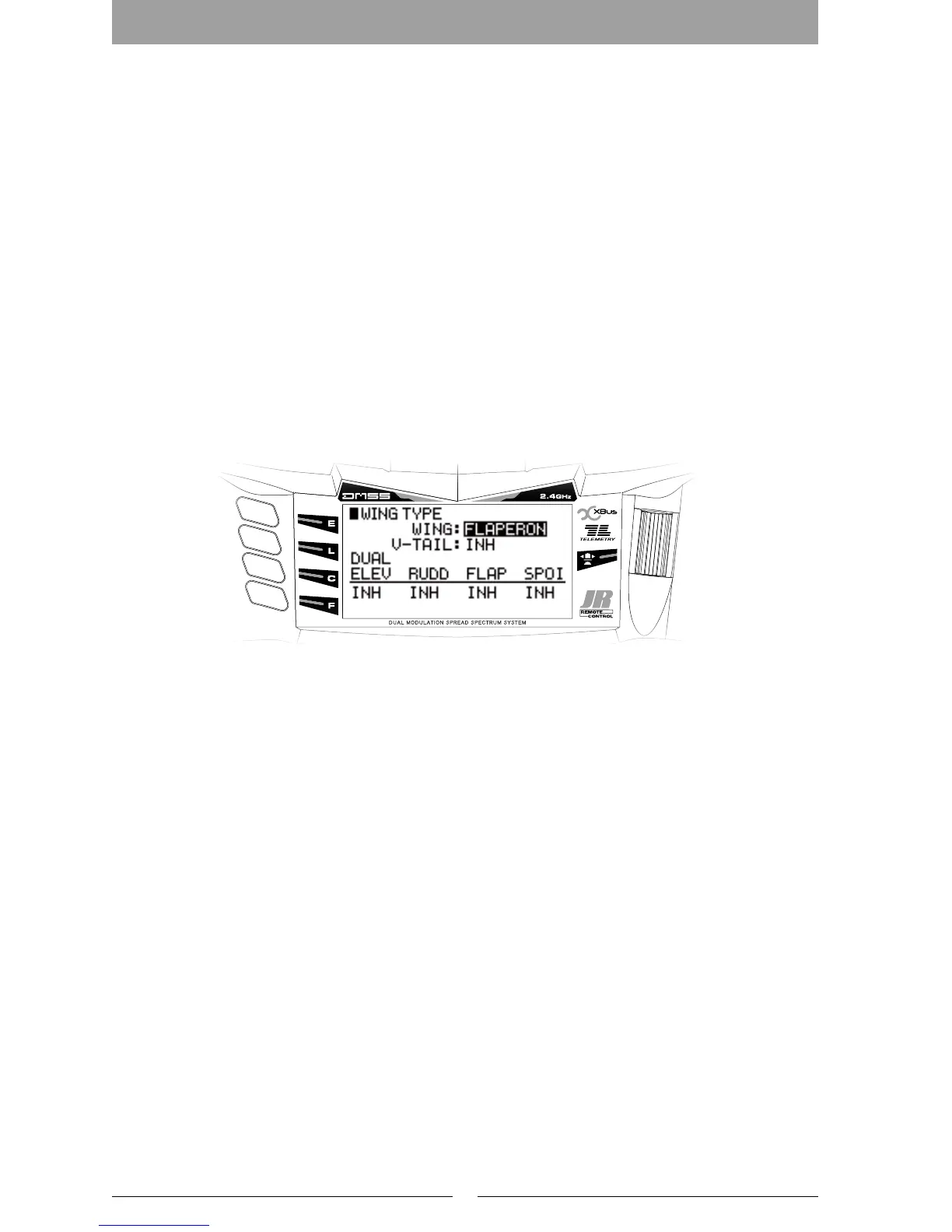

⿟ Wing Type (WING）
፧
Flaperon (FLAPERON）
Dual Aileron wing setting.
The following channel outputs are used.
Channel 1 : Left Aileron (LAIL）
Channel 2 : Right Aileron (RAIL）
፧
4 Aileron (4AILE）
For Wings with 4 Ailerons.
The Following channel outputs are used.
Channel 1 (LAIL) : Left Aileron 1（LAL1）
Channel 9 (AUX4) : Left Aileron 2（LAL2）
Channel 2 (RAIL） : Right Aileron 1 (RAL1）
Channel 8 (AUX3) : Right Aileron 2 (RAL2)
⿟ V-Tail (V-TAIL)
This is mixing for a V-Tail airplane.
The following channel outputs are used:
Channel 3 (ELEV) : Left Tail (LTAL)
Channel 4 (RUDD) : Right Tail (RTAL)
⿟ Dual Channel (DUAL)
A Dual channel can be chosen for the following functions. Select the Channel to use for the Dual output. It
is also possible to activate trim for the Dual channel, so that operation of trimming on the main function is
reected on the dual channel.
፧
Elevator (ELEV)
፧
Rudder (RUDD)
፧
Flap (FLAP)
፧
Spoiler (SPOI)
▋▋Caution▋Note
Actually operate the servos and carefully conrm the settings before ying.
System▋List
Dual Channel/Mate Trim
Dual Trim Setting
Wing Type
Tail Type
