JR XG 14 User Manual

33
⿟ Follow and understand the details of the TAGS01 3 axis gyro manual completely prior to using this calibration
function.
⿟ By using the Trim Input function, it is possible to change the gyro sensitivity values using Trim Lever.
Therefore, it is possible to easily adjust the sensitivity during ight.
▋▋Caution▋Note
⿟ Be sure to understand the Gyro manual thoroughly to allow correct use of this function.
⿟ Carefully check the direction of the tail servo and be sure that everything works correctly before ight.

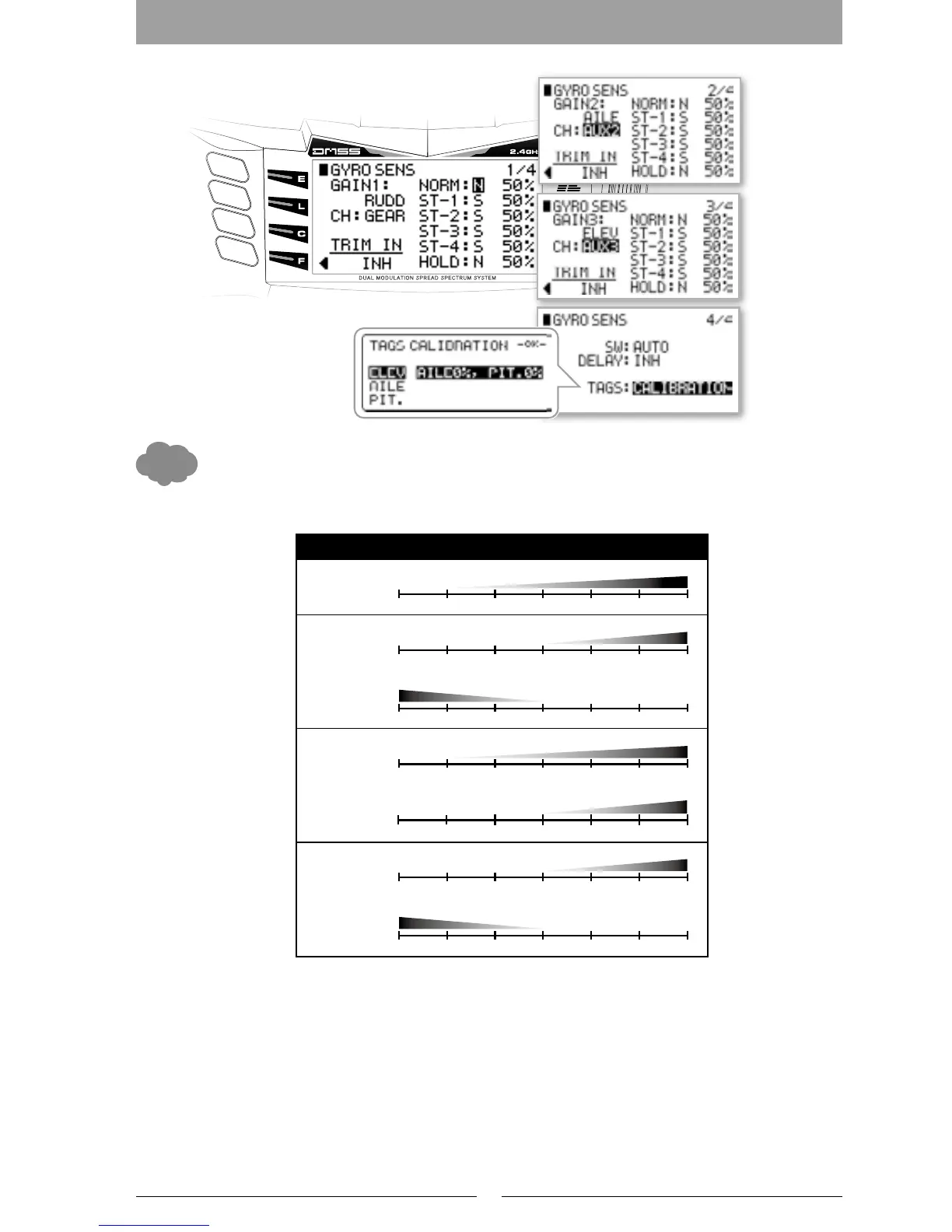

Sensitivity Switching delay
If AUTO is selected, the sensitivity
switching setting for each Flight
Mode will be applied.
Further, by operating the switch
that you wish to use, input will be
automatically carried out.
Display for corresponding
flight mode
Gyro Mode selection
S = STUNTT = TAIL LOCKN = NORMAL
Gyro sensitivity (T.LOCK)
Calibration function
TRIPLE AXIS MODE
Setting values and actual output values
NORMAL
-150% -100% -50% 0% 50% 100% 150%
0% 50% 100% 125%
T.LOCK
T
N
-150% -100% -50% 0% 50% 100% 150%
0% 50% 100% 150%
-150% -100% -50% 0% 50% 100% 150%
0%50%100%150%
TRIPLE AXIS
S
N
-150% -100% -50% 0% 50% 100% 150%
0% 50% 100% 150%
-150% -100% -50% 0% 50% 100% 150%
0%50%100%150%
DUAL GAIN
NORM GAIN
T.LOCK
-150% -100% -50% 0% 50% 100% 150%
0% 50% 100% 125%
0% 50% 100% 150%
-150% -100% -50% 0% 50% 100% 150%
The upper numerical values are the
setting values.
Function▋List
TIPS
Sensitivity Switching delay
If AUTO is selected, the sensitivity
switching setting for each Flight
Mode will be applied.
Further, by operating the switch
that you wish to use, input will be
automatically carried out.
Display for corresponding
flight mode
Gyro Mode selection
S = STUNTT = TAIL LOCKN = NORMAL
Gyro sensitivity (T.LOCK)
Calibration function
TRIPLE AXIS MODE
Setting values and actual output values
NORMAL
-150% -100% -50% 0% 50% 100% 150%
0% 50% 100% 125%
T.LOCK
T
N
-150% -100% -50% 0% 50% 100% 150%
0% 50% 100% 150%
-150% -100% -50% 0% 50% 100% 150%
0%50%100%150%
TRIPLE AXIS
S
N
-150% -100% -50% 0% 50% 100% 150%
0% 50% 100% 150%
-150% -100% -50% 0% 50% 100% 150%
0%50%100%150%
DUAL GAIN
NORM GAIN
T.LOCK
-150% -100% -50% 0% 50% 100% 150%
0% 50% 100% 125%
0% 50% 100% 150%
-150% -100% -50% 0% 50% 100% 150%
The upper numerical values are the
setting values.
