▋▋For▋Glider
Setting can be achieved for the below Wing types. Set the Wing type in the system list.
⿟ Flaperon (FLAPERON)
It is possible to correct the right Aileron’s servo movement based on the left Aileron’s servo movement.
※ This transmitter is set as Flaperon as the default wing setting for Glider.
⿟ Four Aileron Glider (4-AILE)
It is possible to correct the Outside Left aileron (LAL2) as a base, Inside Left aileron(LAL1), Outside Right
aileron(RAL2), and Inside right aileron(RAL1) servos.
⿟ V-tail (V TAIL)
It is possible to correct the right V-tail ’s servo movement based on the left V-tail’s servo movement.
⿟ Dual Elevator (DUAL ELEV)
It is possible to correct the right elevator ’s servo movement based on the left elevator’s servo movement.
⿟ Dual Rudder (DUAL RUDD)
It is possible to correct the right rudder’s servo movement based on the left rudder’s servo movement.
⿟ Dual Flap (DUAL FLAP)
It is possible to correct the right ap ’s servo movement based on the left ap’s servo movement.
⿟ Dual Spoiler (DUAL SPOI)
It is possible to correct the right spoiler ’s servo movement based on the left spoiler’s servo movement.
ダイヤル
TIPS
調整ポイント表示
ポイント接続を曲線に変更 スティック入力位置と出力位置の数値表示
現在の
フライトモード位置
各調整ポイントの
入力位置と出力位置
ポイントの
追加と削除
注意：
グラフはホバリン
グスロットルやス
ロットルトリムで
変化する場合もあ
ります。
カーブをコピー

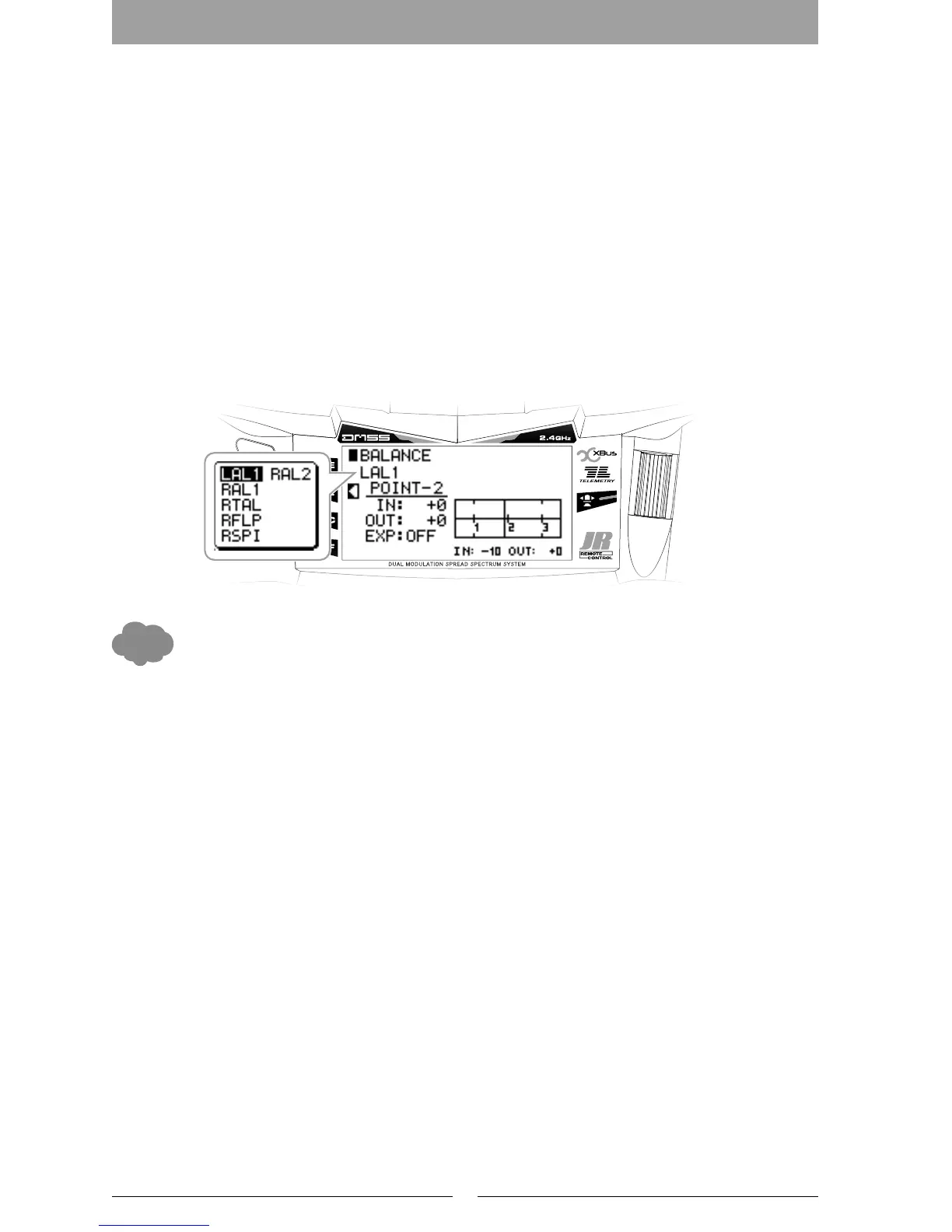

⿟ For each servo, ve points can be adjusted. This allows not only exact matching of the servo neutrals, but also
matching of additional points including full travel. These points are set numeric values to exactly match servo
and control surface throw.
⿟ By using the exponential function, it is possible to arrange the transition curve smoothly.
▋▋Caution▋Note
⿟ Actually operate the servos and carefully conrm the settings before ying.
