JMA-9100 Instruction Manual > 3.BASIC OPERATION > 3.7 USE ROUTE FUNCTION
3－73
3
3) On the radar display, put the cursor on a Waypoint to be deleted,
and left-click.
The specified Waypoint is deleted, and the previous and following Waypoints are then
connected by a line.
4) To delete another Waypoint, repeat procedure 3.
5) To finish deleting a Waypoint, left-click the
button.
The Waypoint deleting mode will be cancelled.

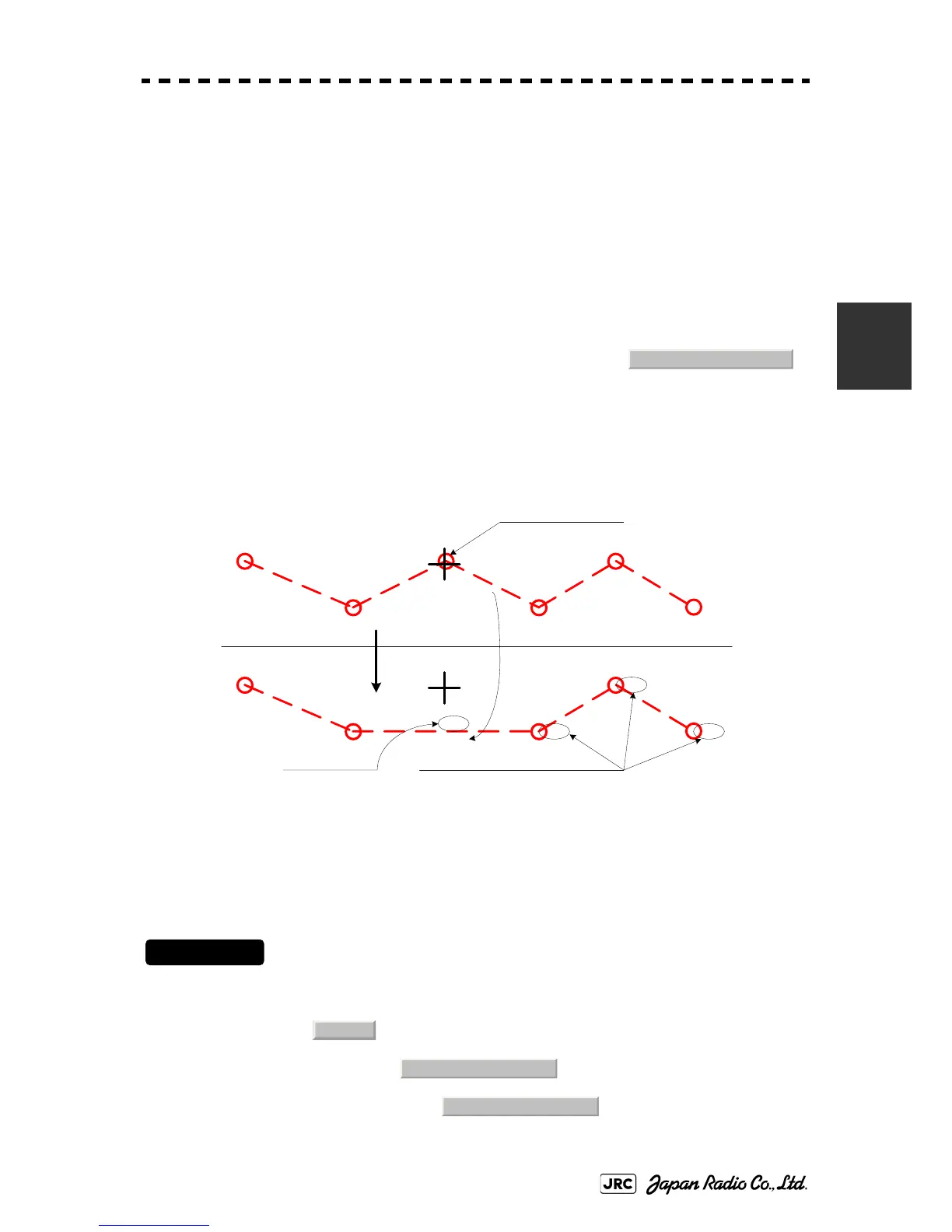

(Example)
3.7.2.6 Inserting a Waypoint (Insert Waypoint)
A Waypoint is inserted at a specific location of the route data saved in the radar system.
Procedures
1) Open the Set Route Sequence menu by performing the menu
operation below.
→
→
5. Delete
000
001
002
003
004
005
064T
113T 113T 064T
113T
Waypoints are re-numbered.
000
001 002
003
004
113T
090T
064T
113T
Left-click Planned speed
Waypoint to be deleted
Calculated again
8.00kn 10.0kn 11.0kn
12.0kn
9.00kn
8.00kn
10.0kn
11.0kn
12.0kn
Route
2. WPT/Route Setting
3. Set Route Sequence
