JMA-9100 Instruction Manual > 3.BASIC OPERATION > 3.7 USE ROUTE FUNCTION
3.7.1.1 Displaying route created by the radar system (Internal)

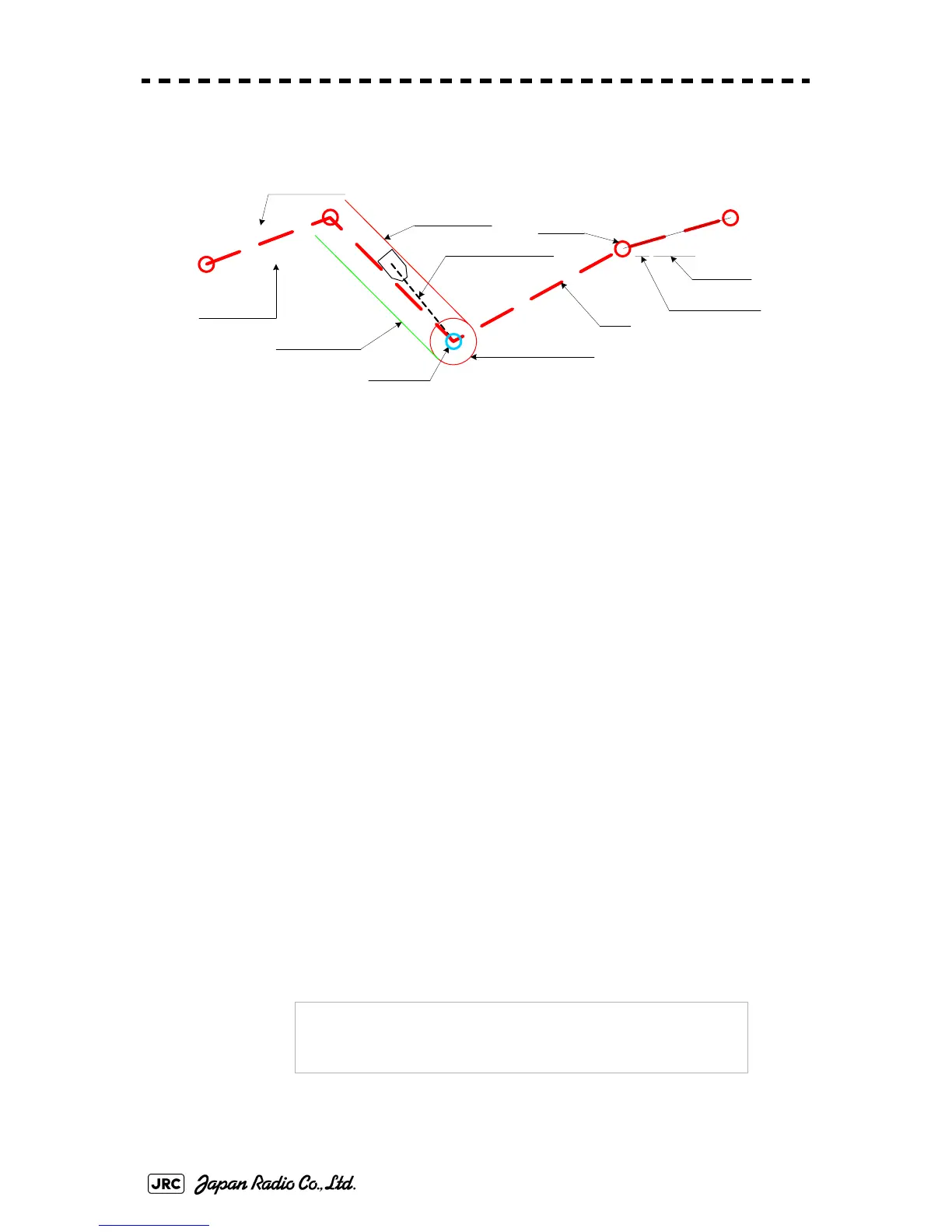

In this radar system, route created by the radar system are displayed as shown below.
The following rout data is displayed.
3.7.2 Edit Route (Set Route Sequence)
In this radar system, it is possible to easily create and correct route by performing
operation on the radar display.
3.7.2.1 Initializing route data (New Monitor Route)
Route data saved in the radar system is initialized.
Waypoint : Up to 512 points (number: 000 to 511), comments can be entered.
To Waypoint : Next Waypoint is displayed in a light blue circle.
Route : A route line that connects Waypoints.
Planned Courese : Scheduled route between Waypoints (automatically calculated).
Planned Speed : Scheduled sailing speed between Waypoints (entered by user).
Waypoint alarm circle : The circle that shows the distance to judge arrival in Waypoint.
Route alarm line : The line that shows the distance width to judge route alarm.
Waypoint bearing vector : A vector line that shows next destination from own ship's CCRP.
NOTE:
Once route data is initialized, route data saved in the
radar system's storage section is deleted. If there is
necessary route data, save the route data on the flash
memory card before initializing it.
000
ABCDE
001
002 FGJK
003 OPQRS
004
Waypoint
To Waypoint
Waypoint bearing vector
Waypoint alarm circle
Route
Waypoint number
Comments
Route alarm line
Route alarm line
070T
2.50kn
062T
074T
Planned Course
Planned Speed
135T
5.00kn
10.0kn
12.5kn
