JMA-9100 Instruction Manual > 1.GENERAL AND EQUIPMENT COMPOSITION > 1.5 GENERAL SYSTEM DIAGRAMS
1ļ¼27
1

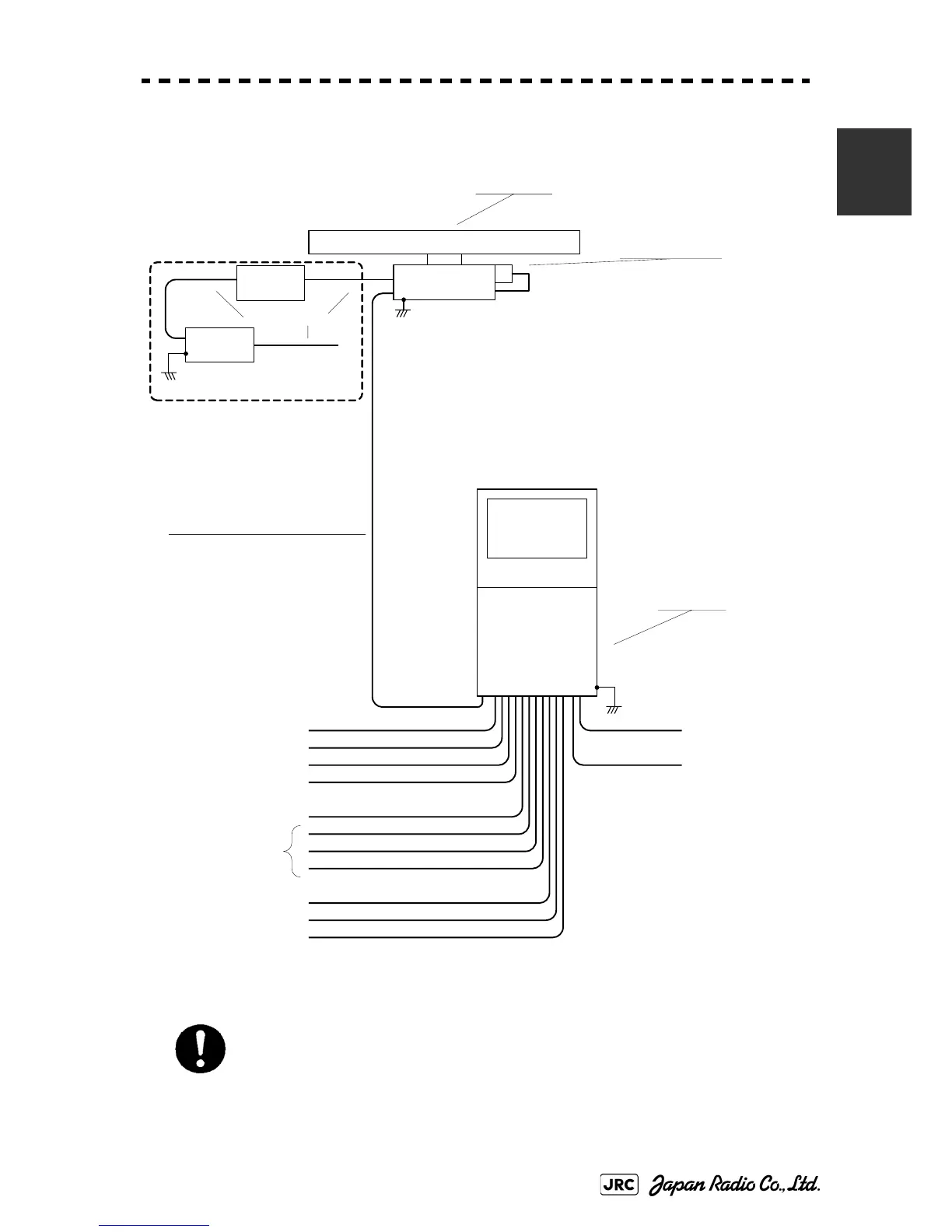

Fig 1-20: General System Diagram of Radar, Type JMA-9132-SA
Eliminating the interference on frequencies used for marine communications and navigation
due to operation of the radar. All cables of the radar are to be run away from the cables of radio
equipment.(Ex. Radiotelephone. Communications receiver and direction finder, etc. )
Especially inter-wiring cables between scanner unit and display unit of the radar should not be
run parallel with the cables of radio equipment.
NCD-4990
DISPLAY UNIT
NJU-84
PERFORMANCE
MONITOR
250V-MPYCYS -7
250V-TTYCS-1
3C-2V x5 (MAX 30m)
250V-TTYCS-1
18 CORES COMPOSITE CABLE
H-2695111153
MAX 18.0Ļ (JRC SUPPLY)
250V-TTYCS-4
H-2695110006 (JRC SUPPLY )
H-2668510019 (JRC SUPPLY) SPARE
250V-MPYC -4
250V-TTYCS-4
250V-TTYCS-4
GYRO
LOG
(NMEA 0183)
DGPS
VDR
RADAR
(INTER SWITCH)
ECDIS
(JAN-901M)
ALERM MONITORING SYSTEM
(NEAREST APPROACH)
(POWE R FAI L)
CONNING DISPLAY
(JAN-701-CON)
AIS
0.6/ 1kV-DPYCY -6
0.6/ 1kV-DPYCYS -1.5
SHIPāS MAIN
AC220 V,60Hz,1Ļ,800 VA
SHIPāS MAIN
for POWER FAIL ALARM
DC24V(BATTERY),1W
(5A)
NBL-175
SHIPāS MAIN
for HEATER
AC220V ,50 / 60 Hz, 1Ļ
AC100 V,60Hz
1Ļ,200 W
CIRCUIT BREAKER
(SHIP YARD SUPPLY)
(WITH PM UNIT)
NKE-1130
SCANNER UNIT
14 CORES COMPOSITE CABLE
H-2695110056
MAX 23Ļ (JRC SUPPLY)
0.6/1kV-DPYCYS-1.5
OPTION
STEPDOWN
TRANSFORMER
1600 VA
To Next Page
