3. Slice the nylon straps that hold the shipping boxes to the pallet with the box cutter or the packing knife.
4. Lift the shipping box off the chassis.
5. Remove the cardboard accessory box.
6. Remove the foam padding from the top of the box.
7. Remove the plastic cover from the router chassis.
8. Use a 13/32 in. (10 mm) open-end wrench or socket wrench to remove the four sets of bracket bolts
that secure the chassis to the shipping pallet (see Figure 45 on page 130).

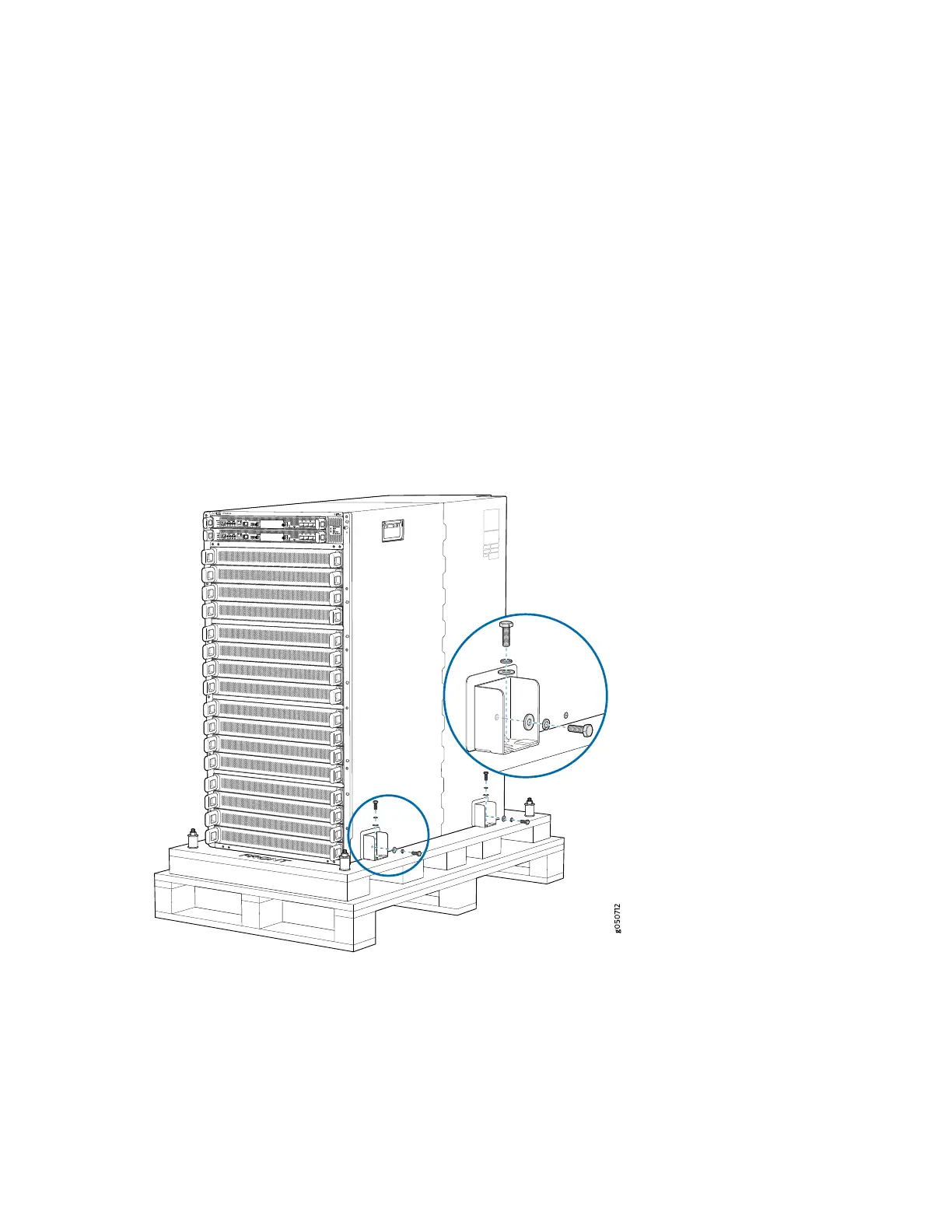

Figure 45: Removing Bracket Bolts
9. Unpack the accessory box, and lay out the contents so that they are ready for use.
10. Verify that your order includes all appropriate parts. See “MX10016 Components and Configurations”
on page 31 and “Comparing the MX10016 Order to the Packing List” on page 132. for information about
base configurations and redundant configurations.
130
