Ensure you have the following tools and parts before you begin:
•
A number 2Phillips (+) screwdriver
•
Front panel (provided with the router chassis)
•
Right base bracket (provided)
•
Left base bracket (provided)
•
2 interchangeable latch brackets (provided)
•
8 Phillips flat-head mounting screws (provided)
To install the front panel:
1. Remove the plastic bag that is taped to the front panel, which holds the brackets and screws.
2. Use the Phillips screwdriver to attach two mounting screws to the left base bracket at the bottom left
side of the chassis frame.
NOTE: The base brackets are larger than the latch brackets. The right and left base bracket
cannot be interchanged (see Figure 50 on page 143).

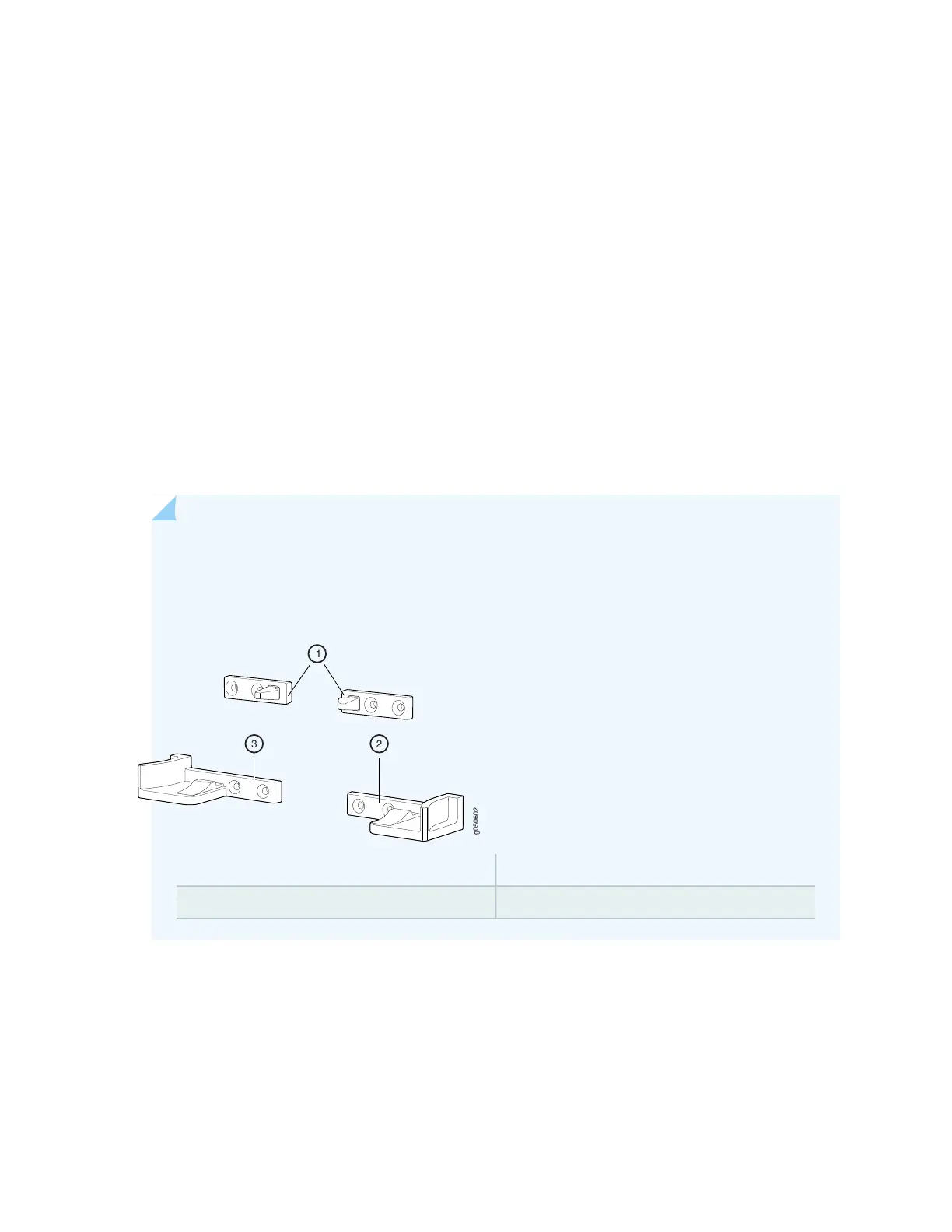

Figure 50: Front Panel Mounting Hardware
3—1— Left base bracketLatch brackets
2—Right base bracket
3. Use the Phillips screwdriver to attach two mounting screws to the right base bracket at the bottom
right side of the chassis frame.
4. Use the Phillips screwdriver to attach two mounting screws to the latch bracket at the top-left of the
chassis frame (see Figure 51 on page 144 for MX10016 installation).
