Juniper MX10016 Hardware Guide

To install the cable management system (see Figure 111 on page 228):
1. Open the shipping carton of the cable management system and check that you have:
•
Two handle extensions
•
One cable tray

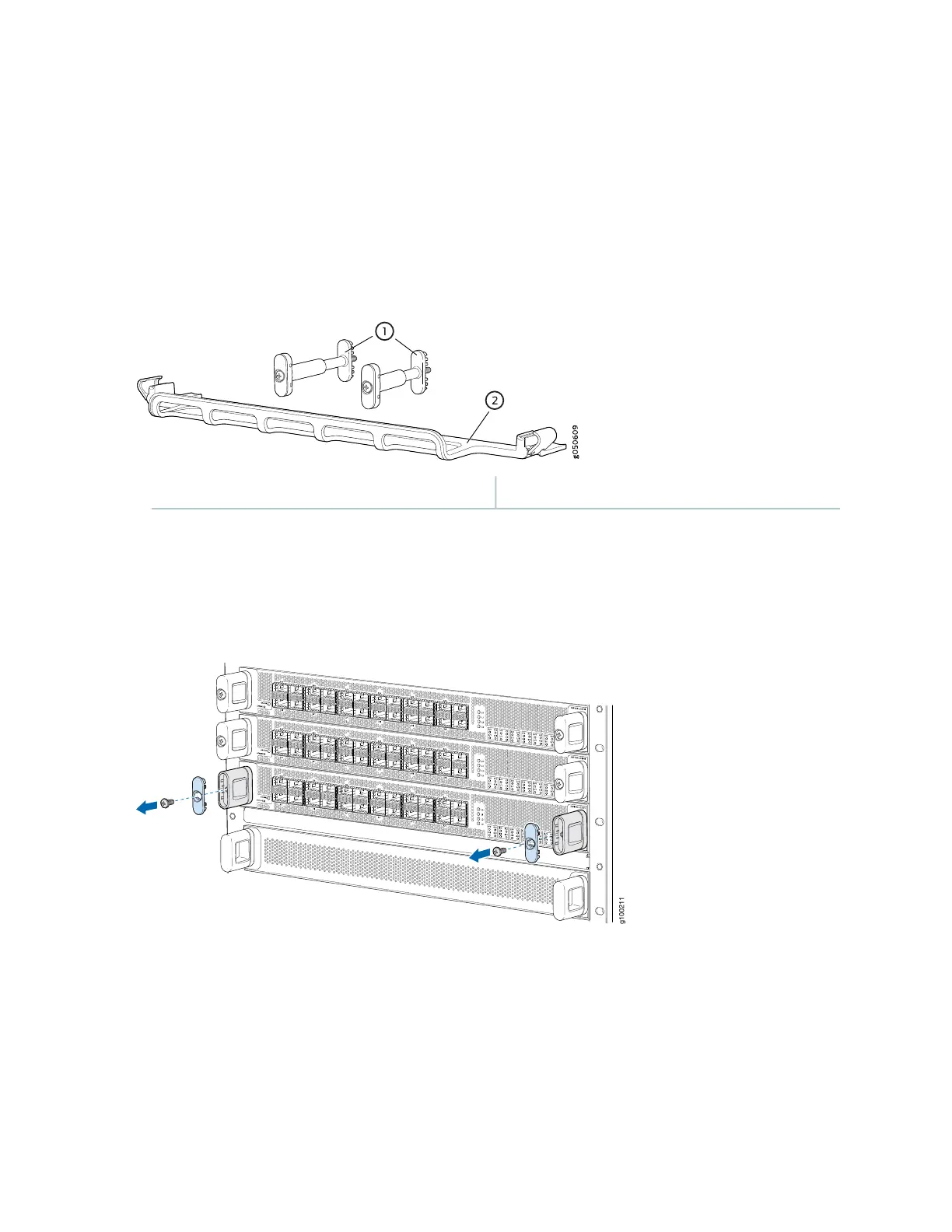

Figure 111: Cable Management System Components
2—1— Cable trayHandle extensions
2. Use the Phillips screwdriver to loosen and remove the screws on the two line card handles (see
Figure 112 on page 228).
Figure 112: Removing the Screws on the Line Card Handles
g100211
3. Replace the blue cap on each line card handle with the two handle extensions (see
Figure 113 on page 229).
