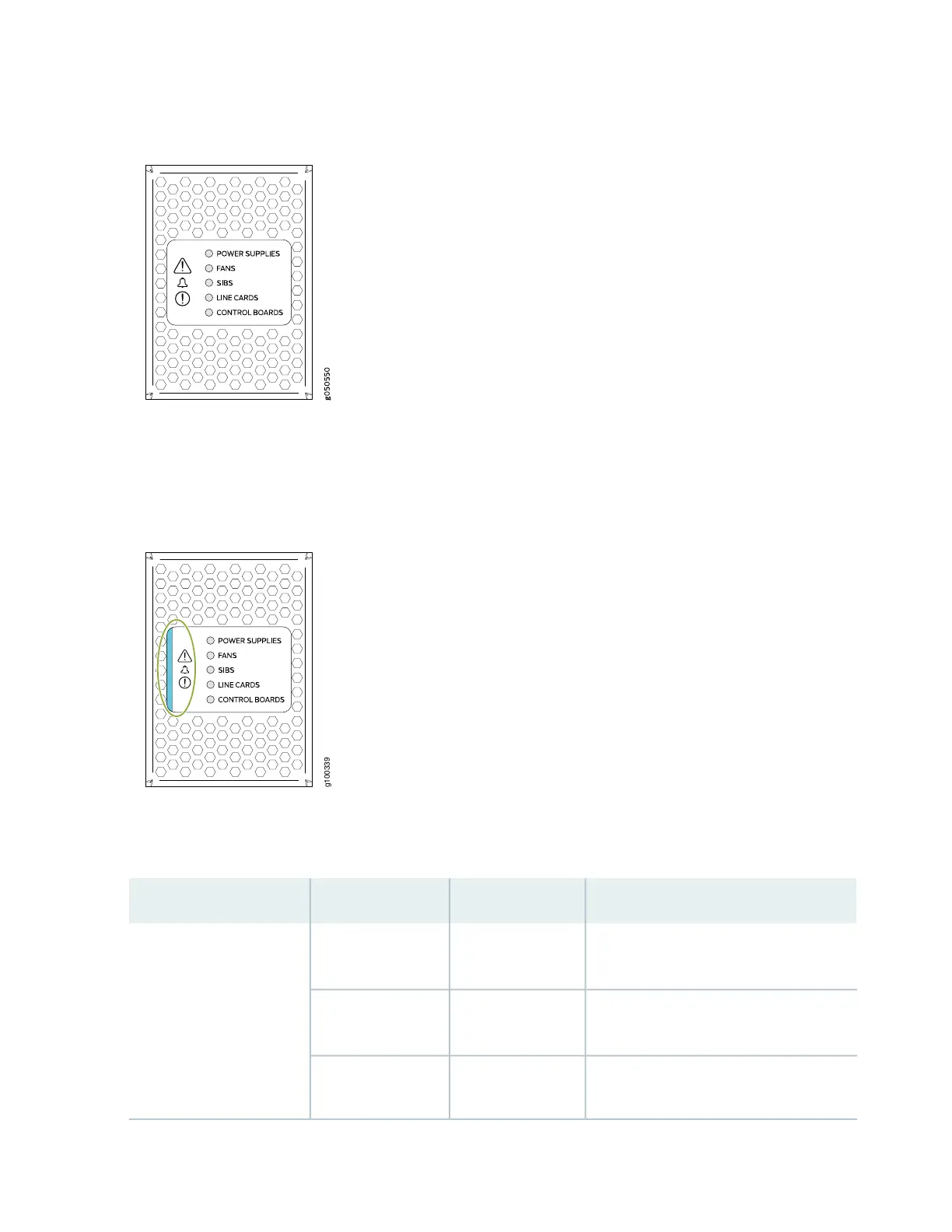

Figure 14: MX10016 Status Panel
Chassis that are shipped after May 2019 have the same set of five bi-color LEDs, but also have an azure
blue line to indicate the enhanced power bus (see Figure 15 on page 40).
Figure 15: Status Panel on Chassis with the Enhanced Power Bus
Table 8 on page 40 describes the status panel LEDs.
Table 8: Status Panel LEDs in an MX10016 Router
DescriptionStateColorName
All of the power supplies are online and
operating normally.
On steadilyGreenPower supplies
One or more of the power supplies have
an error.
On steadilyYellow
None of the power supplies is receiving
power.
OffNone
