CHAPTER 16
Connecting the MX104 Router to the
Network
•
Connecting the MX104 Router to Management Devices on page 121
•
Connecting the MX104 Router to External Clocking and Timing Devices on page 123
•
Connecting the MX104 Router to an External Alarm-Reporting Device on page 124
•
Connecting Interface Cables to MX104 Routers on page 125
Connecting the MX104 Router to Management Devices
To connect external devices and cables to the router, you need the following tools:
•
RJ-45 Ethernet cable and RJ-45 to DB-9 serial port adapter (provided)
•
Management host, such as a PC, with an Ethernet port (not provided)
The following topics provide instructions for connecting the router to management
devices:
•
Connecting the Router to a Network for Out-of-Band Management on page 121
•
Connecting the Router to a Management Console Device on page 122
Connecting the Router to a Network for Out-of-Band Management
To connect to the ETHERNET port on the MX104 Routing Engine:
1. Turn off the power to the management device.
2. Plug one end of the Ethernet cable into the MGMT port on the Routing Engine.
(Figure 30 on page 121 shows the connector. Figure 31 on page 122 shows the port.)
3. Plug the other end of the cable into the network device.

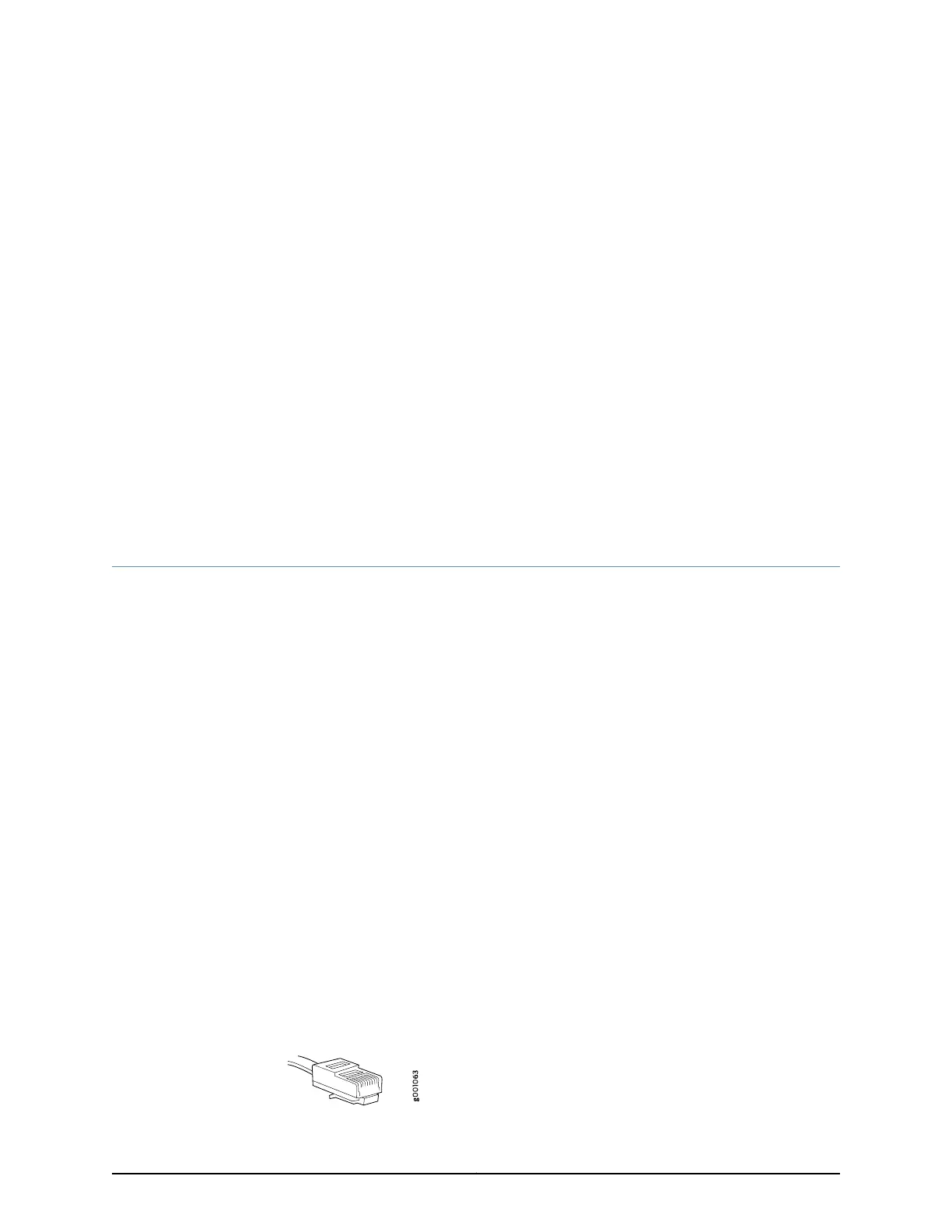

Figure 30: Ethernet Cable Connector
121Copyright © 2017, Juniper Networks, Inc.
