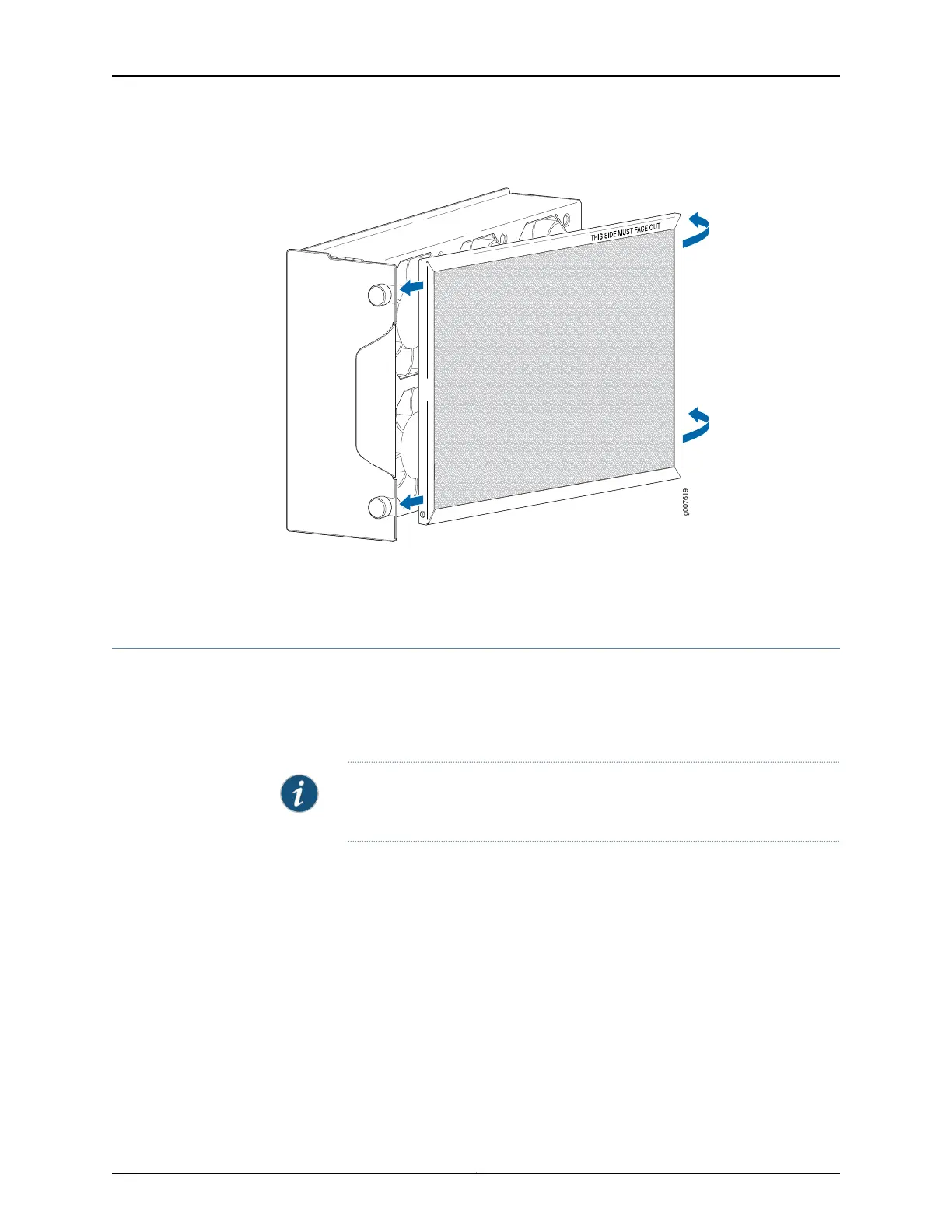

Figure 40: Installing the Air Filter
g007619
Related
Documentation
Removing an MX104 Air Filter on page 143
Replacing an MX104 Fan Tray
1.
Removing an MX104 Fan Tray on page 146
2.
Installing an MX104 Fan Tray on page 147
Removing an MX104 Fan Tray
NOTE: To prevent overheating, install the replacement fan tray immediately
after removing the existing fan tray.
To remove the fan tray (see Figure 41 on page 147):
1. Attach an ESD grounding strap to your bare wrist and connect the strap to one of the
ESD points on the chassis.
2. Loosen the captive screws on the corners of the fan tray faceplate.
3. Grasp the fan tray handle, and begin to pull the fan tray from the chassis.
Copyright © 2017, Juniper Networks, Inc.146
MX104 3D Universal Edge Router Hardware Guide
