MX104 Cooling System and Airflow Overview on page 19
MX104 Cooling System and Airflow Overview
The cooling system in an MX104 router consists of the following components (see
Figure 9 on page 19):
•
Fan tray
•
Air filter

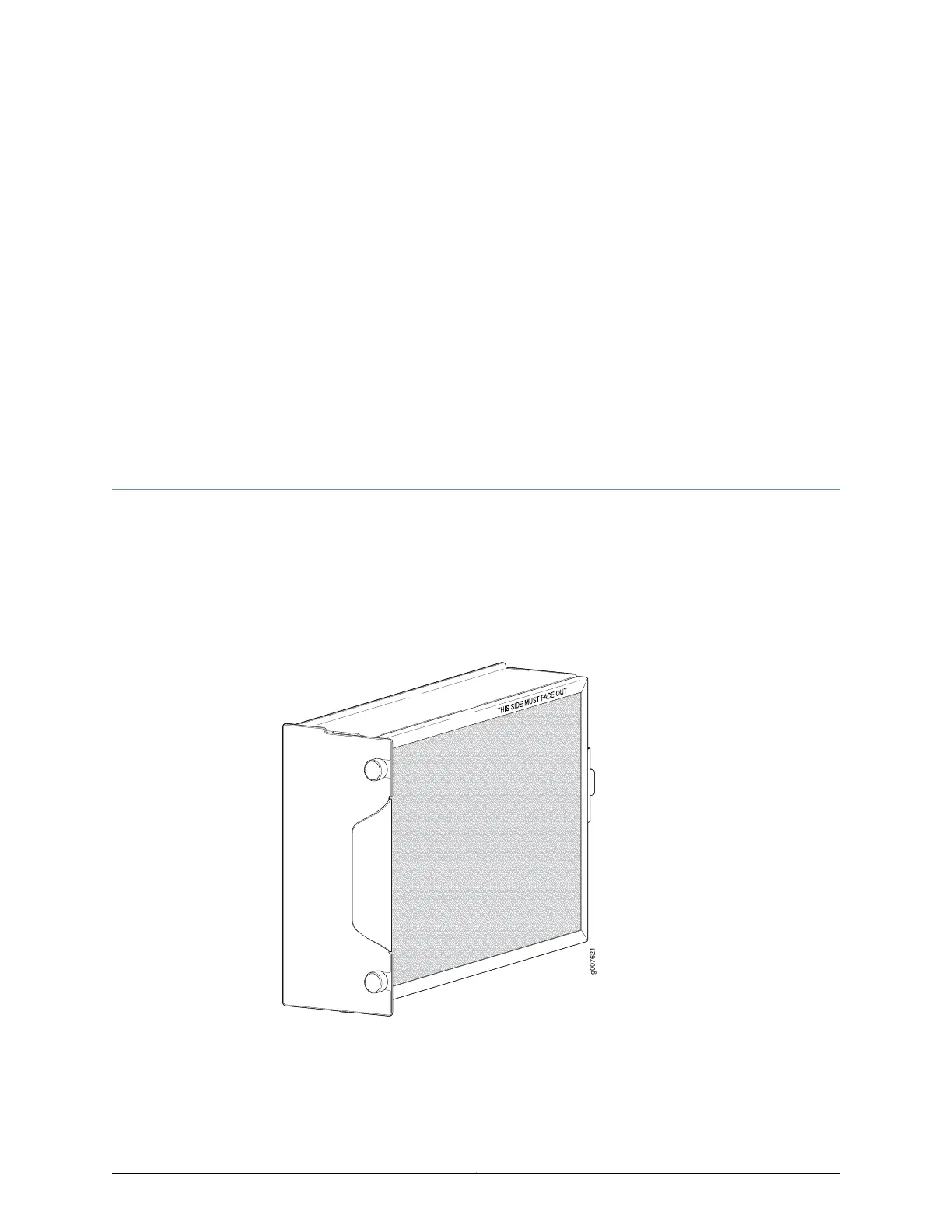

Figure 9: MX104 Fan Tray and Air Filter
The router has one hot-swappable fan tray that contains five fans. The air filter installs
into the side of the fan tray. The air intake to cool the chassis is located on the right side
of the chassis next to the air filter. Air is pulled through the air filter toward the fan tray,
