Juniper MX104 Hardware Guide

4. Attach an ESD grounding strap to your bare wrist and connect the strap to one of the
ESD points on the chassis.
5. Remove the clear plastic cover protecting the terminal studs on the faceplate (see
Figure 58 on page 178).
6. Remove the screw and washer from each of the terminals. (Use a number 2 Phillips
screwdriver.)
7. Remove the cable lugs from the terminals.
8. Carefully move the power cables out of the way.
9. Remove the nut and washer from the DC power supply grounding point (see
Figure 59 on page 179).
10. Remove the cable lug from the grounding point.
11. Move the grounding cable out of the way.
12. Press the release latch on the right side of the power supply to disconnect the power
supply from the chassis.
13. Grasp the handle on the power supply and pull the power supply straight out of the
chassis.

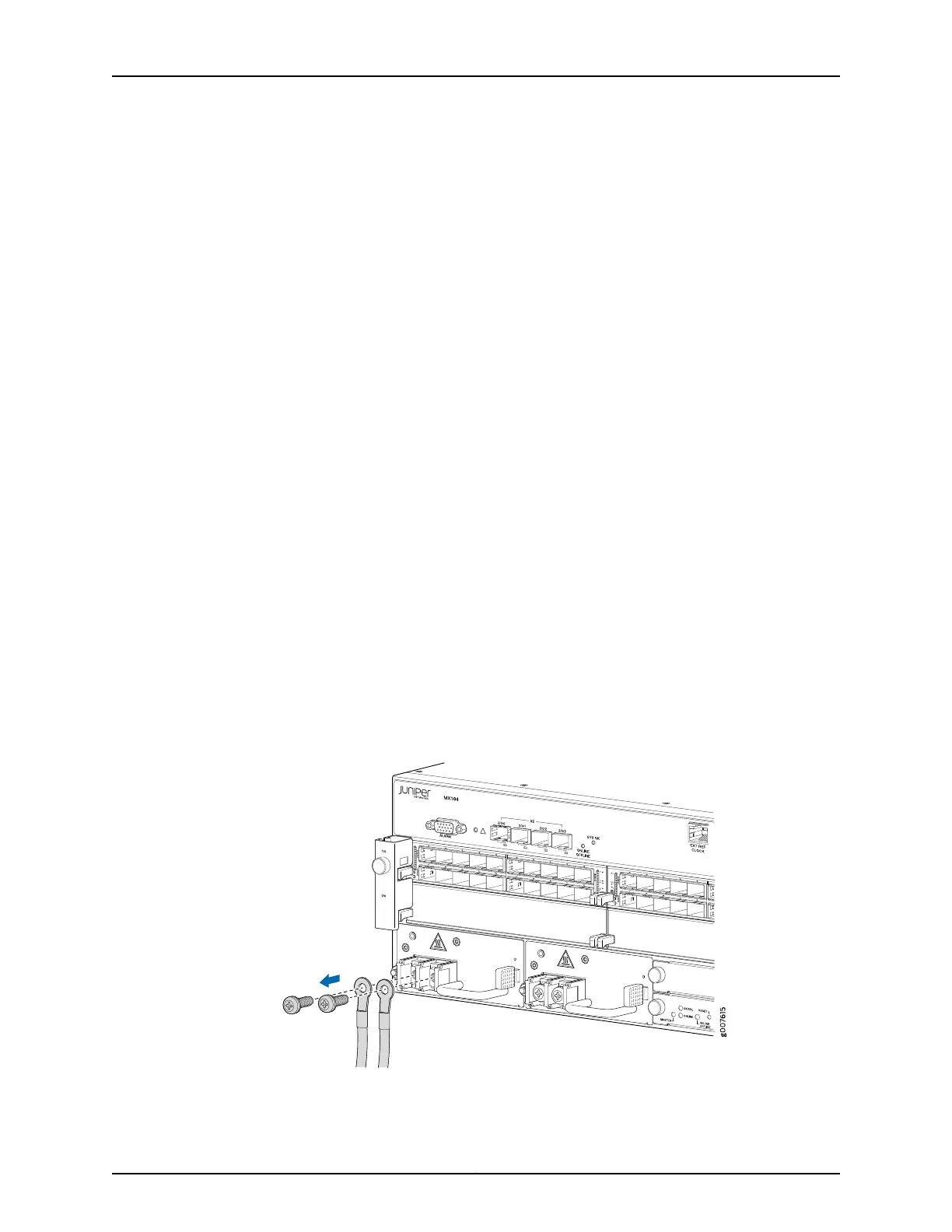

Figure 58: Disconnecting the DC Power Cables
Copyright © 2017, Juniper Networks, Inc.178
MX104 3D Universal Edge Router Hardware Guide

Juniper MX104 Specifications

General

Product Name	MX104
Product Series	MX Series
Switching Capacity	80 Gbps
Throughput	80 Gbps
Operating System	Junos OS
Humidity	5% to 90% non-condensing
Interfaces	10 Gigabit Ethernet, Gigabit Ethernet
Power Supply	Dual redundant AC or DC
Cooling	Front-to-back airflow
Memory	8 GB
Operating Temperature	0°C to 40°C
