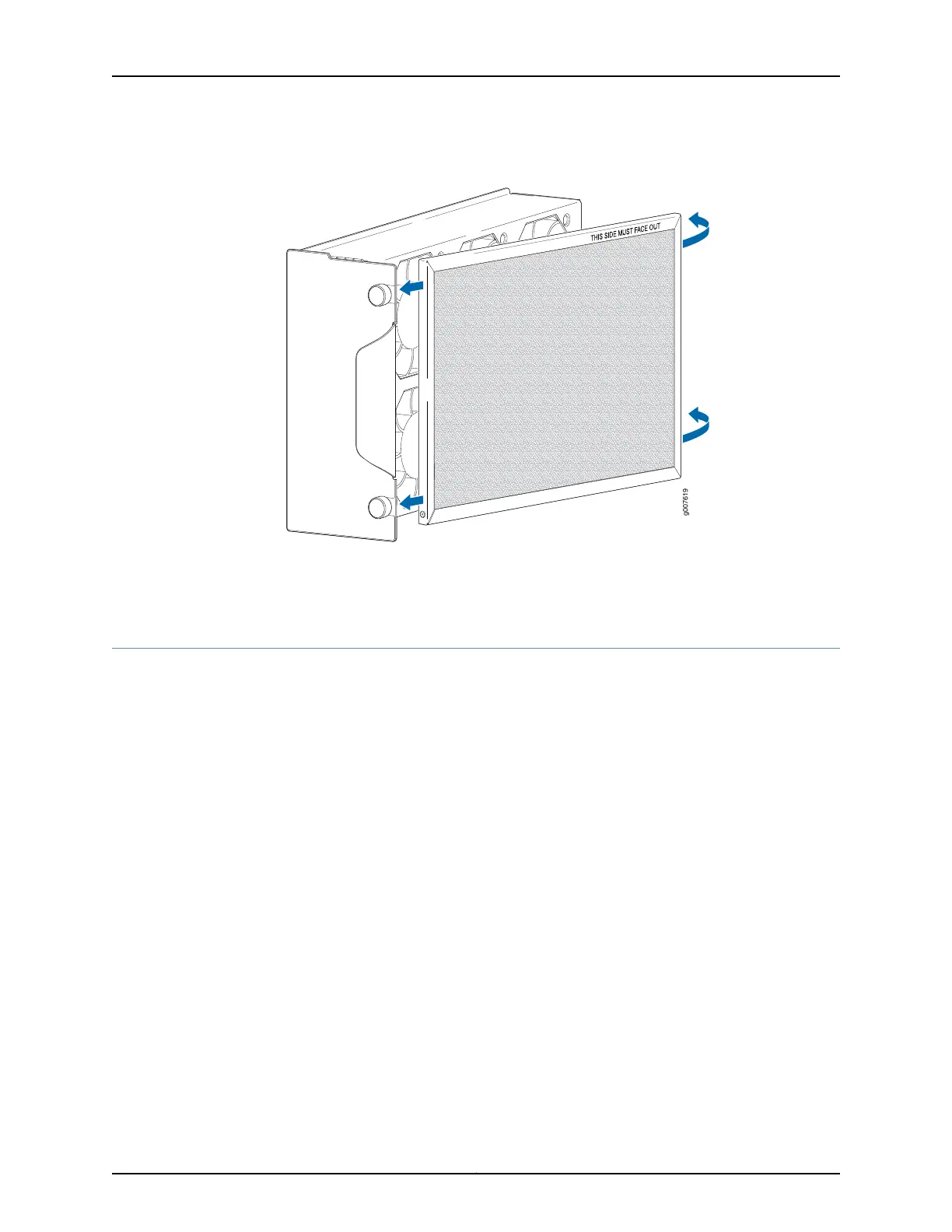

Figure 39: Installing the Air Filter
g007619
Related
Documentation
MX104 Cooling System and Airflow Overview on page 19•
Installing an MX104 Air Filter
The air filter installs on the right side of the fan tray. To install the air filter (see
Figure 39 on page 145):
1. Attach an ESD grounding strap to your bare wrist and connect the strap to one of the
ESD points on the chassis.
2. Locate the THIS SIDE MUST FACE OUT label and ensure that the air filter is right side
up.
3. Insert the air filter into the groove located toward the front of the fan tray.
4. Press the tab on the rear of the fan tray to allow the air filter to slide into place.
145Copyright © 2017, Juniper Networks, Inc.
Chapter 20: Replacing Cooling System Component

Juniper MX104 Specifications

General

Product Name	MX104
Product Series	MX Series
Switching Capacity	80 Gbps
Throughput	80 Gbps
Operating System	Junos OS
Humidity	5% to 90% non-condensing
Interfaces	10 Gigabit Ethernet, Gigabit Ethernet
Power Supply	Dual redundant AC or DC
Cooling	Front-to-back airflow
Memory	8 GB
Operating Temperature	0°C to 40°C
