Juniper MX104 Hardware Guide

Installing an MX104 Console or Auxiliary Cable
The CONSOLE port on the front panel of the router accepts an RS-232 (EIA-232) serial
cable with RJ-45 connectors.
NOTE: The AUX port is not supported.
To connect a cable between the router and the console or auxiliary device:
1. Attach an ESD grounding strap to your bare wrist and connect the strap to one of the
ESD points on the chassis.
2. Connect one end of the replacement cable into the CONSOLE/AUX port.
3. Plug the other end of the cable into the device's serial port.
Related
Documentation
MX104 Routing Engine Auxiliary and Console Ports Specifications on page 85•
Replacing an MX104 Management Ethernet Cable
1.
Removing an MX104 Management Ethernet Cable on page 138
2.
Installing an MX104 Management Ethernet Cable on page 139
Removing an MX104 Management Ethernet Cable
To remove a serial cable connected to a management device:
1. Attach an ESD grounding strap to your bare wrist and connect the strap to one of the
ESD points on the chassis.
2. Press the tab on the connector, and pull the connector straight out of the ETHERNET
port. Figure 36 on page 138 shows the connector.
3. Disconnect the cable from the network device.

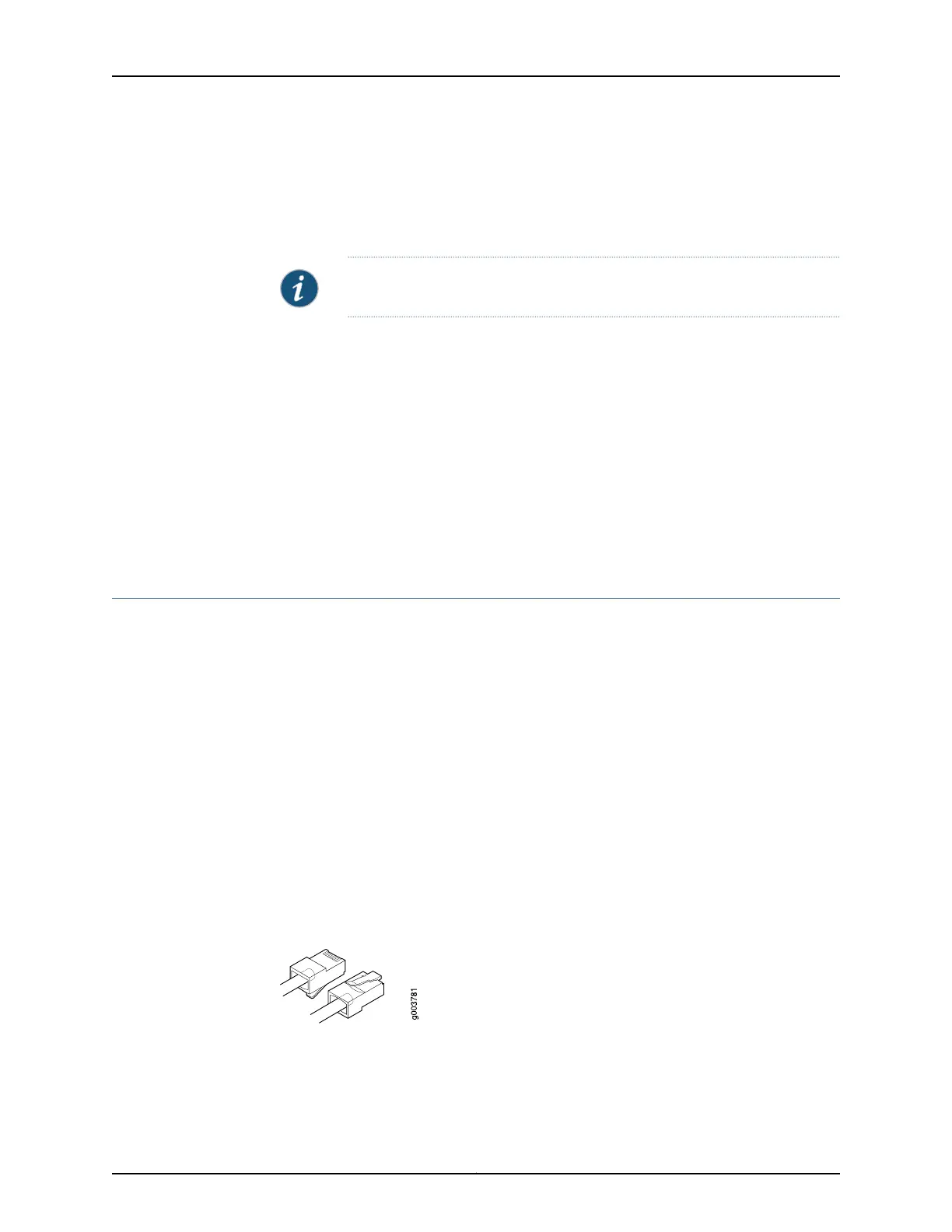

Figure 36: Ethernet Cable Connectors
Copyright © 2017, Juniper Networks, Inc.138
MX104 3D Universal Edge Router Hardware Guide

Juniper MX104 Specifications

General

Product Name	MX104
Product Series	MX Series
Switching Capacity	80 Gbps
Throughput	80 Gbps
Operating System	Junos OS
Humidity	5% to 90% non-condensing
Interfaces	10 Gigabit Ethernet, Gigabit Ethernet
Power Supply	Dual redundant AC or DC
Cooling	Front-to-back airflow
Memory	8 GB
Operating Temperature	0°C to 40°C
