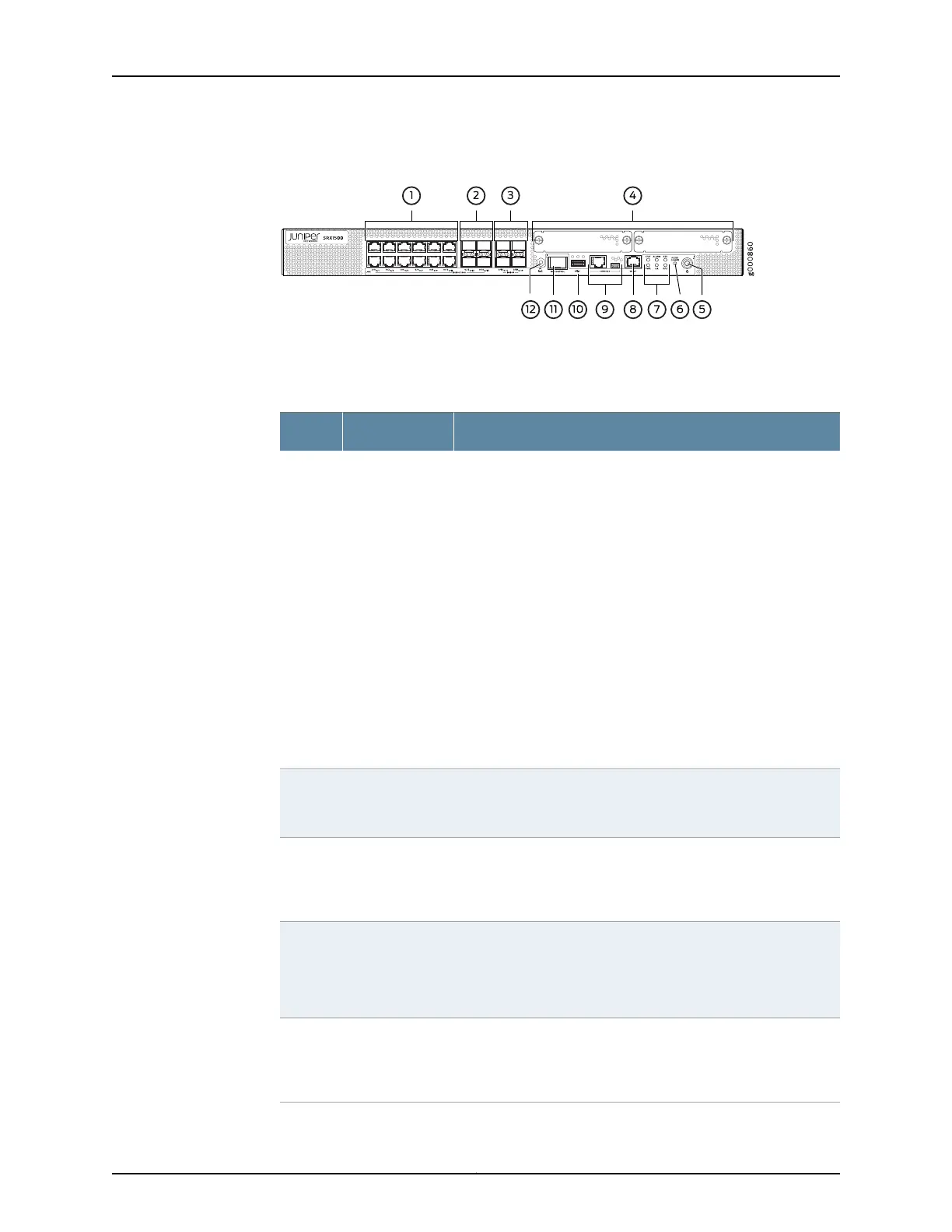

Figure 1: SRX1500 Services Gateway Front Panel
Table 3 on page 6 provides information about the front panel components of the services
gateway.
Table 3: SRX1500 Services Gateway Front Panel Components
DescriptionComponentCallout
Twelve 10/100/1000 Base-T ports.
Top: 0/0, 0/2, 0/4, 0/6, 0/8, and 0/10
Bottom: 0/1, 0/3, 0/5, 0/7, 0/9, and 0/11
The ports have the following characteristics:
•
Use an RJ-45 connector.
•
Operate in full-duplex and half-duplex modes.
•
Support flow control.
•
Support autonegotiation.
The ports can be used to:
•
Function as front-end network ports.
•
Provide LAN and WAN connectivity to hubs, switches, local
servers, and workstations.
•
Forward incoming data packets to the services gateway.
•
Receive outgoing data packets from the services gateway
10/100/1000
Base-T ports
1
Four 1G small form-factor pluggable (SFP) ports for network traffic
Top: 0/12 and 0/14
Bottom: 0/13 and 0/15
1G SFP ports2
Four 1G/10G enhanced small form-factor pluggable (SFP+) ports
for network traffic
Top: 0/16 and 0/18
Bottom: 0/17 and 0/19
1G/10G SFP+
ports
3
Two WAN PIM slots.
WAN PIMs are used toadd WAN interfacestothe servicesgateway.
NOTE: The WAN PIMs are currently not available for ordering.
WAN PIM slots4
Use the Power button to shut down the services gateway. On a
services gateway that has been previously shut down using the
Powerbutton,when the power button is pressedagainthe services
gateway starts up.
Power button5
Copyright © 2017, Juniper Networks, Inc.6
SRX1500 Services Gateway Hardware Guide
