Juniper SRX1500 - Connecting the SRX1500 Services Gateway to a Management Console; Figure 15: Connecting the SRX1500 Services Gateway to a Network for

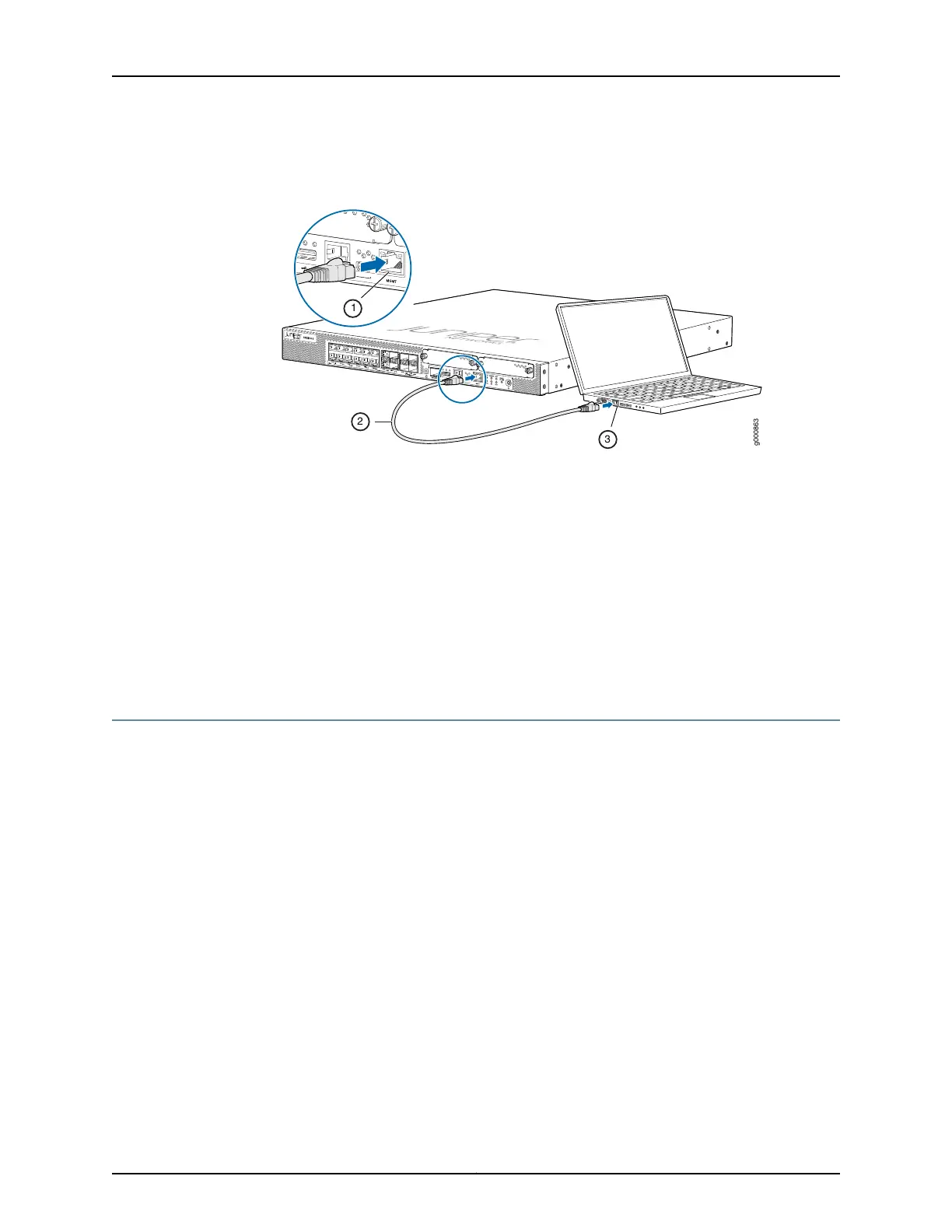

Figure 15: Connecting the SRX1500 Services Gateway to a Network for
Out-of-Band Management
g000863
1
2
3
3. Plug the other end of the cable into the management device.
Related
Documentation
Required Tools and Parts for Connecting the SRX1500 Services Gateway on page 61•
• Connecting the SRX1500 Services Gateway to a Management Console on page 62
• Connecting the SRX1500 Services Gateway Grounding Cable on page 58
• Powering On the SRX1500 Services Gateway on page 68
• Powering Off the SRX1500 Services Gateway on page 69
Connecting the SRX1500 Services Gateway to a Management Console
Use the CONSOLE port on the services gateway to connect to a management console.
To connect the SRX1500 Services Gateway to a management console, use an RJ-45
cable:
1. Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and connect
the strap to one of the ESD points on the chassis.
2. Plug the RJ-45 end of the cable into the CONSOLE port on the SRX1500 Services
Gateway as shown in Figure 16 on page 63.
