CHAPTER 13
Installing the SRX1500 Services Gateway
into a Rack
•
Installing the SRX1500 Services Gateway in a Rack on page 51
•
Installing an AC Power Supply on the SRX1500 Services Gateway on page 53
•
Installing a DC Power Supply on the SRX1500 Services Gateway on page 54
Installing the SRX1500 Services Gateway in a Rack
You can front-mount the SRX1500 Services Gateway in a rack. Many types of racks are
acceptable, including four-post (telco) racks, enclosed cabinets, and open-frame racks.
NOTE: If you are installing multiple devices in one rack, install the lowest one
first and proceed upward in the rack.
To install the services gateway in a rack:
1. Position a mounting bracket on each side of the chassis.
2. Use a number 2 Phillips screwdriver to install the screws that secure the mounting
brackets to the chassis.

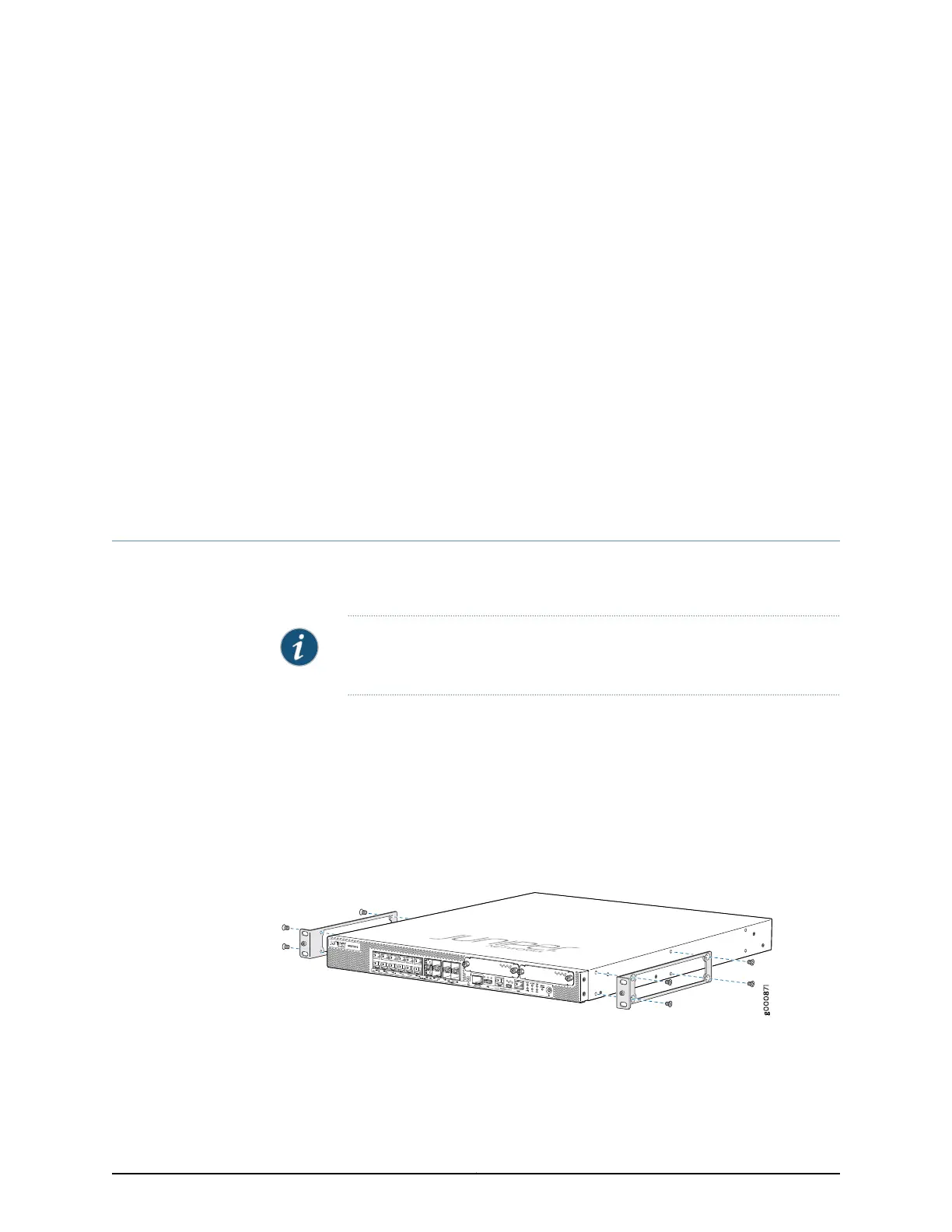

Figure 8: Installing the Mounting Brackets on the SRX1500 Services
Gateway
3. Have one person grasp the sides of the services gateway, lift it, and position it in the
rack.
