Kamstrup MULTICAL 603 Technical Description

MULTICAL®603

78
KamstrupA/S∙Technicaldescription∙5512‐2029
_
A1_GB
_
06.2017


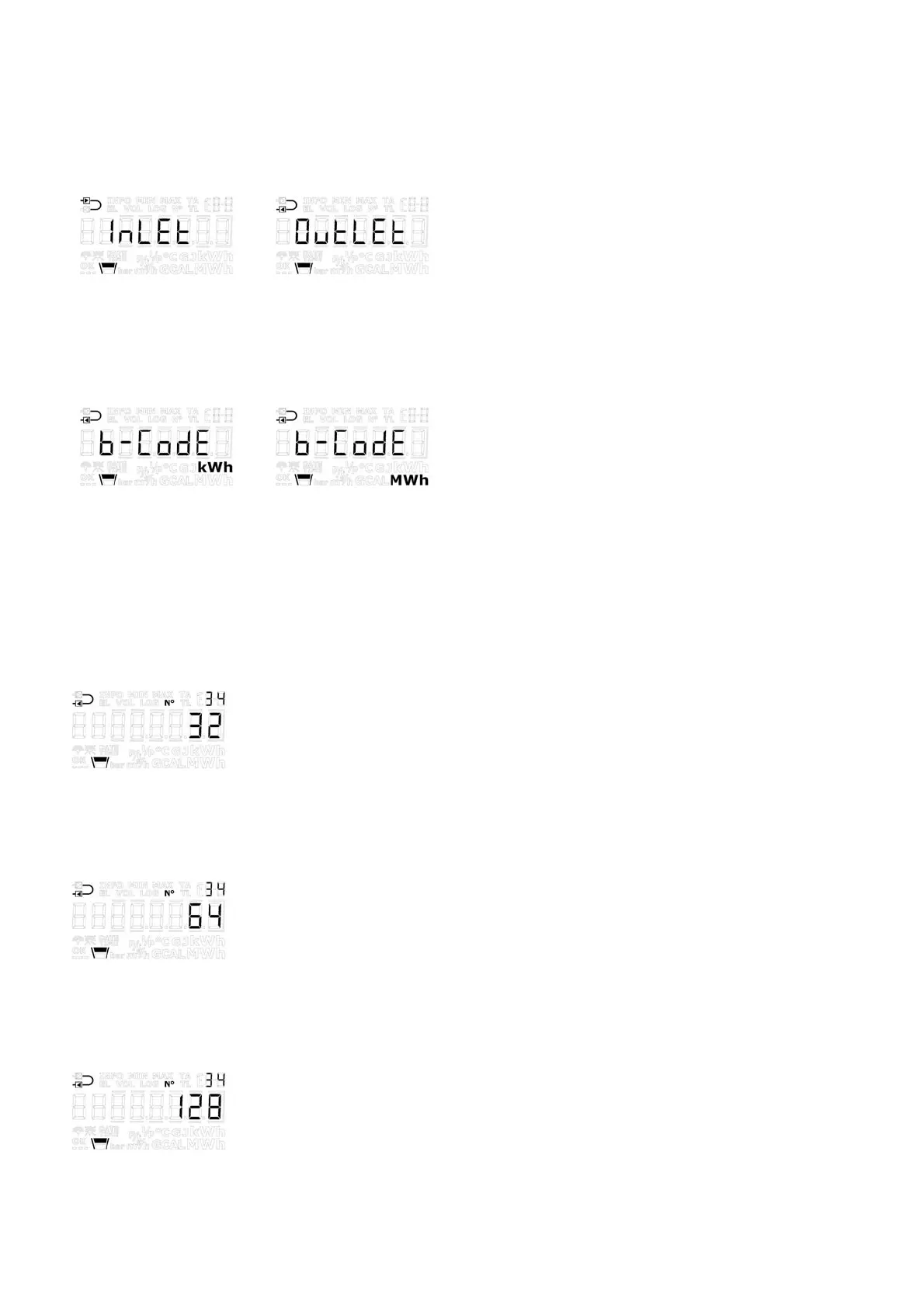

7.Flowsensorposition:Inletoroutlet(Acode)
TheinstallationpositionoftheflowsensorcanbeadjustedintheSETUPloop.Thismeansthatthemetercanbe
changedfrombeinganoutletmetertobeinganinletmeterandviceversa.Asymbolinthetopleftcorner
ofthe
meter’sdisplayshowswhetherthemeterisconfiguredasaninletoranoutletmeter.


8.Energyunit(B ‐code)
Themeter’smeasuringunit(B‐code)canbeadjustedintheSETUPloop.Itisthuspossibletoselectifthemeter’s
energyreadingsaretobe
showninkWh,MWh,GJorGcal.

Note:TheresolutionoftheenergyunitalwaysfollowstheonestatedfortheCCC‐codewithwhichagivenMULTICAL®
603isconfigured,seetheCCC‐tablesinparagraph3.2.3.NotethatMULTICAL®603automaticallyswitchestoMWhif
kWhisselected
forMULTICAL®603withaCCC‐codewherekWhisnotpossible.

9.Primaryaddressofinte r nalM‐Bus
ItispossibletosettheprimaryaddressoftheinternalM‐BusinMULTICAL®603intheSETUPloop.Theaddresscan
beselectedintheinterval0…250.


10.
Primaryaddressofm oduleslot1
Itispossibletosettheprimaryaddressofmoduleslot1inMULTICAL®603intheSETUPloop.Theaddresscanbe
selectedintheinterval0…250.


11.Primaryaddressofmo duleslot2
Itispossibletosettheprimaryaddress
ofmoduleslot2inMULTICAL®603intheSETUPloop.Theaddresscanbe
selectedintheinterval0…250.

 
