Series 2280 Precision DC Power Supply Reference Manual Section 5: Application examples
077085503 / March 2019 5-5
Configure a 10-step linear list sweep
To configure a list on the front panel:
1. Press the MENU key.
2. Under Source, highlight the List icon using either the navigation control or the soft keys. Press
ENTER.
3. Select point 1 and press ENTER to select the box.
4. Highlight Insert and press ENTER to increment the points display until it reads 10.
5. Select the Voltage box in the point 1 row. Press ENTER.
6. Make the value 1 V and press ENTER.
7. Select the Current box in the point 1 row. Press ENTER.
8. Make the value 2 A and press ENTER.
9. Select the Dwell box in the point 1 row. Press ENTER.
10. Make the value 3 s and press ENTER.
11. Repeat steps 5 to 8 for points 2 to 10 and increase the voltage by 1 V at each higher step.
12. Select the Save button to store the list in memory location 1.
13. Enter a name for the list on the displayed keypad and press ENTER.
14. Press the EXIT key.

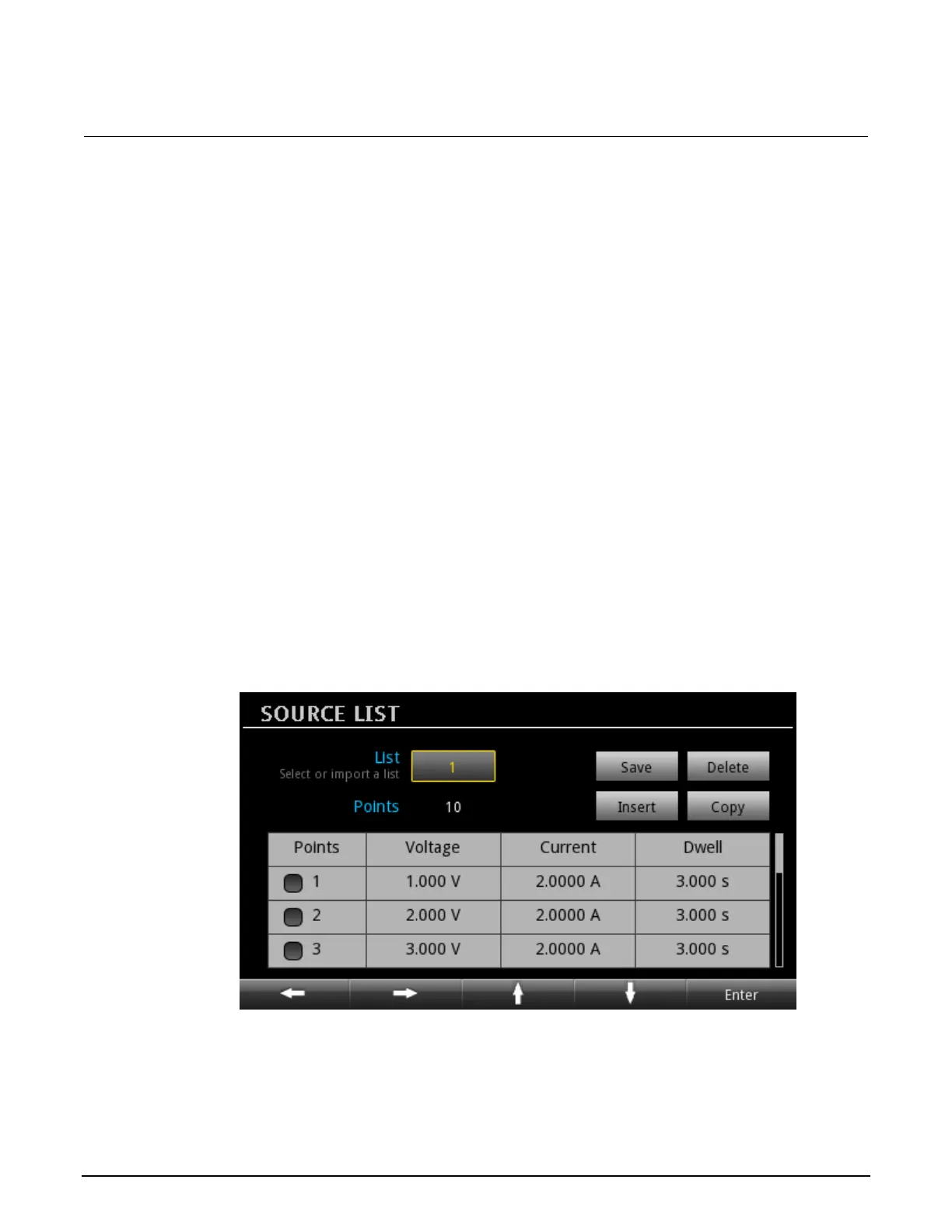

Figure 86: Edit a 10-step list
