Section 2: General operation Series 2280 Precision DC Power Supply Reference Manual
2-14 077085503 / March 2019
Menu overview
To access the main menu, press the MENU key on the Series 2280 front panel. The organization of
the main menu is shown in the figure below.

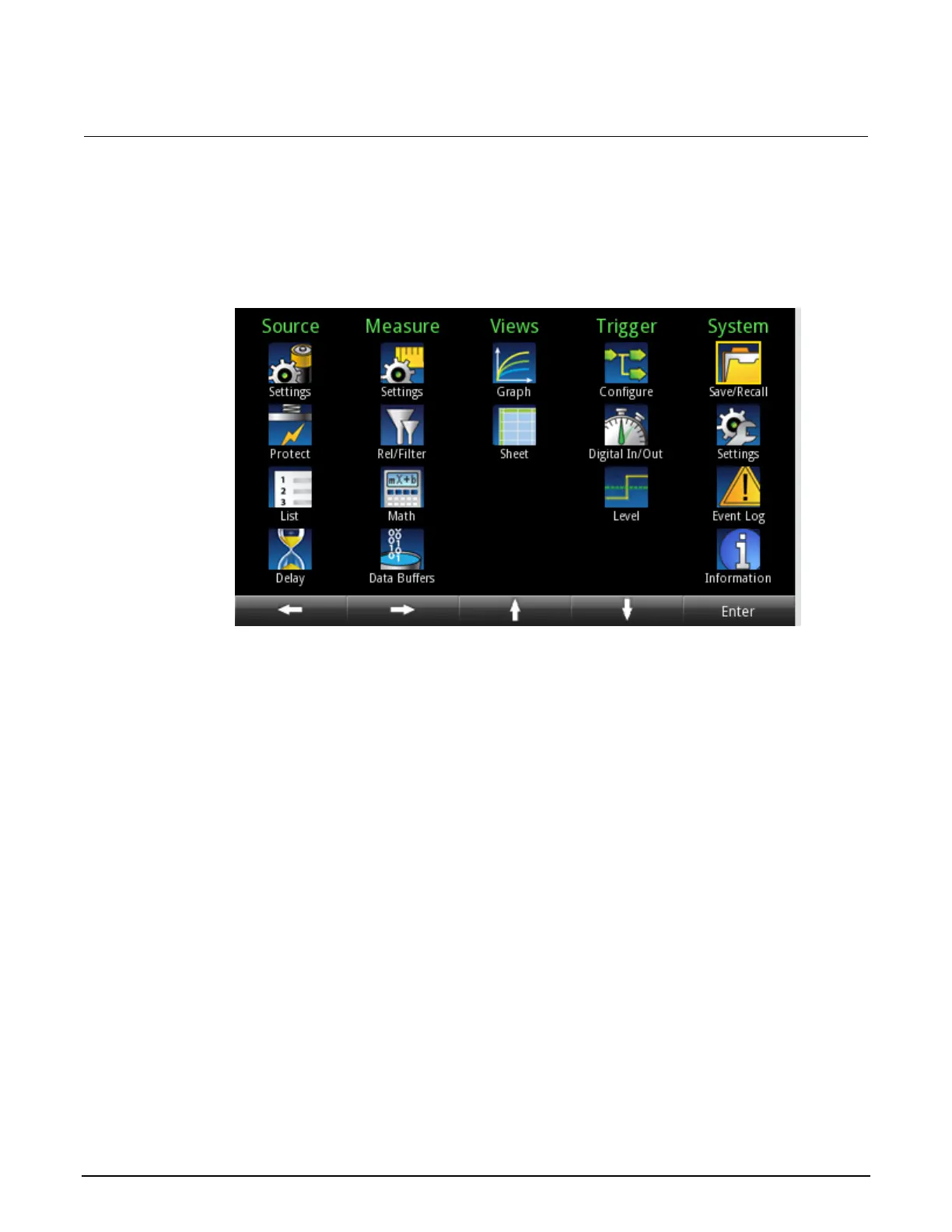

Figure 13: Power supply main menu
The main menu is organized into five submenus, which are labeled in green across the top of the
display. The icons in each column open interactive screens.
Source menu
The menus organized under Source in the main menu allow you to select, configure, and perform
source and list operations from the Series 2280 front panel. The following topics describe the settings
that are available on these interactive screens.
