Series 2280 Precision DC Power Supply Reference Manual Section 2: General operation
077085503 / March 2019 2-3
Illuminates when the instrument is controlled through a remote
interface.
Illuminates when the instrument is connected to a local area network
(LAN).
Front-panel
binding posts
Positive, negative, and ground output binding posts for output
connections.
Rear-panel overview
The rear panel of the Series 2280 is shown below; descriptions follow the figure.

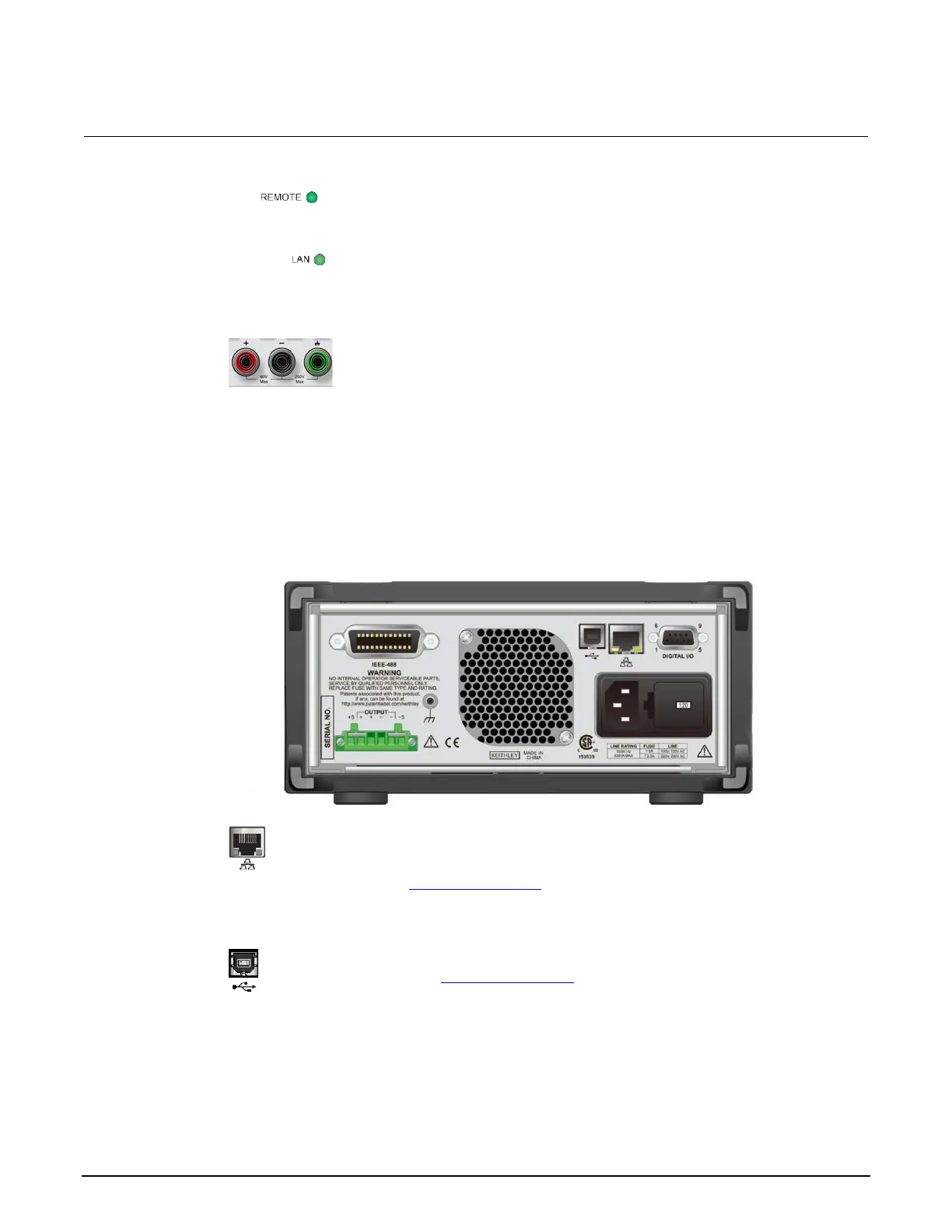

Figure 2: Series 2280 rear panel
Supports full connectivity on a 10 Mbps or 100 Mbps network. The
Series 2280 is a version 1.4 Core 2011 compliant instrument that
supports TCP/IP and complies with IEEE Std 802.3 (ethernet
LAN). See LAN communications (on page 2-48).
USB-B connection for communication, control, and data transfer.
For details, see USB communications (on page 2-64).
