Front-panel overview
The front panel of Series 2280 is shown below. Descriptions of the controls on the front panel follow
the figure.

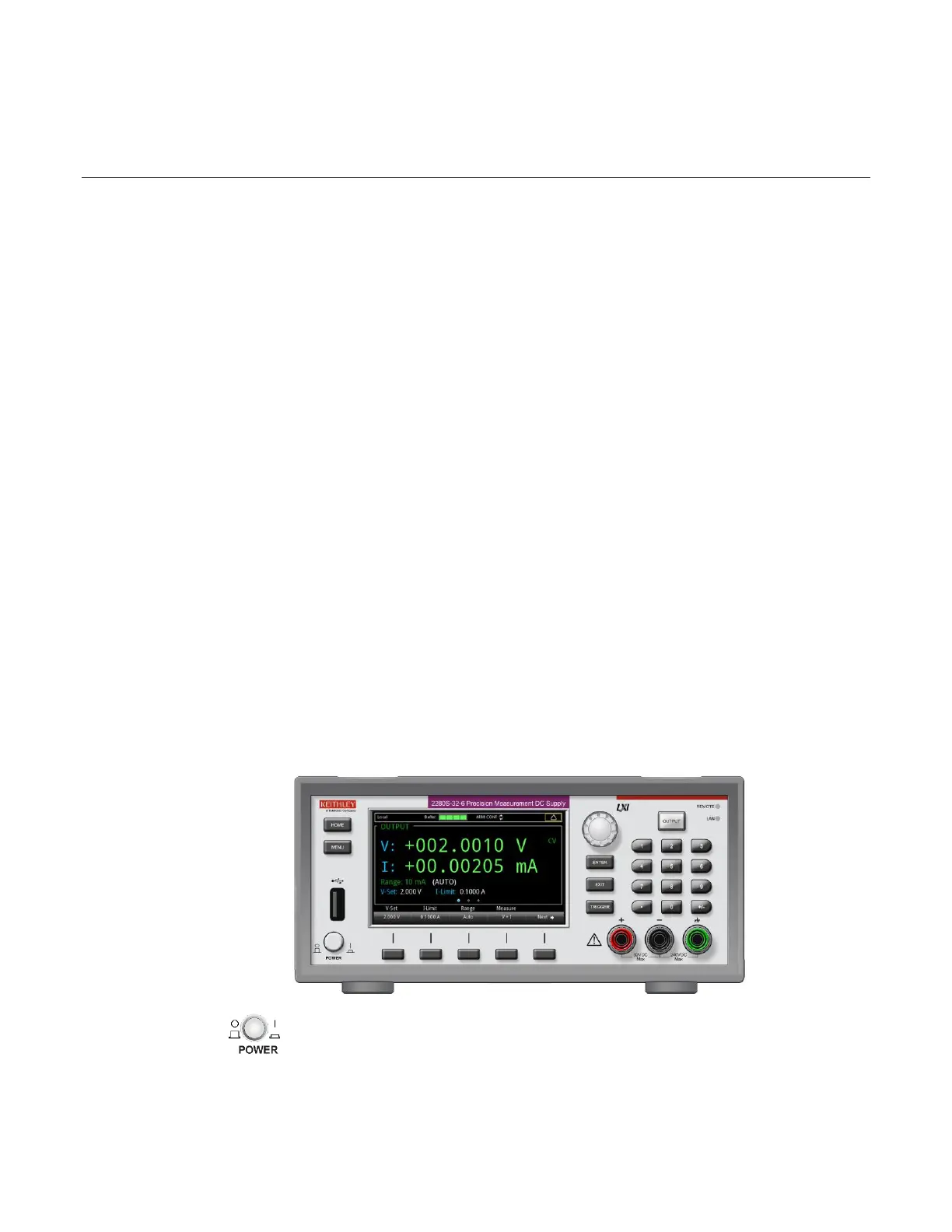

Figure 1: Series 2280 front panel
POWER switch
Turns the instrument on or off. To turn the instrument on, press
the power switch so that it is in the on position (|). To turn it off,
press the power switch so that it is in the off position (O).
