Series 2280 Precision DC Power Supply Reference Manual Section 5: Application examples
077085503 / March 2019 5-9

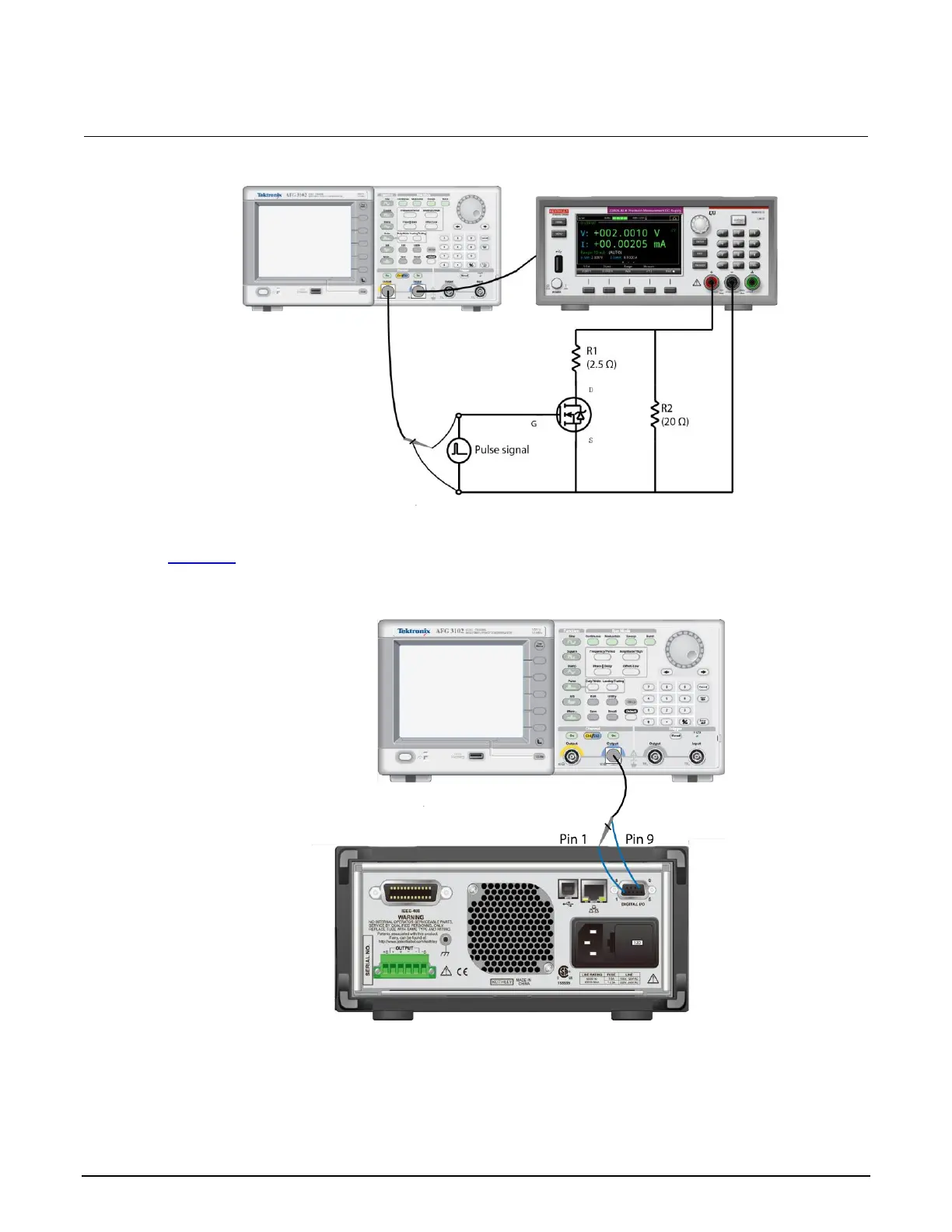

Figure 89: Fast current measurements setup
Connect the digital I/O pin 1 and pin 9 with the AFG output channel. For details on digital I/O, refer to
Digital I/O (on page 3-19).
Figure 90: Digital I/O connection
