To reduce the environmental noise, load wires and sense wires must be twisted. For more
information, refer to the following figure.

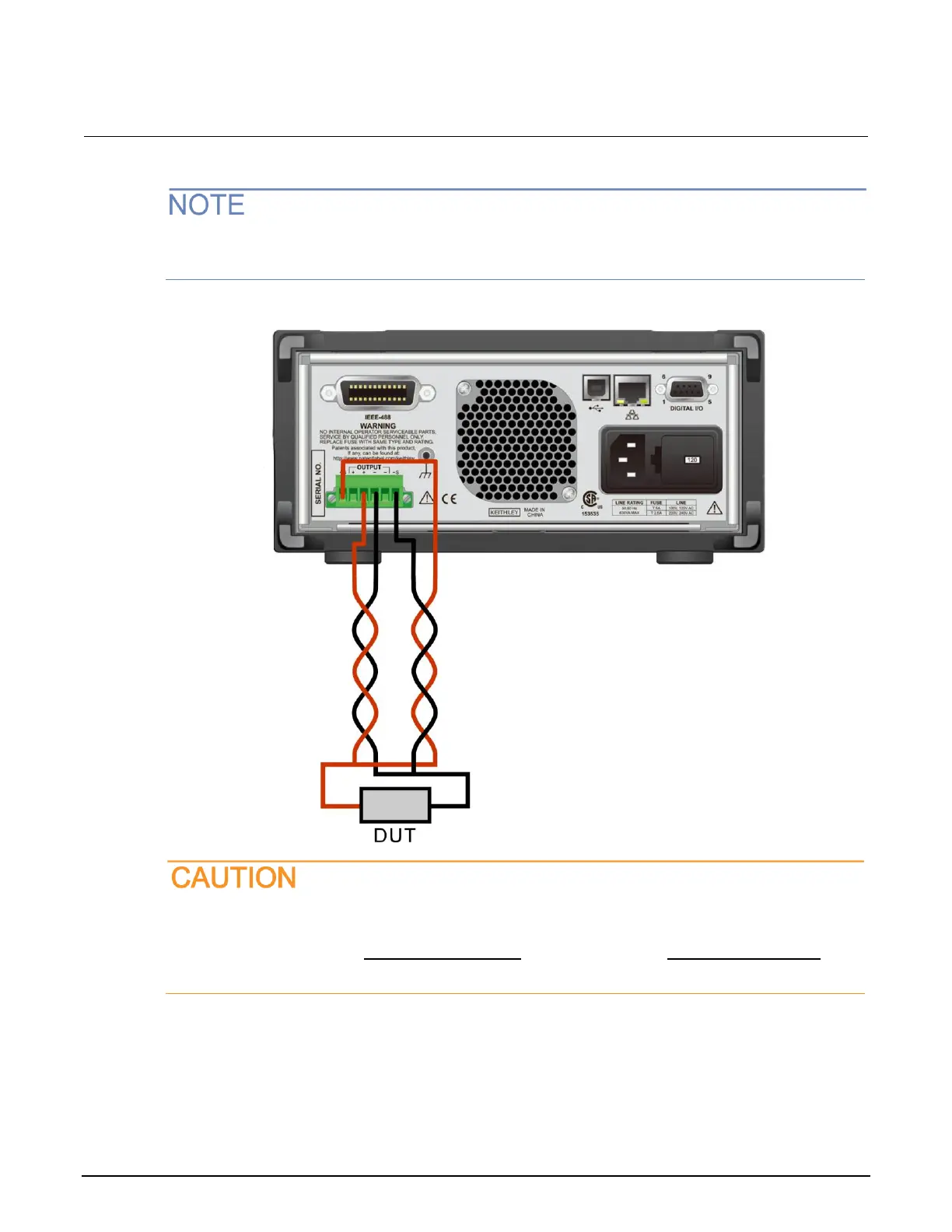

Figure 26: Four-wire connection with twisted-pair wires
Make sure you make the connections correctly. Incorrect connections between output and
sense terminals will result in a serious error and may damage the device under test (DUT).
For more information, see Open leads detection (on page 2-42) and Reverse sense leads (on
page 2-43).
