Keithley 2600B User Manual

Series 2600B
System SourceMeter® Instrument Reference Manual Section 3:
Functions and features
2600BS-901-01 Rev. C / August 2016 3-21

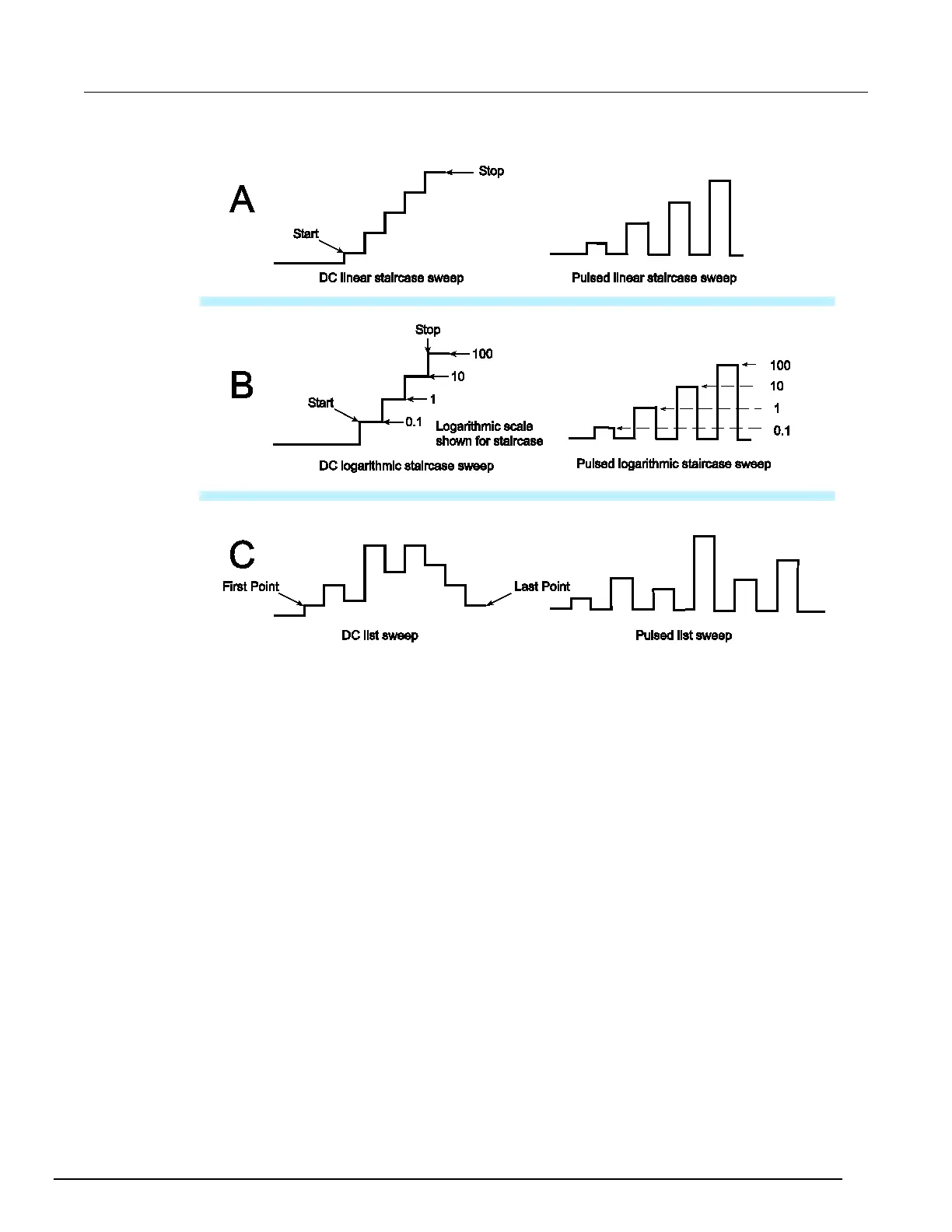

Figure 52: Sweep types
DC and pulsed linear staircase sweeps (A): With this type of sweep, the voltage or current
increases or decreases in fixed steps, beginning with a start voltage or current and ending with a stop
voltage or current. This portion of the figure (A) shows an increasing linear staircase sweep and a
pulsed staircase sweep. Pulsed linear staircase sweeps function the same way that DC linear
staircase sweeps function, except that pulsed linear staircase sweeps return to the idle level between
pulses.
DC and pulsed logarithmic staircase sweeps (B): In this type of sweep, the current or voltage
increases or decreases geometrically, beginning with a start voltage or current and ending with a stop
voltage or current. This portion of the figure (B) shows an increasing logarithmic staircase sweep and
a pulsed logarithmic staircase sweep. Pulsed logarithmic staircase sweeps function the same way
that DC logarithmic staircase sweeps function, except that pulsed logarithmic staircase sweeps return
to the idle level between pulses.
DC and pulsed list sweeps (C): The list sweep allows you to program arbitrary sweep steps
anywhere within the output voltage or current range of the Series 2600B. This portion of the figure (C)
shows a list sweep with arbitrary steps and a pulsed list sweep. Pulsed list sweeps function the same
way that DC list sweeps function, except that pulsed list sweeps return to the idle level between
pulses.
