2: General operation Series 2600B System SourceMeter® Instrument
2-24 2600BS-901-01 Rev. C / August 2016
Display mode
Use the DISPLAY key to scroll through the various display modes shown in the figure below. Refer to
Display operations (on page 3-70
) for more information about the display.
For the Models 2602B, 2604B, 2612B, 2614B, 2634B, and 2636B only, press the DISPLAY key more
than once to cycle through the dual channel and single channel display modes. This applies to
CHANNEL A (SMU A) and CHANNEL B (SMU B).
The Models 2601B, 2611B, and 2635B have a single channel (SMU A).

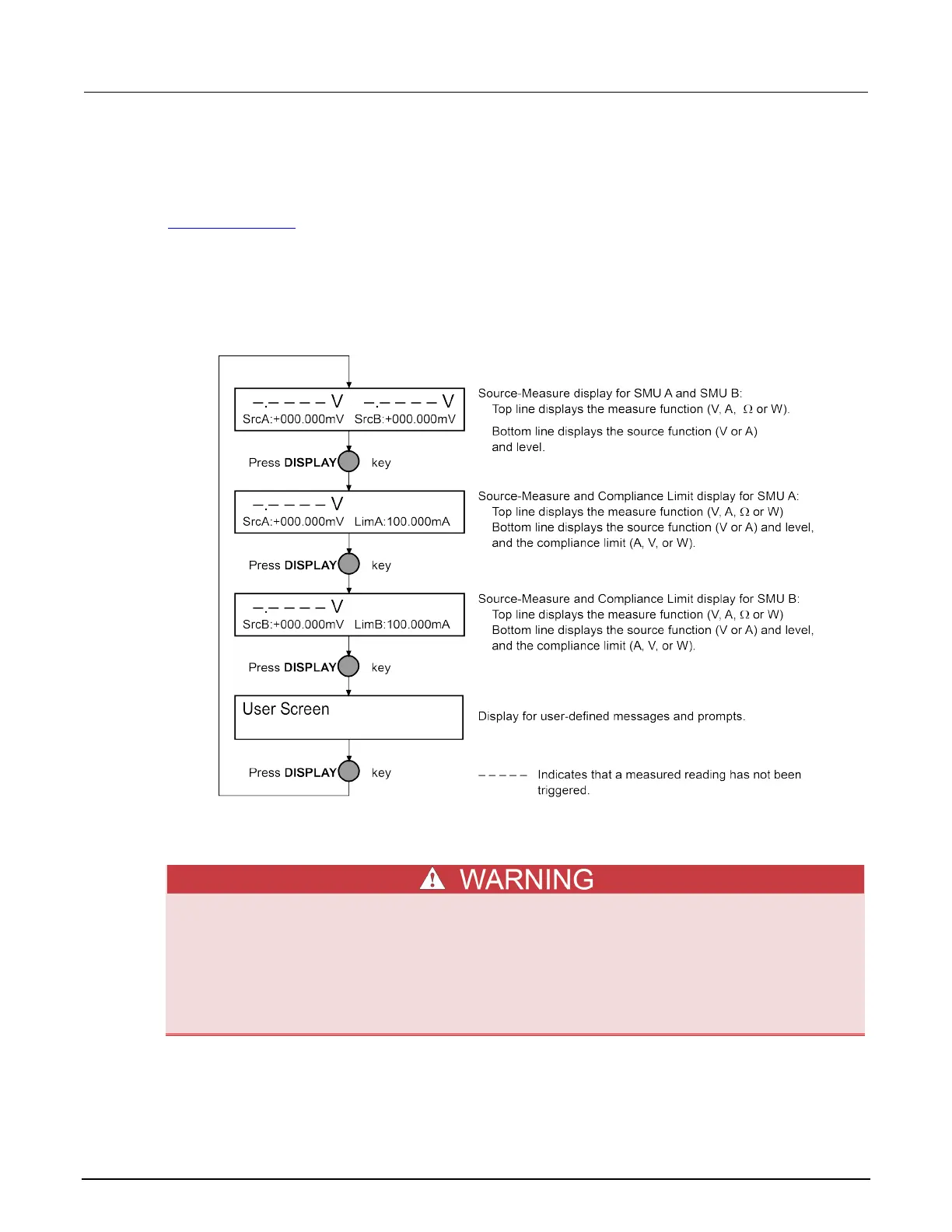

Figure 9: Display modes
Basic operation
For the Models 2611B, 2612B, 2614B, 2634B, 2635B, and 2636B, hazardous voltages may
be present on all output and guard terminals. To prevent electrical shock that could cause
injury or death, never make or break connections to the Series 2600B while the instrument
is powered on. Turn off the equipment from the front panel or disconnect the main power
cord from the rear of the Series 2600B before handling cables. Putting the equipment into
standby does not guarantee that the outputs are powered off if a hardware or software fault
occurs.
