The asymptote is used to change the inflection of the sweep curve and allow it to sweep through

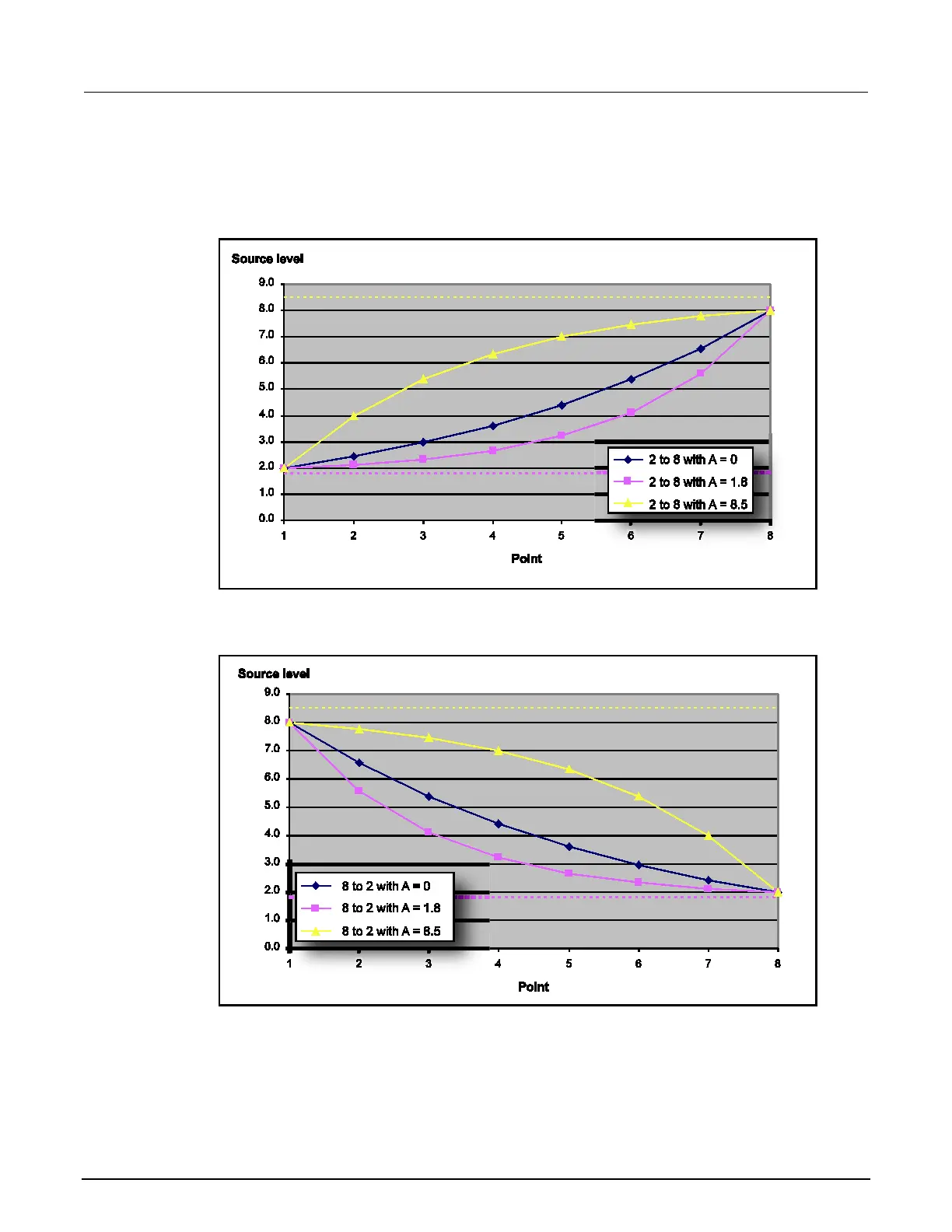

zero. Both of the following figures depict the effect of the asymptote on the inflection of the sweep
curve. The following two figures show sample sweeps.
Figure 54: Increasing logarithmic sweep
Figure 55: Decreasing logarithmic sweep
