Keithley 2600B User Manual

Series 2600B
System SourceMeter® Instrument Reference Manual Section 3:
Functions and features
2600BS-901-01 Rev. C / August 2016 3-59
Output characteristics:
• Configured trigger events, as well as the digio.trigger[N].assert() and
tsplink.trigger[N].assert() commands, cause the physical line state to float high during
the trigger pulse duration.
• An action overrun occurs if the physical line state is high while a stimulus event occurs.

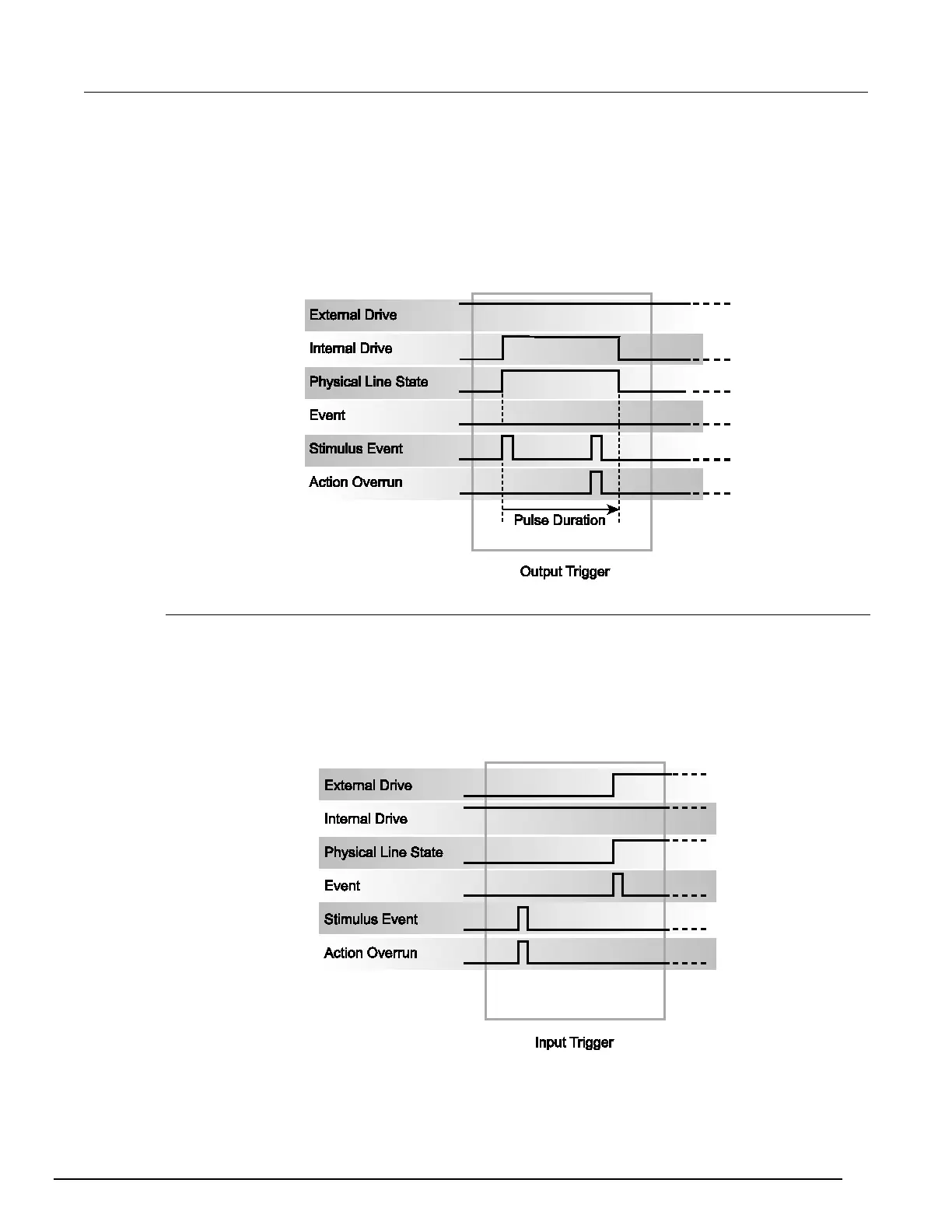

Figure 72: RisingM output trigger
Rising edge acceptor trigger mode
The rising edge acceptor trigger mode (RisingA) generates a low pulse and detects rising edge
pulses (see the following figures).
Input characteristics:
• All rising edges generate an input event.
Figure 73: RisingA input trigger
