B: Calibration Series 2600B System SourceMeter® Instrument
B-34 2600BS-901-01 Rev. C / August 2016
D. Before continuing, be sure to complete steps 1 through 22 for the 100 nA to 1 A ranges before
continuing with 3 A and 10 A range calibration (Model 2601B/2602B/2604B) or 1.5 A and 10 A
range calibration (Model 2611B/2612B/2614B/2634B/2635B/2636B).
E. Change connections as shown in the following figure.

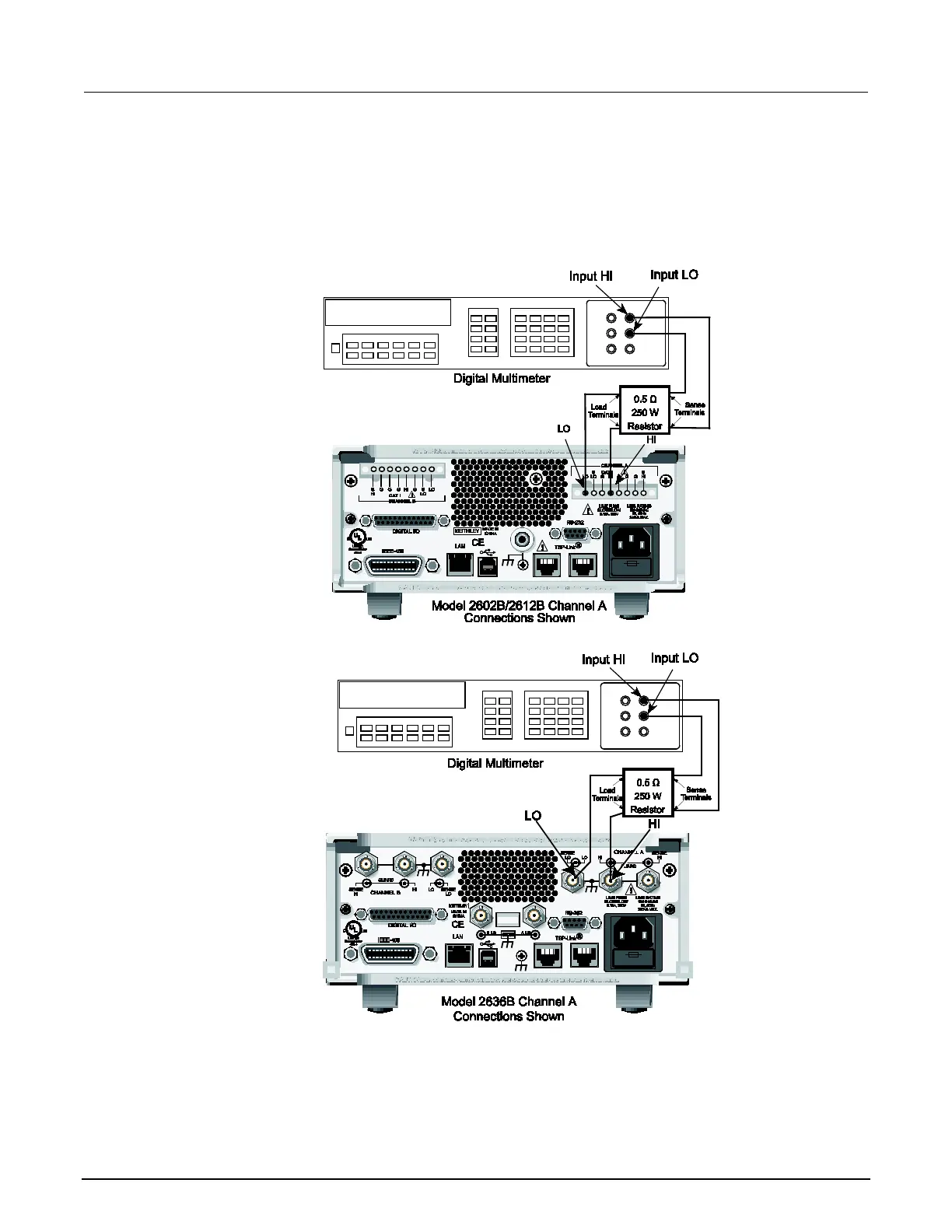

Figure 148: Connections for 1.5 A and 3 A current ranges
