System SourceMeter® Instrument Reference Manual Appendix C:
LAN concepts and settings
2600BS-901-01 Rev. C / August 2016 C-3

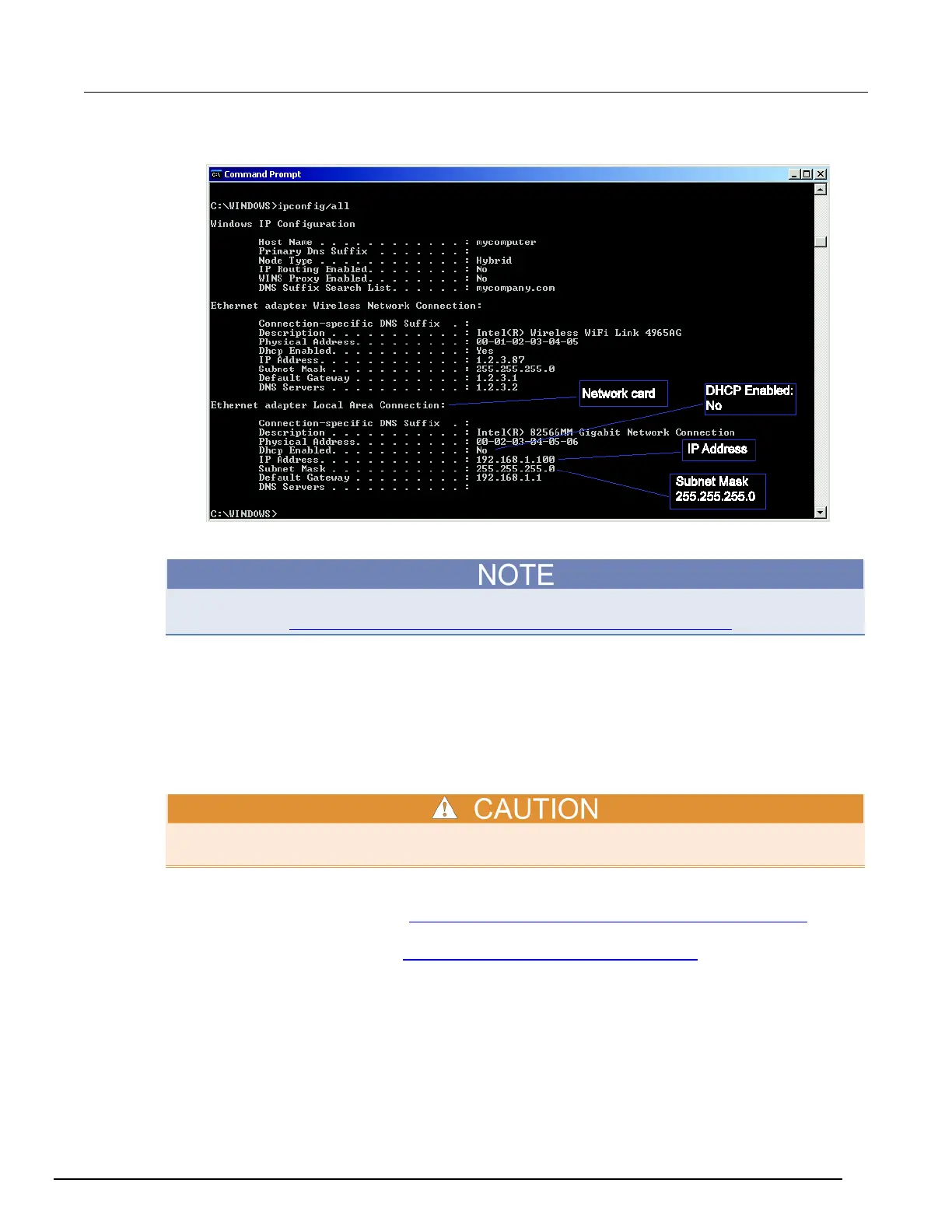

Figure 151: Computer IP configuration using the command prompt
If the information for the ethernet adapter displays "Media Disconnected," close the command
prompt and go to Step 2: Disable DHCP to use the computer's existing IP address (on page C-4).
3. When the information is displayed, record the following information for the network card:
• DHCP mode: _______________________________
• IP address: ________________________________
• Subnet mask: ______________________________
• Default gateway: ____________________________
• DNS servers: _______________________________
The ipconfig/all command displays the configuration of every network card. Make sure that you
record the information for the proper network card.
1. If:
• DHCP Enabled = Yes: Go to Step 2: Disable DHCP to use the computer's existing IP address (on page
C-4)
• DHCP Enabled = No: Go to Step 3: Configure the instrument's LAN settings (on page C-8).
1. To exit the IP configuration screen, type exit at the command prompt and press Enter.
