2: General operation Series 2600B System SourceMeter® Instrument
Reference Manual
2-60 2600BS-901-01 Rev. C / August 2016

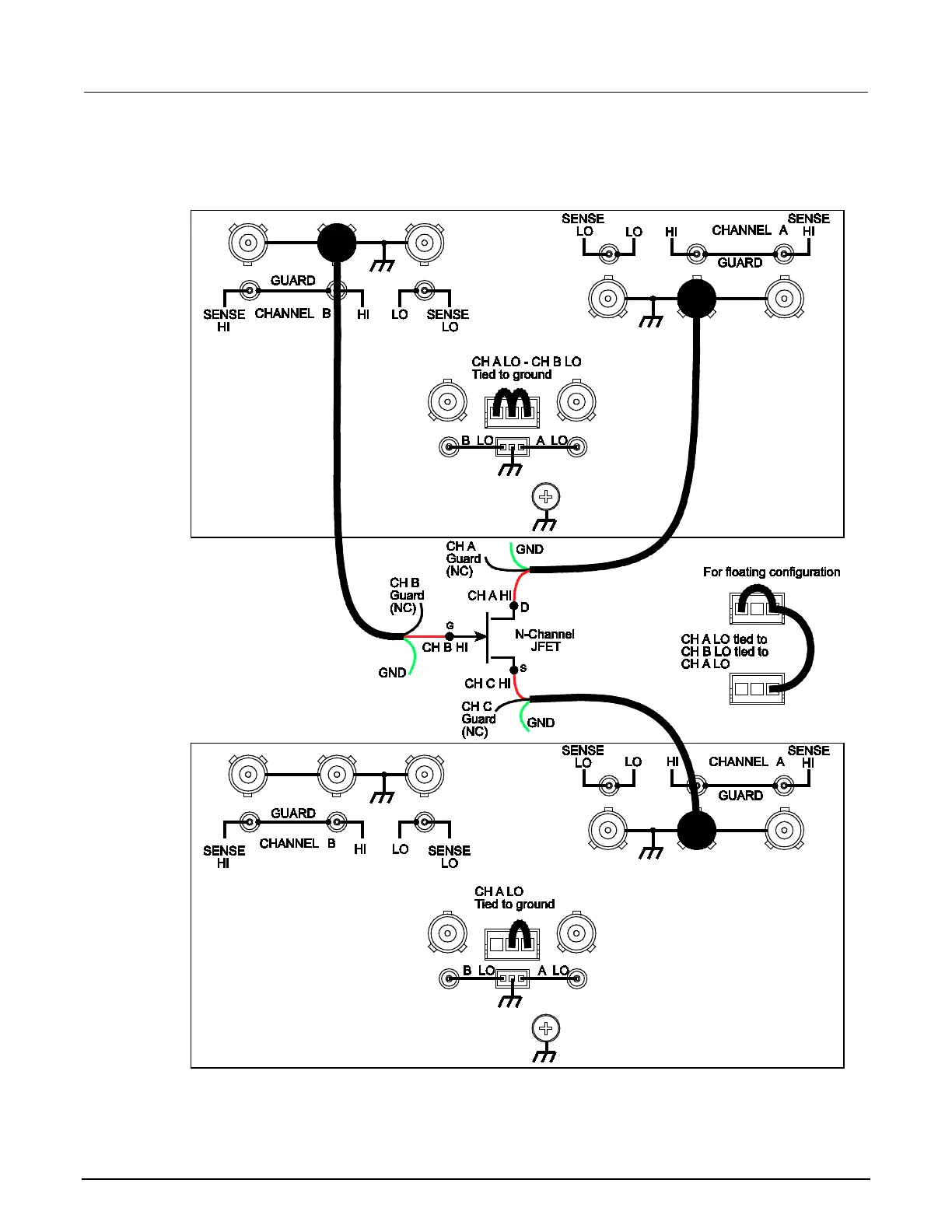

Figure 25: Model 2636A three SMUs connected to a 3-terminal device (local sensing, non-
floating)
