Section 14: SCPI command reference Model 6517B Electrometer Reference Manual
14-110 6517B-901-01 Rev. C / August 2015
Measurement event Positive transition effect on transition filter event register
Reading overflow Sets B0 when reading exceeds range limits
Low limit 1 Sets B1 when reading is less than the low limit 1 setting
High limit 1 Sets B2 when reading is greater than the low limit 1 setting
Low limit 2 Sets B3 when reading is less than the low limit 2 setting
High limit 2 Sets B4 when reading is greater than the high limit 2 setting
Reading available Sets B5 after a reading is taken and processed
Reading underflow Sets B6 when an ohms reading is below the lower range limit
Buffer available Sets B7 when the trace buffer has at least two readings
Buffer half-full Sets B8 when the trace buffer becomes half-full
Buffer full Sets B9 when the trace buffer becomes full
Sequence reading available Sets B10 when an alternating polarity test sequence is being read
Buffer pretriggered Sets B11 when the trace buffer pretrigger event occurs
Out of Limits Sets B12 when a noise spike occurs
Fixture lid closed Sets B13 when fixture lid is closed
V-source compliance Sets B14 when V-source goes in compliance

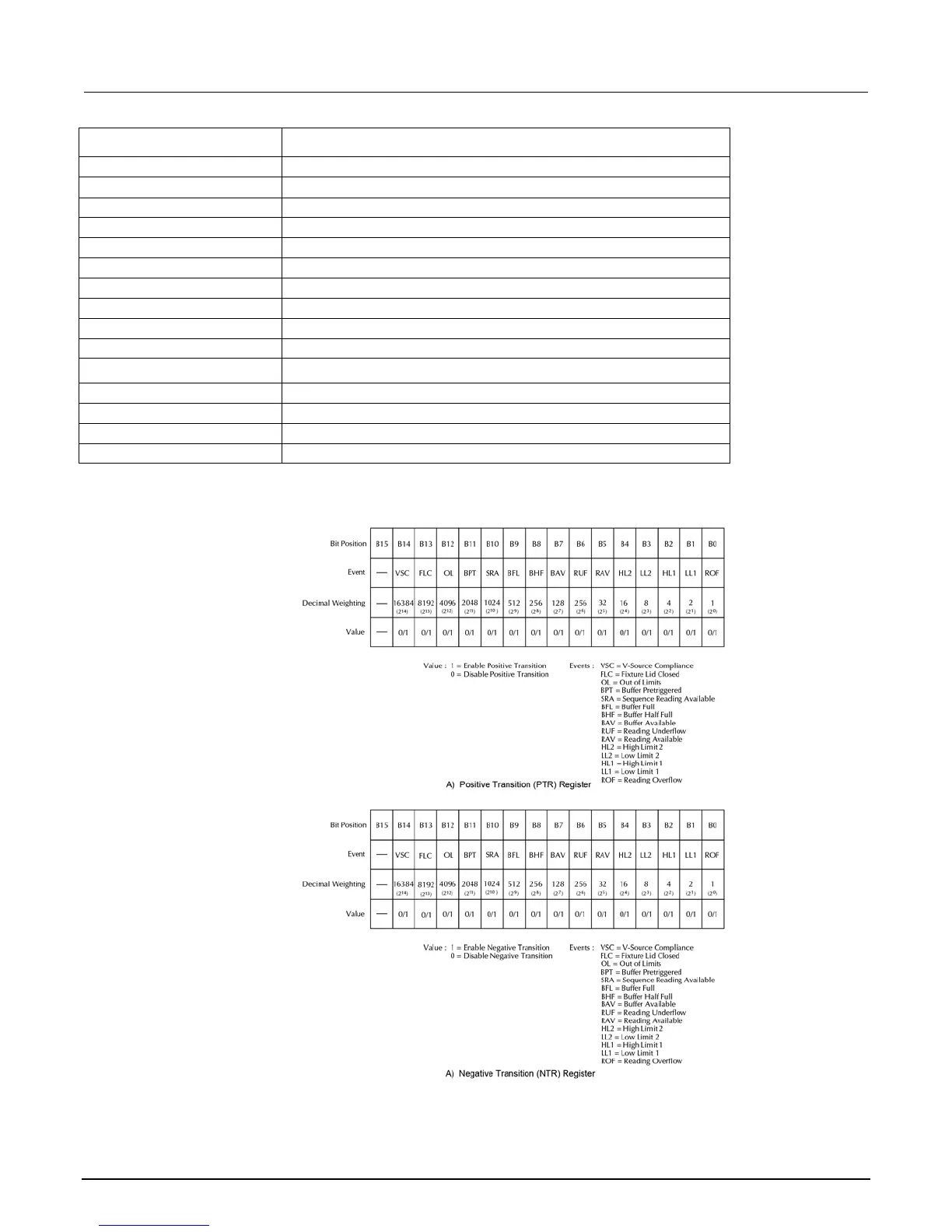

Figure 128: Transition filter
