4-10 Keysight E5260/E5270 User’s Guide, Edition 6
Front Panel Reference
Front Panel Key Details
Front Panel Key Details

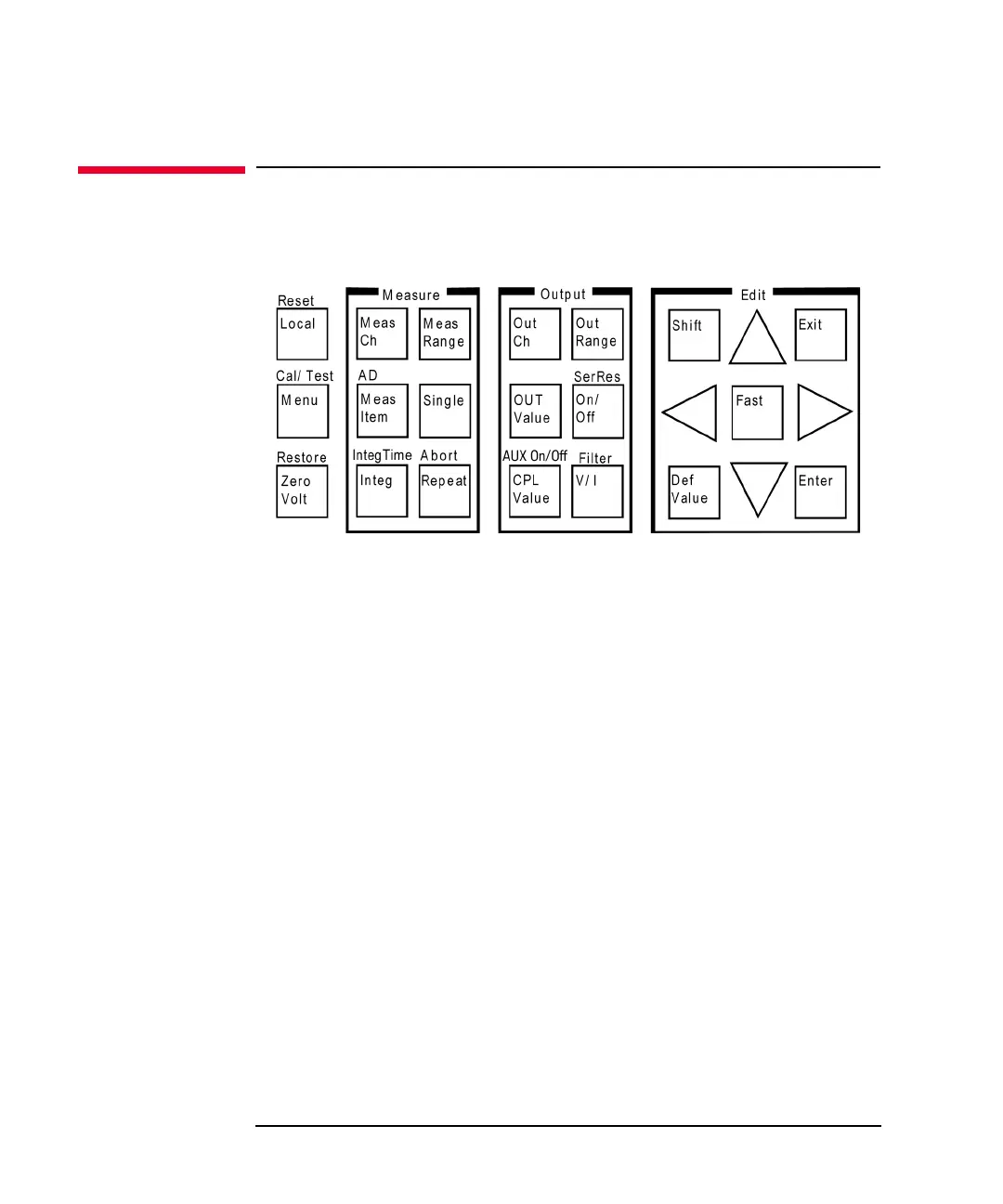

The front panel keys are used to change the instrument settings, apply DC bias,
measure DC current or voltage, and so on.
When the Change Setup area is displayed, only the Edit keys except for the
Shift
key
are available.
Local Sets the Keysight E5260/E5270 to the local condition.
Reset
(Shift+Local)
Displays the following message. Press the arrow key to set YES, and then press the
Enter
key to reset the instrument.
Reset: NO
Menu Displays the setup menu in the Change Setup area. See “Setup Menu” on page 4-18.
Cal/Test
(Shift+Menu)
Displays the calibration and test menu in the Change Setup area. See “Calibration
and Test Menu” on page 4-25.
ZeroVolt Displays the following message. Press the arrow key to set YES, and then press the
Enter
key to store the present source settings and change the source output to 0 V. If
the message shows No enabled channel, press the
Exit
key.
0 V Output: NO
Restore
(Shift+ZeroVolt)
Displays the following message. Press the arrow key to set YES, and then press the
Enter
key to restore the source settings stored by the
ZeroVolt
key operation. If the
message shows No stored data, press the
Exit
key.
Restore: NO
