Keysight E5260/E5270 User’s Guide, Edition 6 4-11
Front Panel Reference
Front Panel Key Details

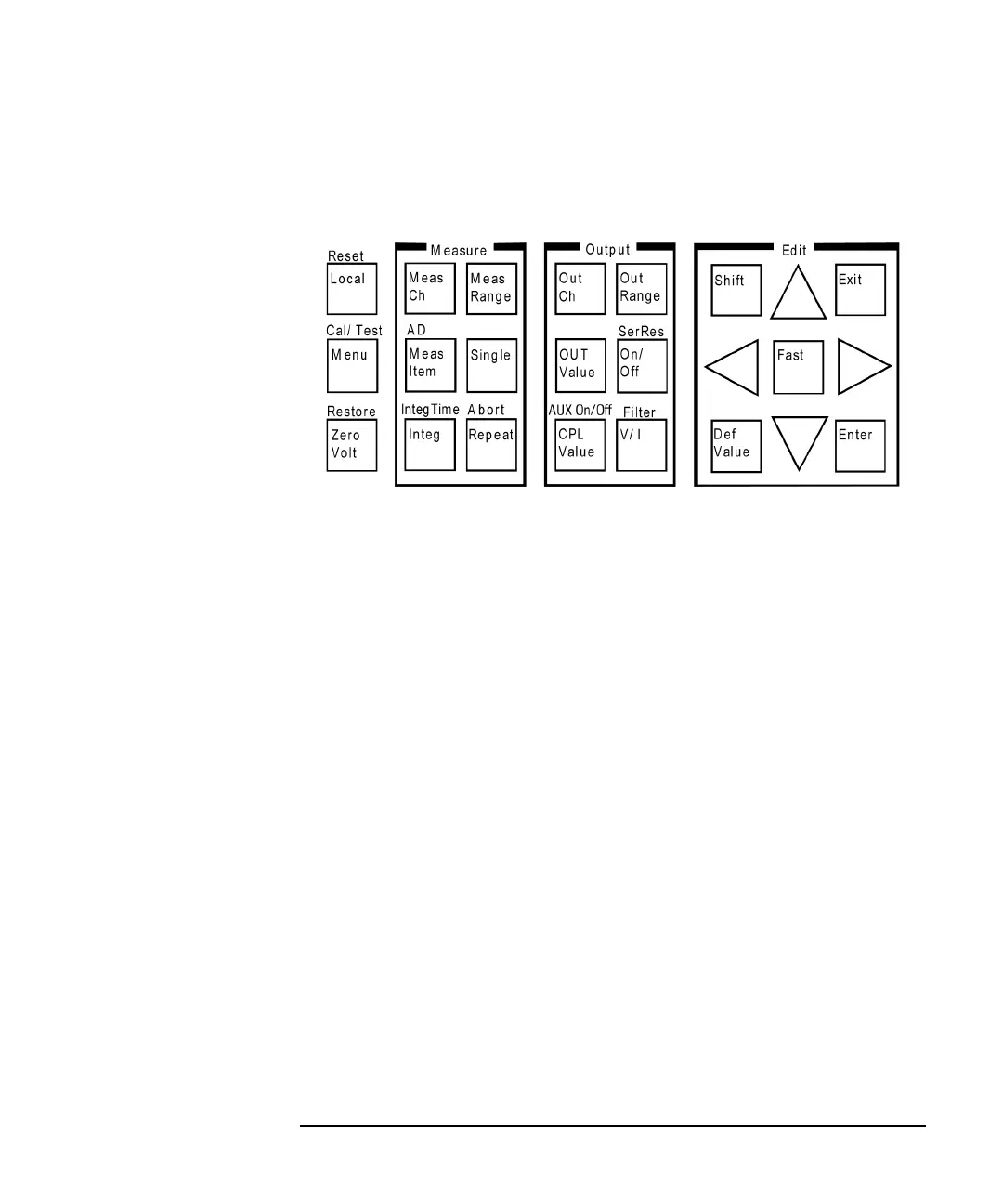

Measure key group
The Measure key group is used to set up the measurement condition and start
measurement.
MeasCh Selects the measurement channel effective for the data displayed in the Meas Data
area. Press the
MeasCh
key repeatedly until the desired channel number appears in
the M-ch status area.
MeasItem Selects the measurement item, DC voltage or current, both DC voltage and current,
resistance, or power.
Press the
MeasCh
key to specify the measurement channel, and press the
MeasItem
key repeatedly until the desired measurement item appears in the Meas Data area.
The measurement item can be specified for each measurement channel.
AD
(Shift+MeasItem)
The Keysight E5260 series does not have this shift key. Available only for the
Keysight E5270B. This shift key operation displays the following message.
[M-ch #] AD Type: H-SPEED or H-RESOLN
where # is 1 or 2 for the 2-ch mainframe, 1, 2, ... or 8 for the 8-ch mainframe.
Press the
MeasCh
key to specify the measurement channel, and press the arrow key
to select the A/D converter type, H-SPEED or H-RESOLN. Then, press the
Enter
key to make the setup effective, or press the
Exit
key to cancel changing the setup.
H-SPEED Selects the high-speed A/D converter that is mounted on each
module. For high speed measurement.
H-RESOLN Selects the high-resolution A/D converter that will be shared by
multiple measurement modules. For reliable and accurate
measurement.
The AD type can be specified for each measurement channel.
To Next Page
