Keysight E5260/E5270 User’s Guide, Edition 6 4-5
Front Panel Reference
Display and Front Panel Keys

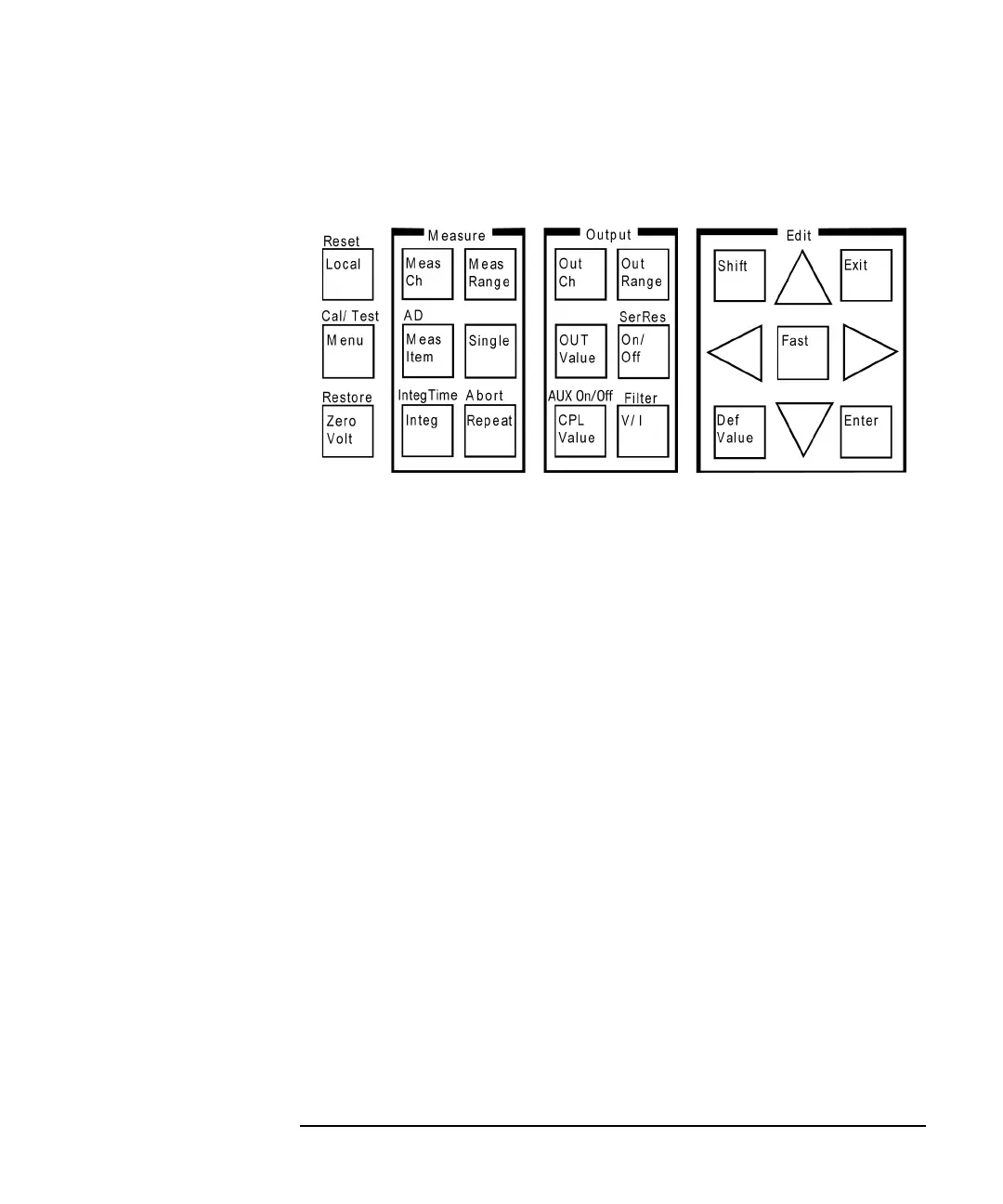

Front Panel Key Locations
The following 24 front panel keys are available.
Local
key sets the Keysight E5260/E5270 to the local condition.
Menu
key displays a setup menu. See “Setup Menu” on page 4-18.
ZeroVolt
key stores the present source settings and changes the output to 0 V.
Measure key group is used to set up the measurement condition and start
measurement. See “Measure key group” on page 4-11.
Output key group is used to set up the source condition and apply the source output.
See “Output key group” on page 4-14.
Edit key group is used to move the cursor in the display, make the setup effective,
return to the previous menu or display, and so on.
Shift
key enables use of the sub key function. The sub key label has been printed on
the front panel above the key. The label color is blue.
DefValue
key applies the default value to the setup item specified by the cursor in the
display area.
Fast
key is used with the arrow key. Pressing the
Fast
key and an arrow key speeds
up changing the setting value.
Exit
key returns to the previous menu or display without making the setup effective.
Enter
key makes the setup effective, and returns to the previous menu or display.
For details of the front panel keys, see “Front Panel Key Details” on page 4-10.
