E5291A High Speed MPSMU
This section describes typical specification of the medium power source/monitor
unit (MPSMU) for the Keysight E5260A. The E5291A cannot be used with the
E5270B.
• Maximum voltage, current, output power: ± 100 V, ± 200 mA, 4 W
• Minimum range: 2 V, 100 nA
• Output/measurement value and resolution: see Table 2-5 to Table 2-8.

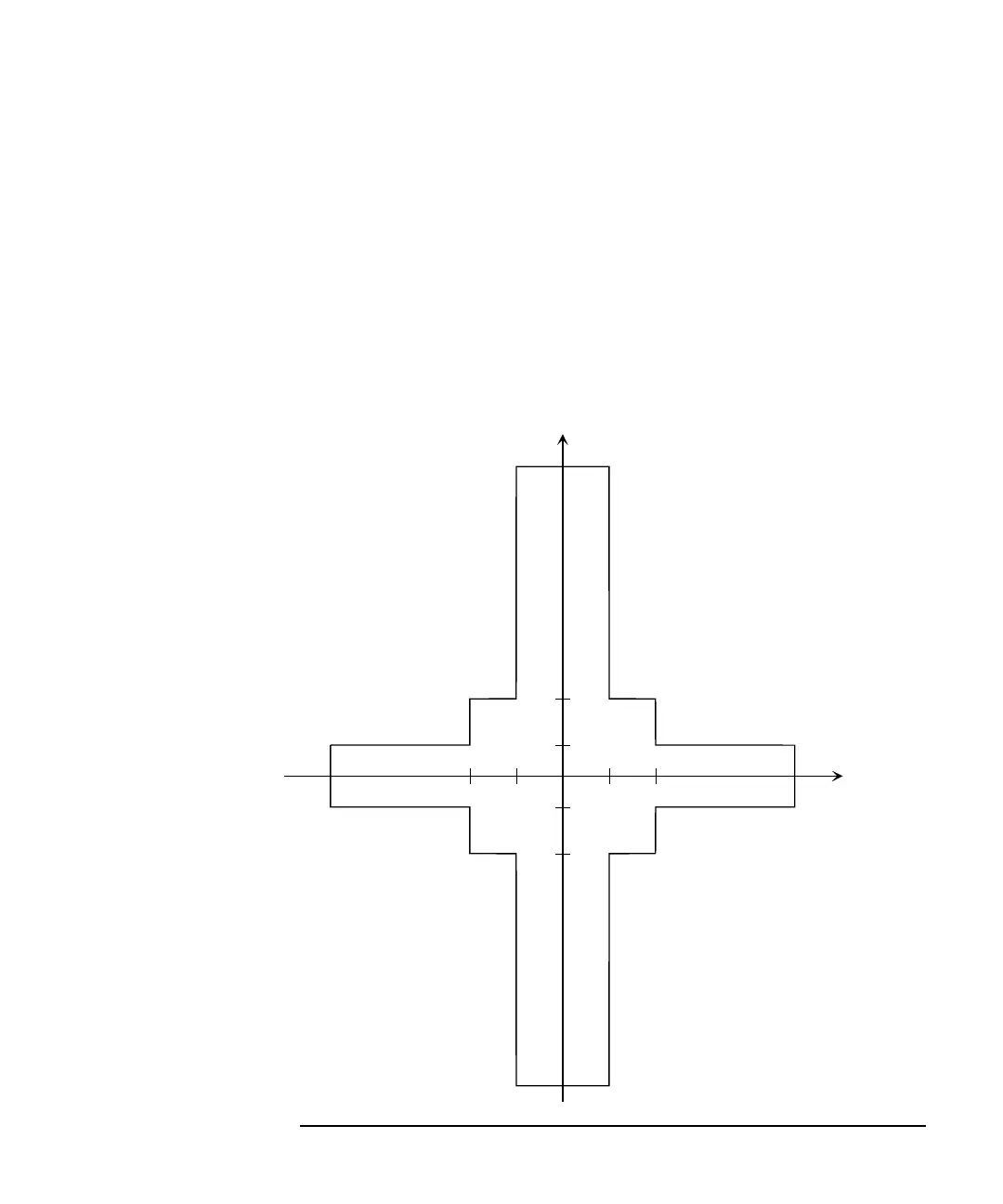

Figure 2-7 MPSMU Output and Measurement Ranges
100 -100
40-40 20-20
200
50
20
-50
-20
-200
Voltage (V)
Current (mA)
