2-10 Keysight E5260/E5270 User’s Guide, Edition 6
Introduction
Measurement Modules
E5280B Precision HPSMU
This section describes typical specification of the high power source/monitor unit
(HPSMU) for the Keysight E5270B. The E5280B cannot be used with the E5260A.
Maximum voltage, current, output power: ± 200 V, ± 1 A, 20 W
Minimum range: 2 V, 1 nA
Output/measurement value and resolution: see Table 2-1 to Table 2-4.

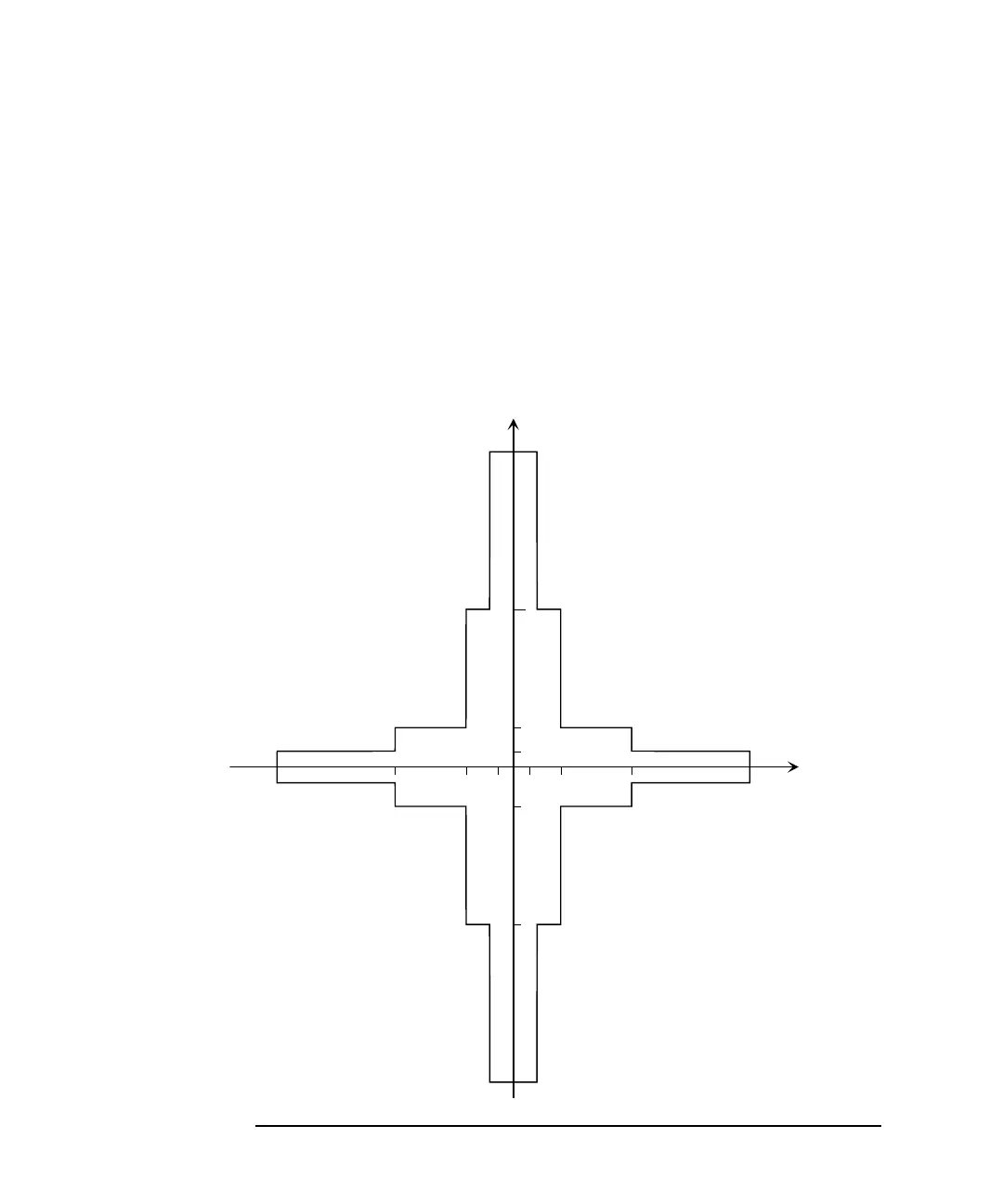

Figure 2-3 HPSMU Output and Measurement Ranges
200 -200
100-100
40-40
1000
50
125
-1000
Voltage (V)
Current (mA)
20
500
-500
-20
-125
