4-14 Keysight E5260/E5270 User’s Guide, Edition 6
Front Panel Reference
Front Panel Key Details

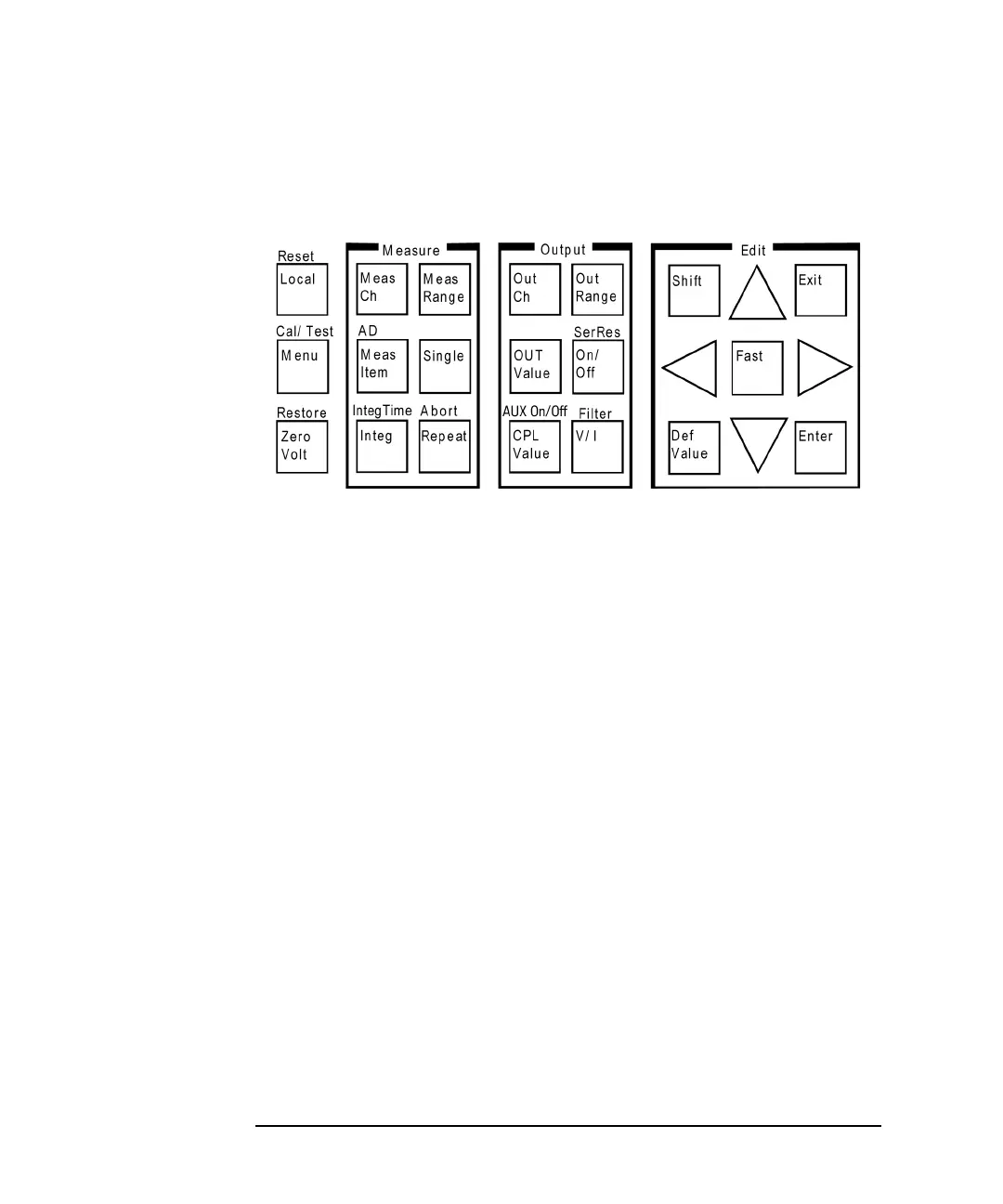

Output key group
The Output key group is used to set up the source condition and apply the source
output.
OutCh Selects the source channel effective for the data displayed in the Setup Data area.
Press the
OutCh
key repeatedly until the desired channel number appears in the S-ch
status area.
OUT Value Displays the source output setting (OUT) and the source compliance setting (CPL)
in the Setup Data area. Then the cursor appears on the last digit of the integral part
of the OUT value.
If the Output status indicator shows the source output ON status, the source channel
applies the OUT value. Then, if you change the OUT value, the source channel
changes the output value too.
To set the source output value, see “To Apply DC Current/Voltage” on page 5-16.
CPL Value Displays the source output setting (OUT) and the source compliance setting (CPL)
in the Setup Data area. Then the cursor appears on the last digit of the integral part
of the CPL value.
The CPL value is current for voltage output, or voltage for current output.
To set the compliance value, see “To Apply DC Current/Voltage” on page 5-16.
